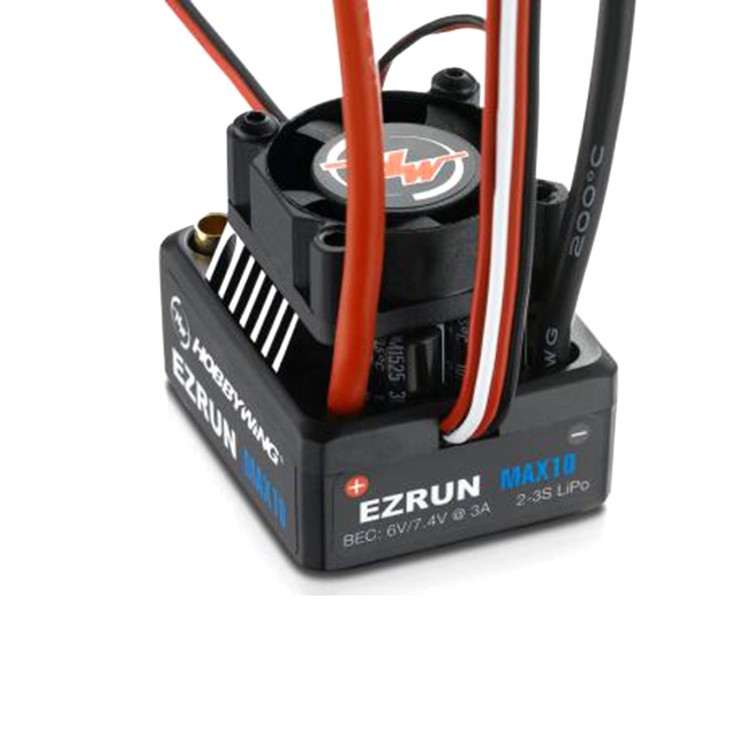

EzRun MAX10 Brushless Sensorless ESC Speed Controller for RC Car 2WD SCT Truck
Manual: Click here
Specifications:
- Product Name: EzRun MAX10
- Scale: 1/10th
- Brushed/Brushless: BL
- Sensored/Sensorless: SL
- Waterproof: Yes
- Cont./Peak Current: 60A/450A
- Input: 2-3S LiPo/6-9 Cells NiMH
- BEC Output: Switch Mode:6V/7.4V,3A
Wires & Connectors
- Input Wires: Red-14AWG-200mm*1/Black-14AWG-200mm*1
- Output Wires: Black-14AWG-200mm*3
- Input Connectors: No
- Output Connecotors: 3.5 Bullet Connectors (Female)
- (Note: All the wire length above is the original length not the length you see from the outside.)
Fan
- Size: 25.0x25.0x10.0mm
- Voltage Range: 5-7.4V
- Powered by: Powered by BEC
ESC Programing via:
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Supported
- WiFi Module: Supported
- Program Port: FAN/Program Port
Firmware
- Firmware Upgrade: Supported
Size & Weight
- Size: 39.4x32.8x23.1mm
- Weight: 67.8g
Applications
- Motors: SL BL Motors/SD BL Motors(only in SL mode)
- Vehicles: 1/10th Buggy, On-road, and Light-weight 2WD SCT, Truck and Monster Truck
- KV Rating/T Count: 2S LiPo:KV≤6000;3S LiPo:KV≤4000 (3652 Series of Motors)
Package list:
- 1 x ESC
