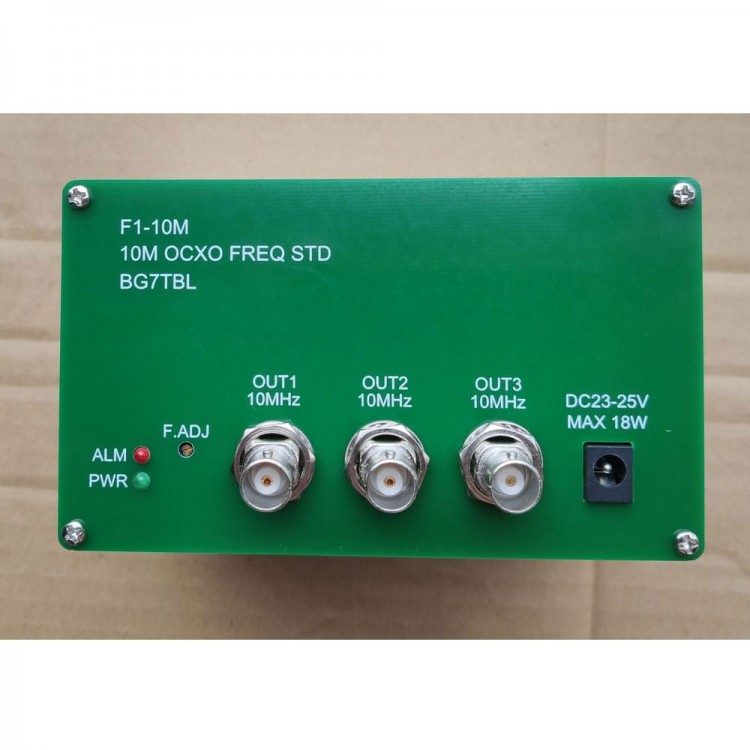

F1-10M 10M OCXO High Precision Frequency Standard 10MHz Reference With OCXO For HP/Agilent 10811
Description:
10M frequency reference adopts large volume and high-quality OCXO for HP/AGILENT 10811. It features low noise, stable operation, 3-way outputs.
Specifications:
- Item name: 10M OCXO frequency standard
- Model: F1-10M
- Power supply: DC23-25V, ≤18W
- 10M waveform, amplitude: sine wave, amplitude 12dBm+/-2dB
- Frequency adjustment range: about 10Hz
- Output interface: Power supply 5.5/2.1 socket. Signal output, BNC port
- Indicator lights: ALM: Warning light. When the frequency is not stable enough, the light is on. PWR: Power supply indicator. When it powers on, the light is on
- Dimensions: 127*75*120mm (including front connectors) (WxHxD)
- Net weight: 1500g (including adapter)
- Accessories: power adapter
Internal 10811-60158 OCXO. The following data are typical values:
- 24 hours after power-on, daily aging is less than 2.5E-10
- Short-term stability: 0.001S/1.5E-10, 0.01S/1.5E-11, 0.1S/5E-12, 1S/9.8E-13, 10S/5E-12, 100S/1E-11
- Phase noise: 1Hz, < -95dBc. 10Hz, < -125dBc. 100Hz, < -135dBc. 1000Hz, < -145dBc
Package Included:
- 1 x Set of Frequency Standard
