F2300AT New Version CNC Plasma Controller Digital CNC Controller for Squaresoft Digital Control

F2300AT New Version CNC Plasma Controller Digital CNC Controller for Squaresoft Digital Control

The difference between F2300 and F2300AT:
- F2300AT has built-in THC.

Description:

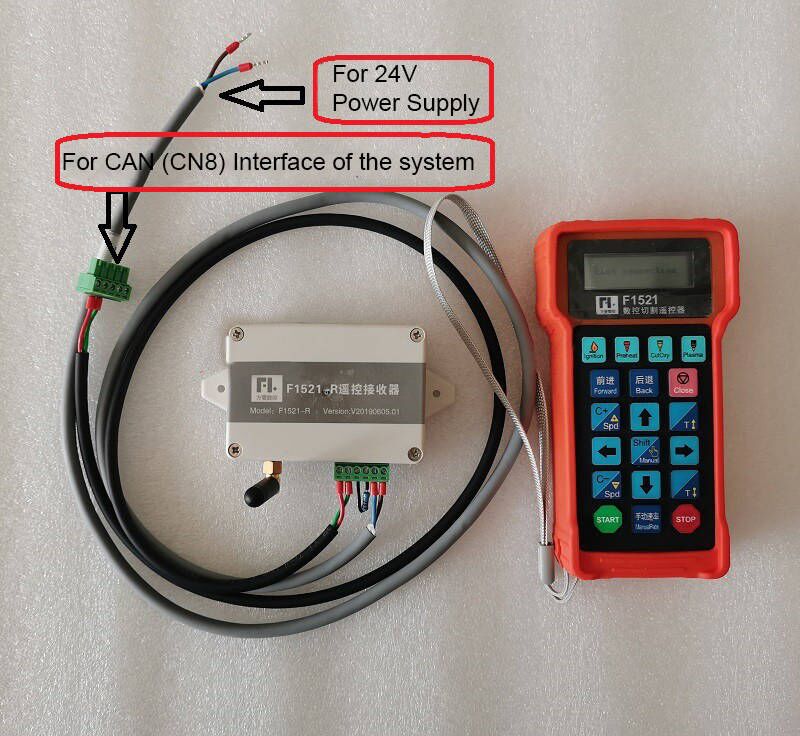

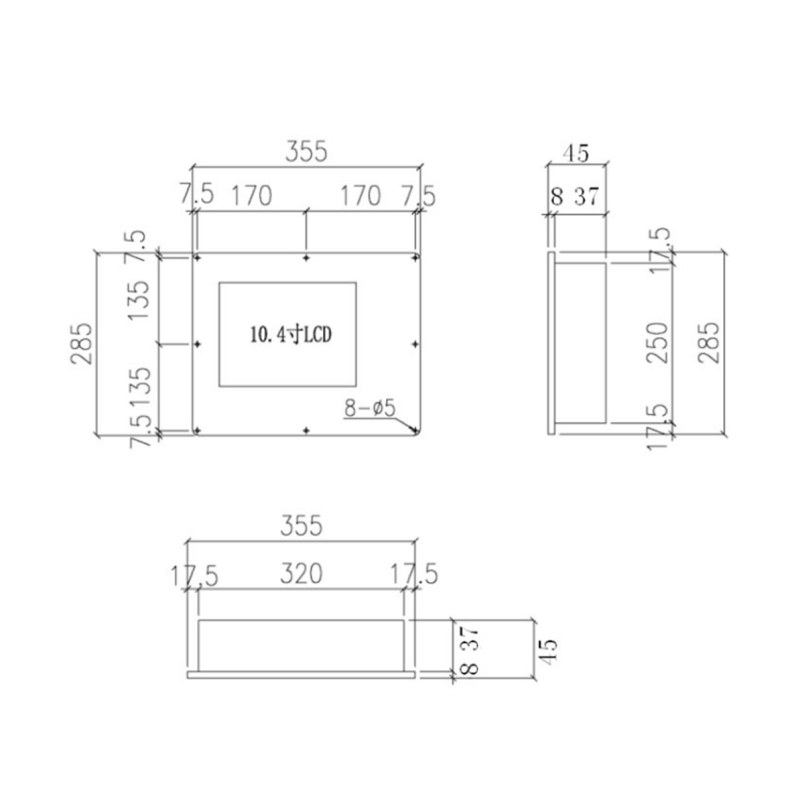

- The new system adds a CAN interface that supports 1521 remote controls and height adjusters, making wiring simple and convenient. The installation dimensions, interfaces, parameters, and functions of the new system are exactly the same as those of the old model, and can completely replace the old system.

Hardware configuration:
- Display: 10.4inch 800 x 600 high resolution, 16million color high brightness LCD
- Storage: 64M SDRAM
- User program space: 256M
- Master frequency: 400MHz system master frequency
- USB: USB1.1 preposition interface, support 16GB USB flash drive at least
- Keyboard: PCB filmed keyboard
- Case: Fully shielded steel structure, truly capable of preventing electromagnetic radiation, interference, and static electricity.

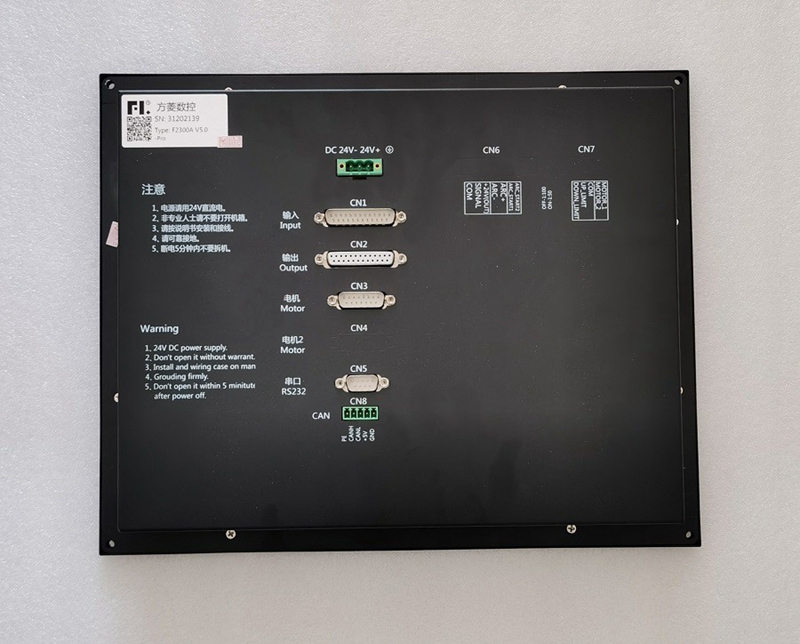

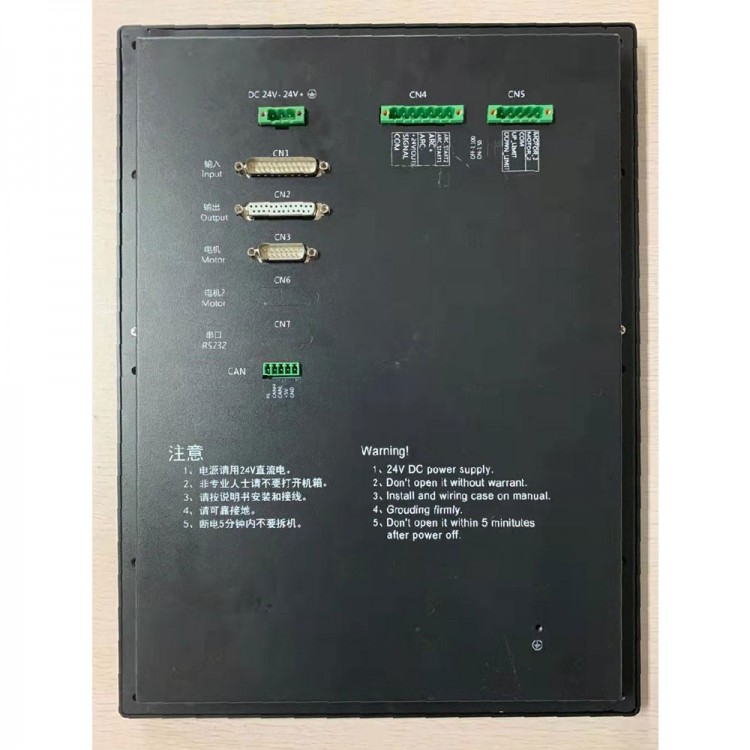

System interface:
- DB15 core male two-axis motor drive interface
- DB25 core female connector, 16 channels of photoelectric isolation output, with a maximum reverse current of 300mA
- DB25 core male connector, 16 channels of photoelectric isolation input, with a maximum input current of 300mA
- The front panel has a built-in USB interface to facilitate user transmission of cutting code

Specification:
- Main control MCU: industrial grade ARM9 chip
- Number of control axis: 2 axis linkage
- Maximum program lines: 150,000 lines
- Maximum single program: 4M
- File storage: electronic storage disk, 512M
- User program space: 256M
- Control accuracy: ±0.001mm
- Coordinate range: ± 99999.99mm
- Maximum pulse frequency: 250KHz; maximum running speed: 15m/min
- Time class resolution: 10ms
- System working power: DC +24V DC power input
- System working environment: -10°C ~ +55°C; relative humidity 0-95% non-condensing
- External interface: USB
- Keyboard: PCB filmed keyboard, PS/2 interface, for Omron button
- Case: Fully shielded steel structure, truly capable of preventing electromagnetic radiation, interference, and static electricity.

Features:
- Support oxygen gas, plasma, dusting, demonstration
- Up to 45 common graphics libraries
- Graphic scale, rotation, mirroring
- Graphic matrix, interleave, repeat arrangement
- According to the thickness of the steel plate, the speed can be automatically limited at the corner to effectively prevent over-burning
- Switch between metric and imperial
- Graphic steel plate correction
- Customizable coordinate system
- Customizable IO
- System and parameter backup, online upgrade
- Full Chinese/foreign language (English, Japanese, Russian, French, other customized languages) operation menu, one-key switch between Chinese and foreign languages.
- Line selection and number selection
- Support edge cutting, offset cutting
- With power-off, breakpoint protection memory function
- Dynamic/static processing graphics display, graphics zoom in/out, dynamic tracking of cutting points in zoomed

Package Included:
- 1 x F2300AT
