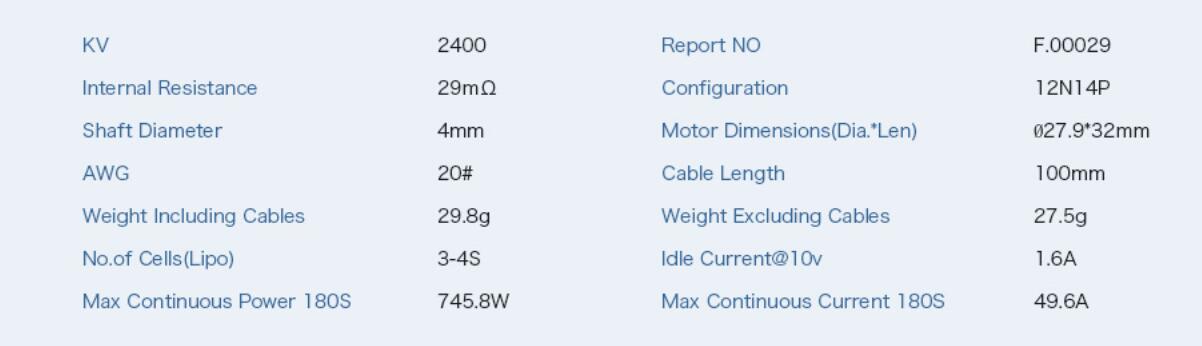

Specification:
- KV:2400
- Report No:F.00029
- Configuration(Dia*Len):12N14P

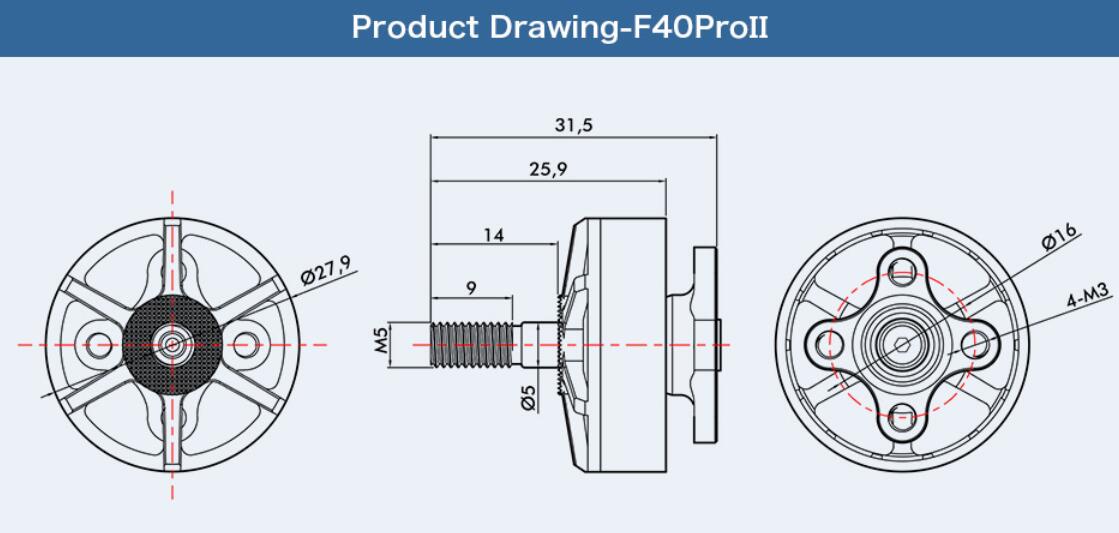

- Motor dimension:27.9x32mm
- Internal resistance:29mohm
- Shaft diameter:4mm
- AWG:20#
- Cable length:100mm
- No.of Cells(Lipo):3-4S
- Idle Current@10v:1.6A
- Max continuous power 180s:745.8W
- Max continuous current 180S:69.6A
- Weight including cable:29.8g

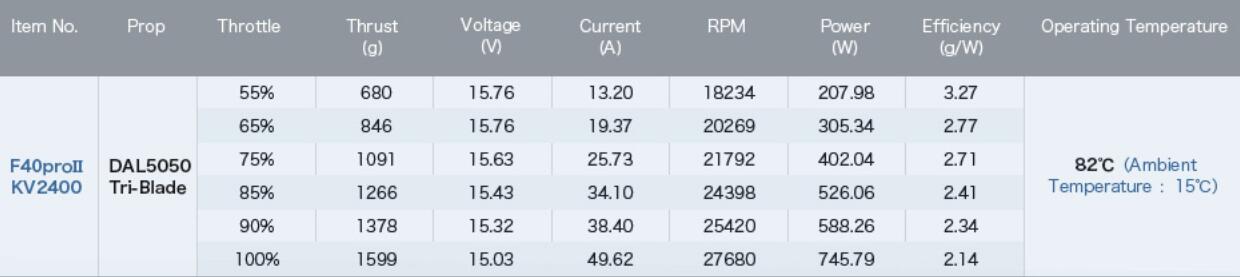

F40PROII KV2400:
- Max Thrust:1599g
- DAL5050 tri-blade
- F45A ESC
- Throttle:100%
- Current:49.62A
- Power:745.79W
- Vol.:15.03v
- RPM:27680RPM
- Power ratio:2.14g/W
82℃ after 100% throttle runing 1 min.(Ambient Temp.15℃)

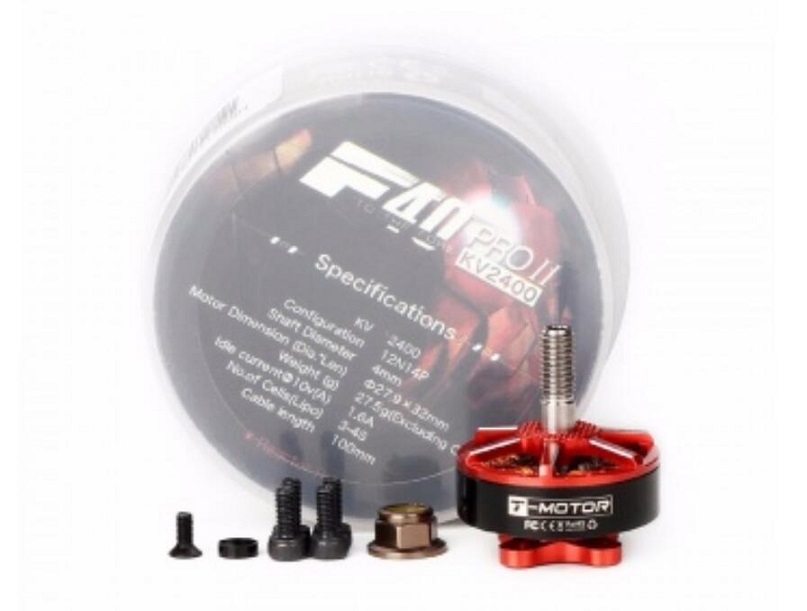

Package List:

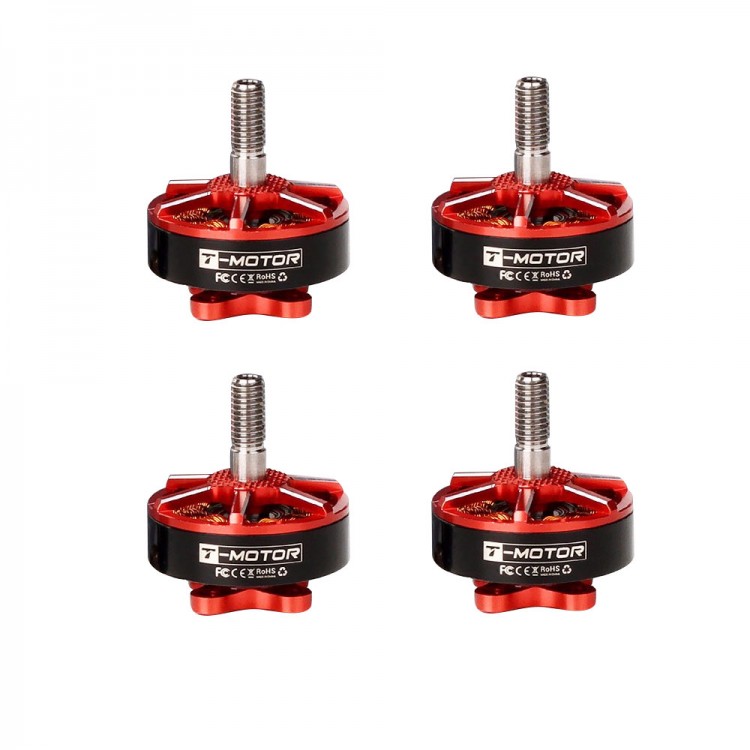

- 4 x Motor
- 1 x Parts bag
- 4 x M2.5*6mm Black sink hexangular screw
- 4 x Black washer
- 16 x M3*7mm Black cap head hexangular screw
- 4 x Aluminum flange self-locking nut
