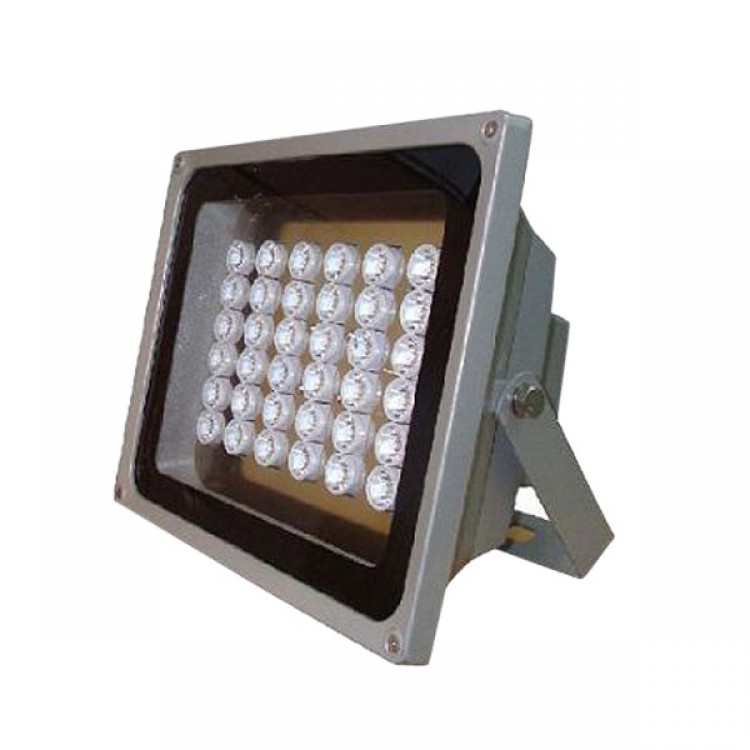

F42-60-A-W Illuminator 60 Degree 100M White Light Illuminator

F42-60-A-W Illuminator 60 Degree 100M White Light Illuminator
Description:
- Accurate constant circuit drive develops excellent performance of LED;
- Using high power LED, high efficacy and long service life
- Fill Light for night vision camera
- Indoor/Out door use
- Easy installation

Specification:
- Quantity of LED:42PCS 1W High Power LED
- Color Temperature : Cool white, warm white
- Luminous Flux :4200lm
- Power Factor:＞0.95
- Bean Angle : 60°（standard）, other angle optional
- Viewing Distance : 100m
- Day/night Switch :Auto
- Working Voltage  : AC110-220V/AC24V/DC12V
- Power consumption :56W
- Wire: If 12VDC/24VAC:45cm(1.4 ft.)
- Plug :AC110-220V (standard), other voltage optional
- Panel: Tempered glass panel
- Housing: Aluminum Die Casting Housing
- Bracket : Mount bracket
- Working temperature : -40°C TO +50°C
- Protection Level :IP65
- Color:Gray
- N.W :3.45KG
- G.W : 3.9KG
- Dimension : 285*248*155mm
- Packing Dimension :310*220*360mm

Model      Bean Angle   Viewing distance
F42/W15AG        15°          240m
F42/W30AG        30°          180m
F42/W45AG        45°          130m
F42/W60AG        60°          100m
F42/W90AG        90°           80m
F42/WC0AG       120°         50m
Actual viewing distance is depended on the performance of camera and lens
