FA-2 PLUS FA-2-30G 53220 Frequency Counter 11 Bit per Second 10MHz OCXO Frequency Meter

FA-2 PLUS FA-2-30G 53220 Frequency Counter 11 Bit per Second 10MHz OCXO Frequency Meter

Specification:

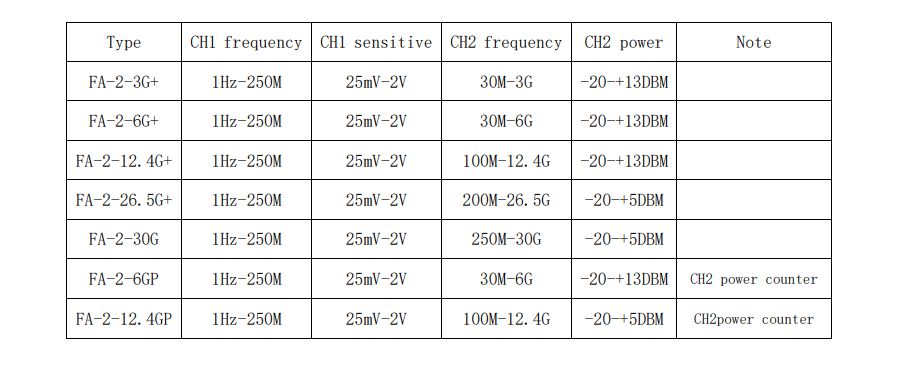

- Type: FA-2-30G PLUS
- CH1 frequency range: 1Hz-300MHz
- CH1 input impedance: 50 OHM/1M OHM
- CH1 input sensitive：50 OHM: 25mVrms-2Vrms
                    1MR:25mVrms-2Vrms
- CH1 frequency accuracy: 0.01S
             0.1s: 0.001Hz@10M
             1s: 0.0001Hz@10M
             10s: 0.00001Hz@10M
- CH1 test speed: 11 digit/second@10MHz
- CH1 power test range: -50DBM-+20DBM, 1M-550M@50 OHM
- CH1 power accuracy: 0.5DB@10MHz
- CH1 plug type: BNC
- CH2 frequency range: 30MHz-6GHz/200M-12.4G/200M-26.5G
- CH2 input impedance: 50 OHM
- CH2 frequency accuracy: 0.1s: 1Hz@1GHz
             1s: 0.01Hz@1GHz
             10s: 0.001Hz@1GHz
- CH2 input power range: -20dBM- +13dBm@0.5-5G, /-20DBM-+13DBM@0.2-10G
- CH1 plug type: SMA
- Gate time: 0.1S/1S/10S
- Inside frequency standard: 10MHz
- Inside frequency standard type: OCXO
- Inside frequency standard ageing: 0.5Hz
- Inside frequency output power: 4dBm
- Extern frequency input range: 0dBm to +20dBm
- Run mode: CH1 frequency
                        CH1 statis
                        CH2 frequency
                        CH2 statis

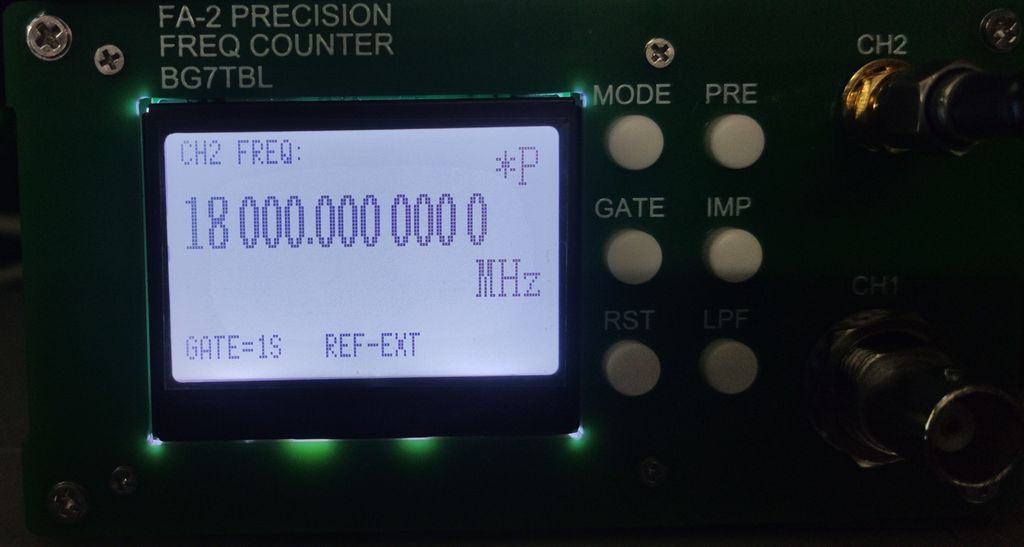

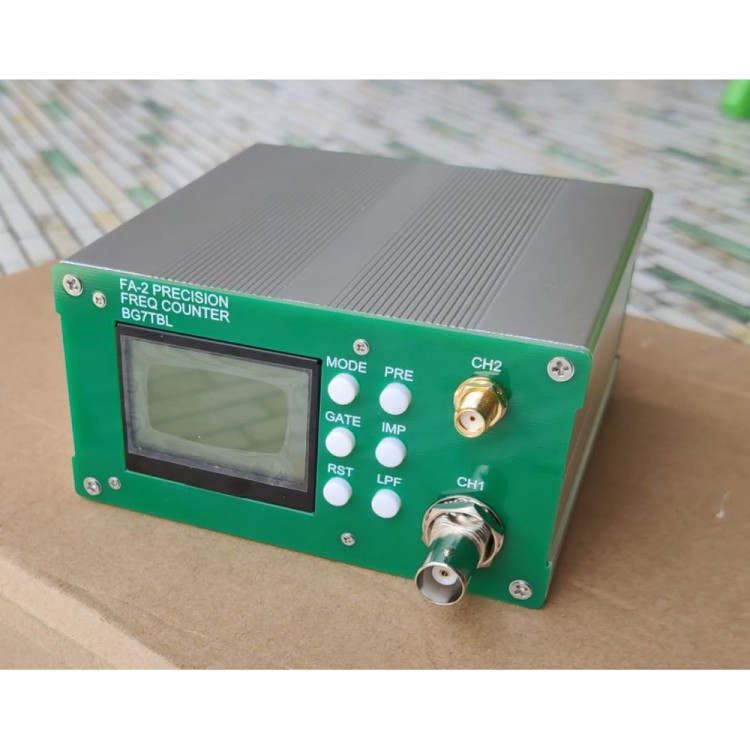

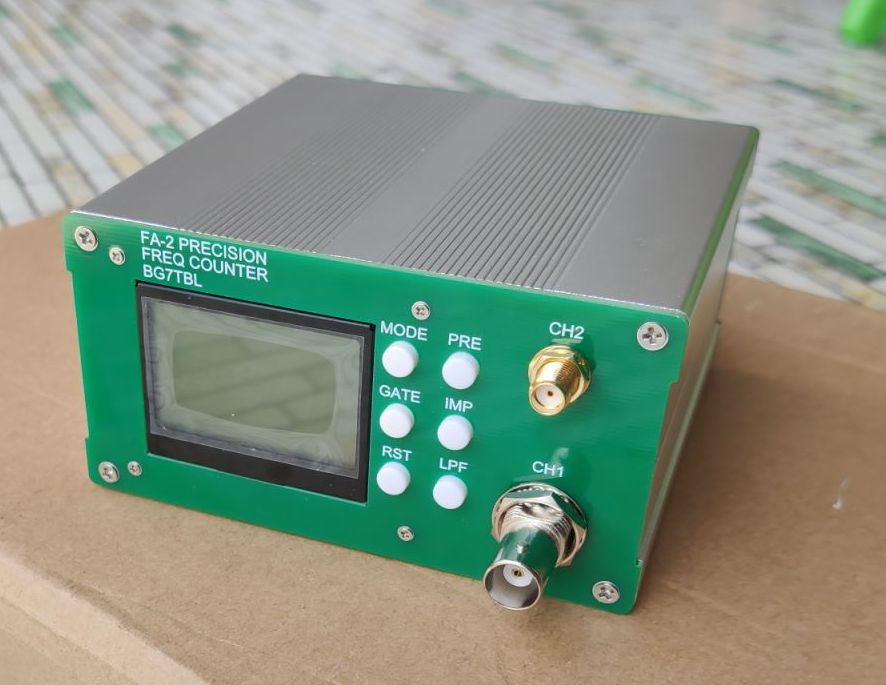

- Front panel: MODE, change mode
                         GATE: change gate time.
                         RST: restart test
PRE: preset in power up
IMP: CH1 50R/1MR select
LPF: CH1 LPF ON/OFF
          CH1: channel 1 input
          CH2: channel 2 input

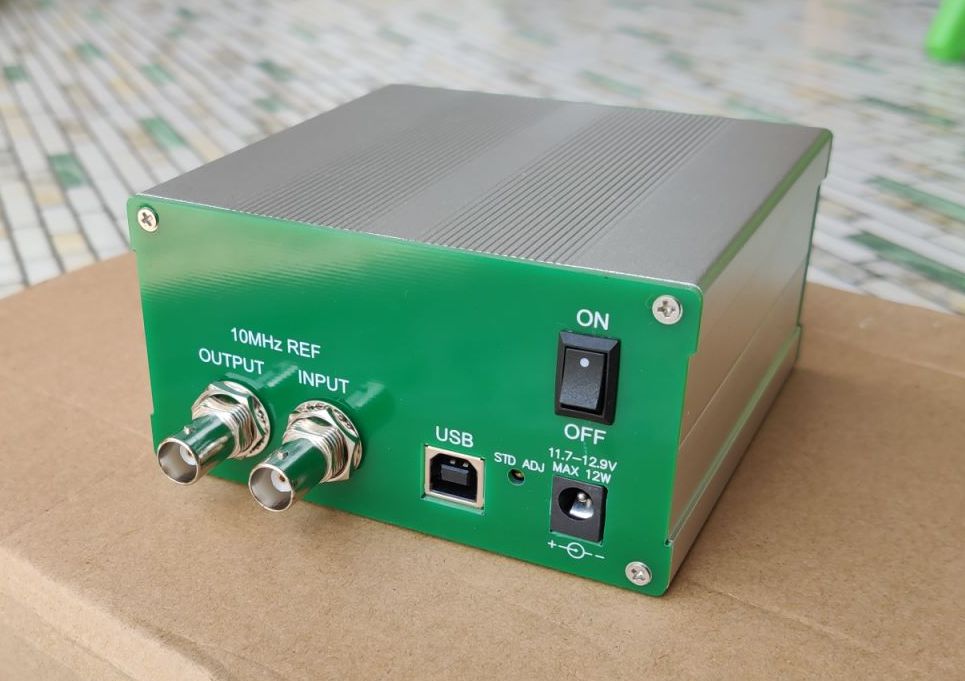

- Rear panel: 10M REF INPUT: extern 10M input
            10M REF OUTPU: 10M output
            USB: USB port
            STD ADJ: inside OCXO frequency adjust
            power switch
            DC plug
- Statis mode data type: average, max, min, p-p
- Power: DC11.7-12.5V
  Star: less than 0.6A
  Stabilize: less than 0.4A
- Size: L x H x D=106 x 55 x 105mm
- Weight: 350g

Package Included:
- 1 x FA-2 Frequency Counter
- 1 x DC12V adapter

Note:
- Battery is not included.
