FA-3-3G Frequency Counter 1Hz-3GHz Frequency Meter 11Bit/Sec FREQ COUNTER of High Speed & Accuracy

FA-3-3G Frequency Counter 1Hz-3GHz Frequency Meter 11Bit/Sec FREQ COUNTER of High Speed & Accuracy

Specifications:
- Type: FA-3-3G
- CH1 frequency range: 1Hz-300MHz
- CH1 input impedance: 50Ω/1MΩ
- CH1 input reference sensitivity: 50Ω: 25mVRMS-2VRMS; 1MΩ: 25mVRMS-10VRMS
- CH1 frequency accuracy: 0.1-second gate: 0.001Hz at 10M; 1-second gate: 0.0001Hz at 10M; 10-second gate: 0.00001Hz at 10M
- CH1 measurement speed: 11 bits/sec at 10M
- CH1 power test range: -50DBM to +20DBM, 1M-550M at 50 OHM
- CH1 power measurement accuracy: 0.5DB at 10MHz
- CH1 interface type: BNC
- CH2 frequency range: 30MHz-3GHz
- CH2 input impedance: 50 OHM
- CH2 frequency accuracy: 0.1-second gate: 1Hz at 1GHz; 1-second gate: 0.01Hz at 1GHz; 10-second gate: 0.001Hz at 1GHz
- CH2 interface type: SMA
- Gate time: 0.1 second/1 second/10 second
- Internal reference frequency: 10MHz
- Internal reference type: OCXO
- Internal base year aging: 0.5Hz
- Internal reference output port power: 4dBm
- External reference input power range: 0dBm to +20DBM
- Panel screen: 3.2 inches, 128*64pixel
- Operation modes: CH1 frequency measurement mode, CH1 statistical mode, CH2 frequency measurement mode, CH2 statistical mode
- Statistics mode data types: average, maximum, minimum, peak-to-peak value
- Power supply: 11.7-12.5V, Start: <0.6A, Stable: <0.4A
- Size: 127*75*143mm (L*H*D)
- Net weight: 750g

Front Panel Functions:
- MODE: operating mode conversion
- GATE: Gate time selection
- RST: restart measurement
- IMP: CH1 input impedance selection
- LPF: Whether CH1 opens 100K LPF
- CH1: Channel 1 input
- CH2: Channel 2 input

Rear Panel Functions:
- 10M REF INPUT: external 10M reference input
- 10M REF OUTPUT: 10M reference output
- USB: USB port
- STD ADJ: internal OCXO frequency fine-tuning
- ON/OFF: Switch
- With a DC socket

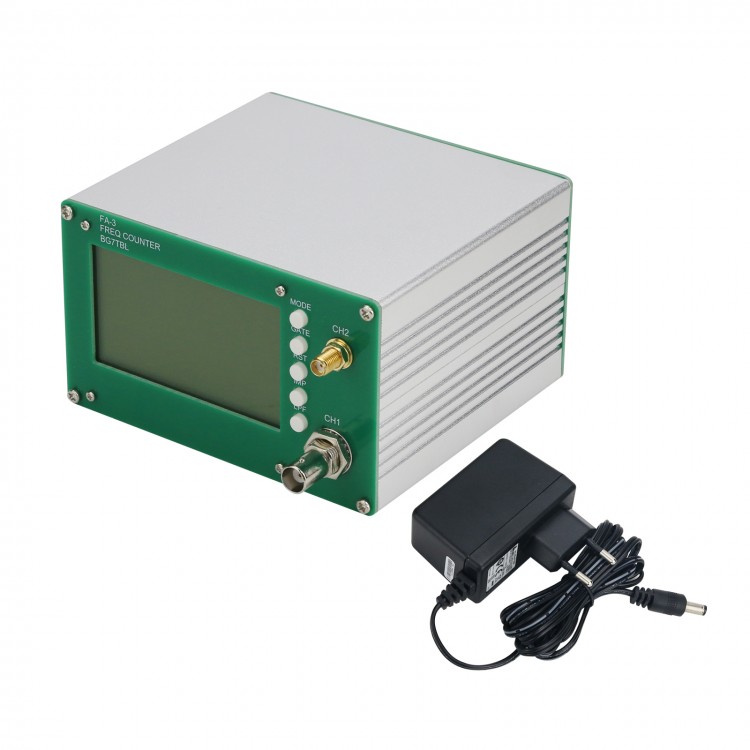

Package Included:
- 1 x Frequency Meter
- 1 x DC12V Power Adapter
