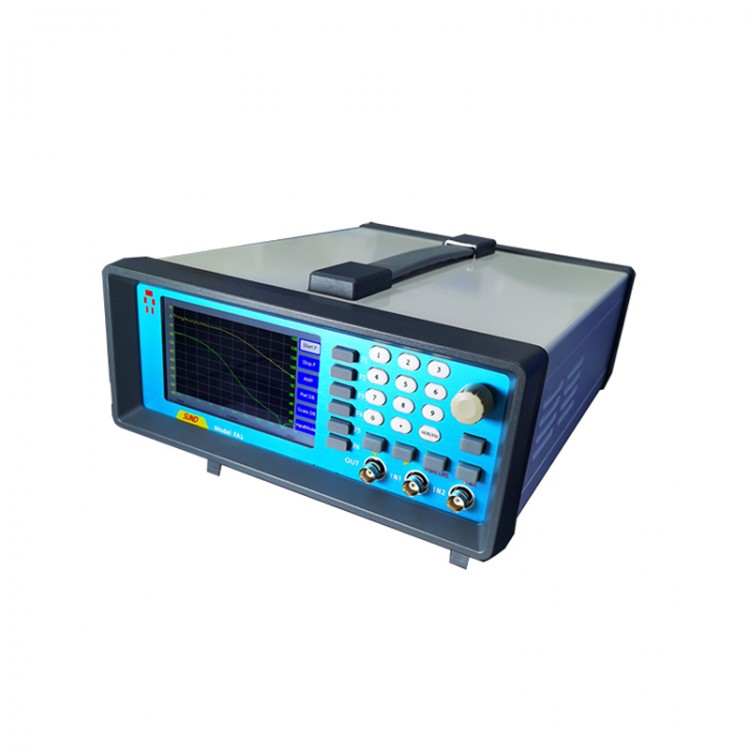

FA1 2-In-1 Waveform Generator Sweep Generator Low Frequency Tester Max Detection Frequency 440MHz

FA1 2-In-1 Waveform Generator Sweep Generator Low Frequency Tester Max Detection Frequency 440MHz

Description:
The easy-to-use waveform generator can measure input and output amplitude while acting as a signal generator. It calculates signal gain and attenuation. In the case of using an external excitation source, its maximum detection frequency is up to 440MHz.

Spectrum analyzers on the market are mainly used for radio frequency measurement, and their operating frequency is relatively high, generally above 9KHz. The working frequency of this instrument is as low as 100Hz, thus it is an ideal choice for you to analyze low frequency signals.

Features:
- 2 in 1: Amplitude-frequency characteristic analyzer and waveform generator
- One-key switch to waveform generator
- Simultaneously display the amplitude-frequency characteristic curve and the phase-frequency characteristic curve
- Frequency down to 100Hz
- Optional input method
- Support sweep frequency output and point frequency output
- Large dynamic range up to 95DB
- Exquisite metal paint chassis
- Simple interface easy to operate

Main Application Areas:
- Low pass filter
- High pass filter
- Bandpass filter
- For amplifier interpretation and amplitude-frequency characteristics measurement

Technical Index:
- Model: FA1
- Input range: -91DBV to 4DBV
- Dynamic Range: 95DB
- Scanning frequency: 100Hz~10MHz
- Gain Error: +/-1DB
- Minimum frequency resolution: 1Hz
- Scanning time: 10 seconds maximum at full frequency
- Frequency points: 640
- Output voltage: maximum 2000mVPP
- Signal source frequency: 0Hz~10MHz
- Signal source waveform: sine wave triangle wave square wave
- Amplitude adjustment steps: 1024
- Maximum detection frequency: 440MHz (using external excitation source)
- Power supply: 220V AC
- Power consumption: 5W
- Dimensions: 300 x 250 x 100mm/11.8 x 9.8 x 3.9"
- Weight: 3.5Kg/7.7Lb

Package Included:
- 1 x Waveform Generator
