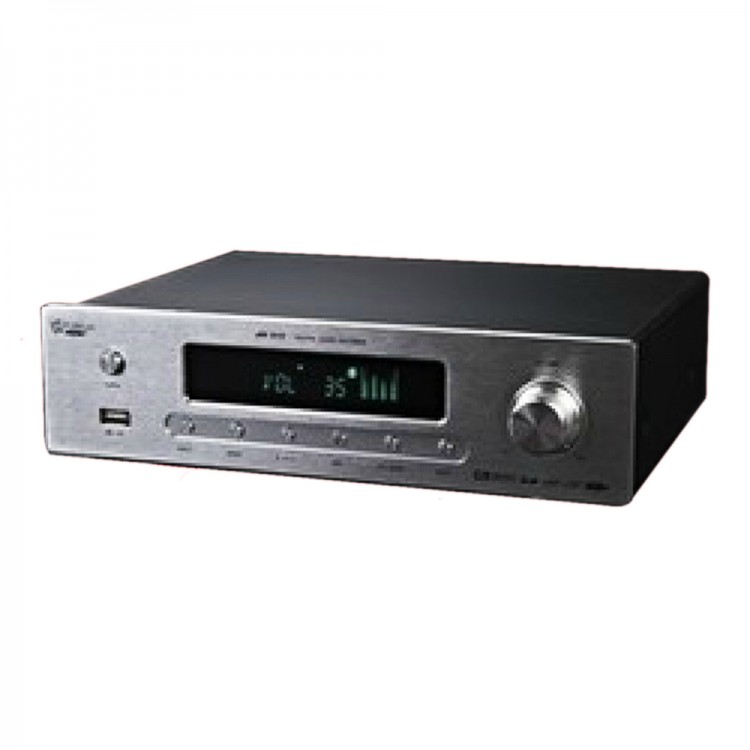

Fanmusic HF-D1B AC3 DTS 5.1 DIGIT DAC & USB & Read Memo Audio Decoder Sound Card

Fanmusic HF-D1B AC3 DTS 5.1 DIGIT DAC & USB & Read Memo Audio Decoder Sound Card

Description
Fanmusic HF-D1B  are cheap, the most complete, best quality, best materials used a full-featured digital audio decoder, chassis panel is 6MM brushed, steel is the metal used 1MM in the output stage to do the relay ON delay, due to the startup and shutdown, there will be the impact of sound, long-term stability in order to ensure the machine work, using up to 8 group, regulator voltage transformer with a shield by EI transformers, panels with aluminum car keys system, high-end fashion, using as a custom NOVER capacitor filter capacitor (high-frequency low-impedance series), the other electrolytic capacitors for Nikon FW series. Renesas high-end 6-channel volume IC, the output with the former level and low-pass filter, with the servo power supply, 4 JRC5532. Direct election MP3 songs can be Display Play time, the current track, the total tracks and so on. Special custom VFD screen can display all the information, but also the frequency with 10 kinds of general display mode, in particular, set a little back of the chassis preamp switch , are free to choose whether to take preamplifier.

Features:
1. Dual fiber, dual coaxial input, so that you connected to multiple audio devices more convenient and free.
2. Professional usb-pc input, direct access to the computer as 5.1 sound card (which can be played directly on your computer DTS ac-3 PCM stereo format music and video), so that you save to buy a large expenditure of 5.1 sound card (DTS ac -3 install the driver when the model output).
3. Two 2.0 inputs, can be simulated by internal conversion into 5.1 surround output, the same input are not the same effect.
5. A set of analog 5.1 outputs, after the direct access to amp (but do not pre-class), machine equipped with low-pass filter, you can use passive subwoofer.
7. High-end brushed aluminum panel 6mm, stylish, high-grade.
8. 1.0MM hardened iron, high standard painting process, to ensure perfect quality.
9. Complete set of high quality accessories, peripherals, even without your excellent link.
10. Full function remote control, key bits of carefully arranged for you various operating handy.
11. Each channel independently adjust the volume so that the machine or put your maximum matching.
12. Off memory, save your personal settings, eliminating duplication, let him the time for you to enjoy music more fully.
13. Remote Control 5.1 out ad hoc testing feature that lets you more accurately and quickly identify the sound field position.
14.10 kinds of heart spectrum display mode switch, so that the original monotonous display more personality.
15. Can provide gentle, clubs, etc. 8 through digital audio signal processing DSP effects, let the music more in line with your request.
16. Machine Dimensions: length 280, High 70, W 225

Tech Specifications:
- S/N ratio 122db
- Stereo separate degree 80db(1KHZ)
- Frequency response 0db/-2db(20HZ-20KHZ)
- Noise output frequency 100uV
- Simulate output frequency 2.2V
- Voltage: ～220V/50Hz±10％
- Input port:
  2 digit optical fibre signal input
  2 digit coaxial signal input
  2 RCA analog stereo signal input
- Output port 6 RCA output
- Demention: 280(L)*225(W)*70(H)mm
- Weight: 3.8KG

Package included:
- 1 x Fanmusic HF-D1B
- 1 x Remote controller
- 1 x Audio cable
- 1 x Optical fiber line
- 1 x USB cable
- 1 x FM line
- 1 x Manual
