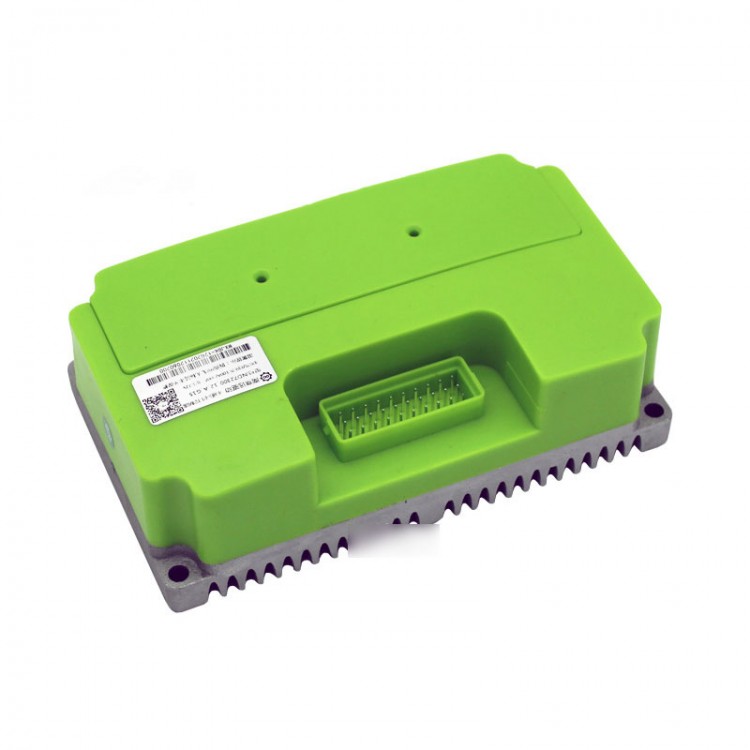

Fardriver ND72300 100A/300A Motor Controller Sine Wave Motor Controller (without Bluetooth) for EV
Description:
The ND series Hall one-line pass-through controller is a high-end, high-power permanent magnet synchronous motor controller, offering the advantages of high quality, high efficiency, and intelligence. It is suitable for vehicle applications of various Hall motors. It is suitable for middle and high speed motorcycles with in-wheel motors, mid-mounted motors, and high-end electric tricycles. Using high-quality fully imported MOSFET core, full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.
Rich Software Parameter Configuration:
* Monitor and configure the controller through a visual computer interface, with online upgrade capability.
* Adjust the current at different speeds online.
* Set the maximum forward and reverse speeds, as well as the economic speed.
* Configure the overall bus current and phase current.
* Set the accelerator pedal threshold to adjust the pedal's response sensitivity.
Perfect Protection:
* Monitors working voltage, current, temperature, motor, gear, accelerator pedal, brake, etc.
* Ensures the safety of vehicle driving control.
Specifications:
* Model: ND72300
* Operating voltage: 72V
* Rated power: 4000W
* Type: Brushless electric vehicle controller
Package Included:
* 1 x Motor controller
Packaging Details:
* Weight: 1.3kg
Note:
- Items in green, red or black will be delivered at random. Thank you for your understanding!
