Fatshark Super HAD CCD 420TVL CCD PilotCAM V2 FPV Camera Fat Shark NTSC

Availability: In stock, usually dispatched in 1 business day

  • Price:$79.71
  • Price in reward points: 797 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $78.12 $76.52 $74.13 $70.94 Contact US
Quantity:
Buy it now Add cart

You might like

Fatshark Super HAD CCD 700TVL CCD PilotCAM V2 FPV Camera Fat Shark NTSC

Fatshark Super HAD CCD 700TVL CCD PilotCAM V2 FPV Camera Fat Shark NTSC

$99.86

(0)
Fatshark HAD CCD 420TVL CCD PilotCAM V2 FPV PAL Camera Fat Shark Fatshark

Fatshark HAD CCD 420TVL CCD PilotCAM V2 FPV PAL Camera Fat Shark Fatshark

$79.71

(0)
High Quality 1/3 Inch 3.6mm Lens Fatshark 700TVL CMOS Fixed Mount FPV Camera NTSC PAL for Multicopter

High Quality 1/3 Inch 3.6mm Lens Fatshark 700TVL CMOS Fixed Mount FPV Camera NTSC PAL for Multicopter

$63.16

(0)
Fatshark Super HAD CCD 700TVL CCD PilotCAM V2 FPV Camera Fat Shark PAL

Fatshark Super HAD CCD 700TVL CCD PilotCAM V2 FPV Camera Fat Shark PAL

$99.86

(0)
1/3" SONY 420TVL,original LSI Super HAD Professional Color CCD PAL Board with Cable and Button

1/3" SONY 420TVL,original LSI Super HAD Professional Color CCD PAL Board with Cable and Button

$44.76

(0)
Walkera WK-DEVO-F7 DEVO F7 FPV Set 5.8G Real Time Image Transmittion Aerial w/ TX5803 & RX701 Receiver

Walkera WK-DEVO-F7 DEVO F7 FPV Set 5.8G Real Time Image Transmittion Aerial w/ TX5803 & RX701 Receiver

$293.90

(0)
1/3" SONY 420TVL, LSI HAD Wide Dynamic Professional Color CCD PAL Board

1/3" SONY 420TVL, LSI HAD Wide Dynamic Professional Color CCD PAL Board

$54.14

(0)
Feelworld FPV-1032 FPV Monitor 10.1'' HD 5.8GHz 32CH Receiver Video Wireless Monitor Built-in Battery No DVR

Feelworld FPV-1032 FPV Monitor 10.1'' HD 5.8GHz 32CH Receiver Video Wireless Monitor Built-in Battery No DVR

$231.50

(0)

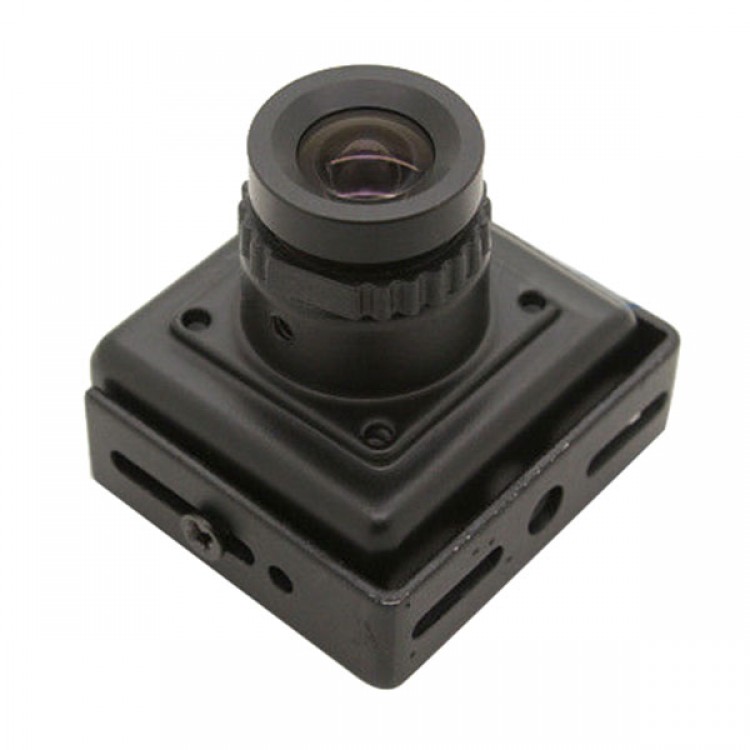

Fatshark Super HAD CCD 420TVL CCD PilotCAM V2 FPV Camera Fat Shark NTSC


 Features:
- Improving clarity, light handling when facing the sun as well as increased low light performance.
- The new V2 camera shares the same cable as the PilotHD and 600TVL CMOS.
- The 25mm format makes this a small and lightweight camera perfect for pan and tilt systems.
- Note: This is a 5V camera and will not work with direct 3 cell voltage

Description:
- Brand Name:Fat Shark
- Item Name:420TVL CCD PilotCAM V2  NTSC Camera
- Type: Color
- Signal System: PAL
- Pick Up Device: 1/3” SONY Super-HAD CCD
- Picture Elements: 590(H) X 582(V)/726(H) X 582(V)
- Resolution: 420TV Lines
- Min Illumination: 0.01 Lux/ 0.08 Lux
- Scanning System: 2:1 Interlace
- Sync System: Internal
- S/N Ratio: More than 55dB
- Gain Control: Auto (FPV tuned)
- White Balance : Auto (FPV tuned)
- Lens: 3.6mm (no IR)
- Video output: 1.0V p-p (75 BNC)
- Power Supply: 3.3 – 5V DC
- Power Consumption: 100mA/ 120mA
- Dimensions: 27 X 25 X 13 mm (+14mm lens extrude)
- Weight : 31g
- Operating Temp: -10 to 50C
