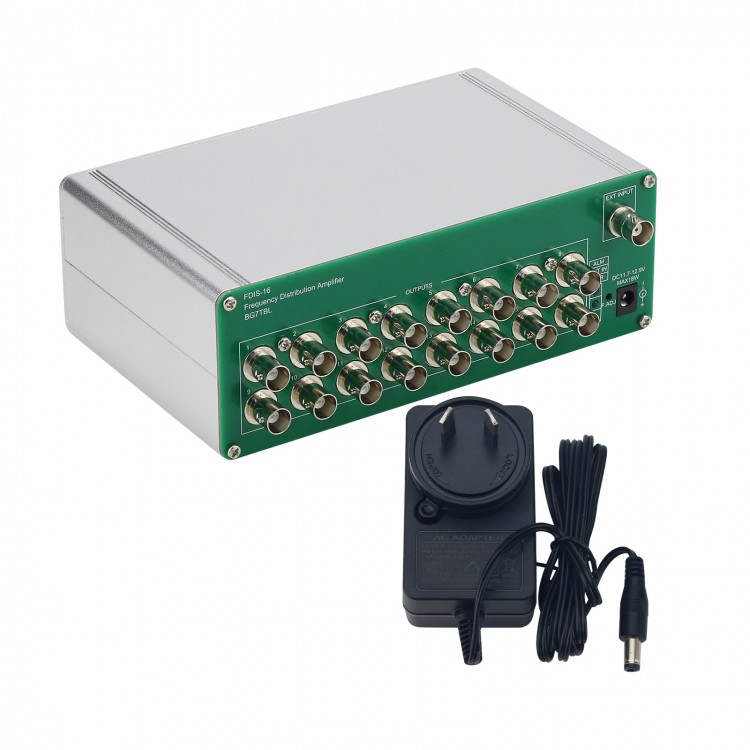

FDIS-16 Frequency Distribution Amplifier with 16 Ports to Output Square Wave TTL Level (BNC-3.3Vpp)

Availability: In stock, usually dispatched in 1 business day

  • Price:$167.09
  • Price in reward points: 1671 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $163.75 $160.41 $155.39 $148.71 Contact US
Quantity:

FDIS-16 Frequency Distribution Amplifier with 16 Ports to Output Square Wave TTL Level (BNC-3.3Vpp)

Features:

- 1 input and 16 outputs
- With an input signal indicator. Automatic switching of internal and external signals
- Optional interface: BNC and SMA
- Output multiple-channel signals
- Wide frequency range, low noise and small phase difference of output signal
- Long-term continuous work featuring low power consumption, high reliability, and stable performance

Technical Parameters:

- Model: FDIS-16
- Item name: frequency distribution amplifier
- Power supply: DC11.7-12.9V, maximum 18W. 5.5/2.1 socket
- Input: AC coupling or DC coupling,and input impedance 25kΩ; AC coupling, 0.5Hz-200MHz, 0.1Vpp-5Vpp; DC coupling, DC-200MHz, with DC component, 2.5-5Vpp
- Output: 16 channels, square wave, TTL level, and 3.3Vpp or 5Vpp (optional)
- Input and output interface: BNC or SMA (optional)
- Working temperature: -20℃ to +50℃
- Relative humidity: ≤85% (45℃)
- Storage temperature: -30℃ to +70℃
- Accessories: AC110-220V-DC12V/1.0A power adapter
- Dimensions: 178 x 120 x 62mm/7 x 4.7 x 2.4" (including sizes of connectors)
- Net weight: 800G/1.8LB
- Optional: Built-in 10M OCXO

Indicators on the Front Panel:

- PWR: power indicator. It will turn on when the amplifier is powered on. It will turn off when the device is powered off.
- EXT IN: Indication of external input signal. The indicator will stay on all the time when the input signal is over 0.5Hz; the indicator will flash or turn off when it is lower than 0.5Hz.
- ALM: Alarm indicator. The indicator will stay on all the time when the frequency of output signal is bellow 0.5Hz. And the indicator will flash or turn off when it is over 0.5Hz.

Package Included:
- 1 x Frequency Distribution Amplifier
