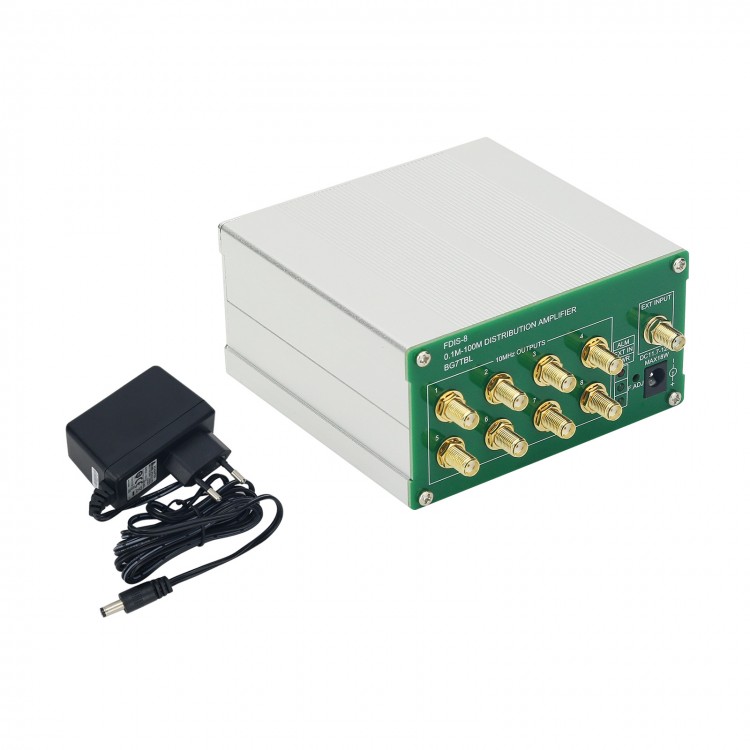

FDIS-8 Clock Signal 0.1M-100M Frequency Divider Distribution Amplifier -SMA Port

Availability: In stock, usually dispatched in 1 business day

  • Price:$91.66
  • Price in reward points: 917 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $89.83 $87.99 $85.24 $81.58 Contact US
Quantity:

FDIS-8 Clock Signal 0.1M-100M Frequency Divider Distribution Amplifier -SMA Port


Description:

- 1-channel input and 8-channel output, various waveforms can be input, and the output maintains the input waveform
- BNC or SMA interface is optional
- Wide frequency range, low noise and small phase difference of output signal
- Low power consumption, high reliability, long-term continuous and stable operation

Specification:
- Name: clock distributor, frequency distribution amplifier
- Power supply: dc11.7-12.9v, normal maximum 18W, 5.5/2.1 socket
- Input: AC, input impedance 50 Ω, 0.1mhz-100mhz, 0.01vpp-3vpp, minimum input 120dbm
- Output: 8 channels, AC, frequency and waveform input are consistent
- Input / output interface: BNC or SMA
- Indicator light: PWR, power indicator, on when powered on, no light means no power supply
- Ext in: external input signal indication, input signal strength is greater than 10dBm, the light is always on, otherwise it is off power adapter:ac110-220v-dc12v/1a
- Size: W*H*L=100*55*120
- Weight:600g
