FDQ1 Digital Capacitor Discharger AC/DC Switching Power Supply Circuit Board Repair Testing Tool
Features:
1. The digital capacitor discharger is designed for discharging capacitors (< 1000V) of electric appliances like household appliances, digital cameras, mobile phones, car, TV etc. in maintenance.
2. Designed for safety in maintenance operations, discharging high direct current to a safe range to ensure that there is no risk of electric shock. It avoid electric shock and short circuit effectively.
3. The voltmeter can display the voltage change during discharge. When the voltmeter is off, the discharge is completed.
4. No polarity in discharge.
5. It could use as a digital voltmeter (10-500V) to test the DC/AC voltage.
Product Parameters:

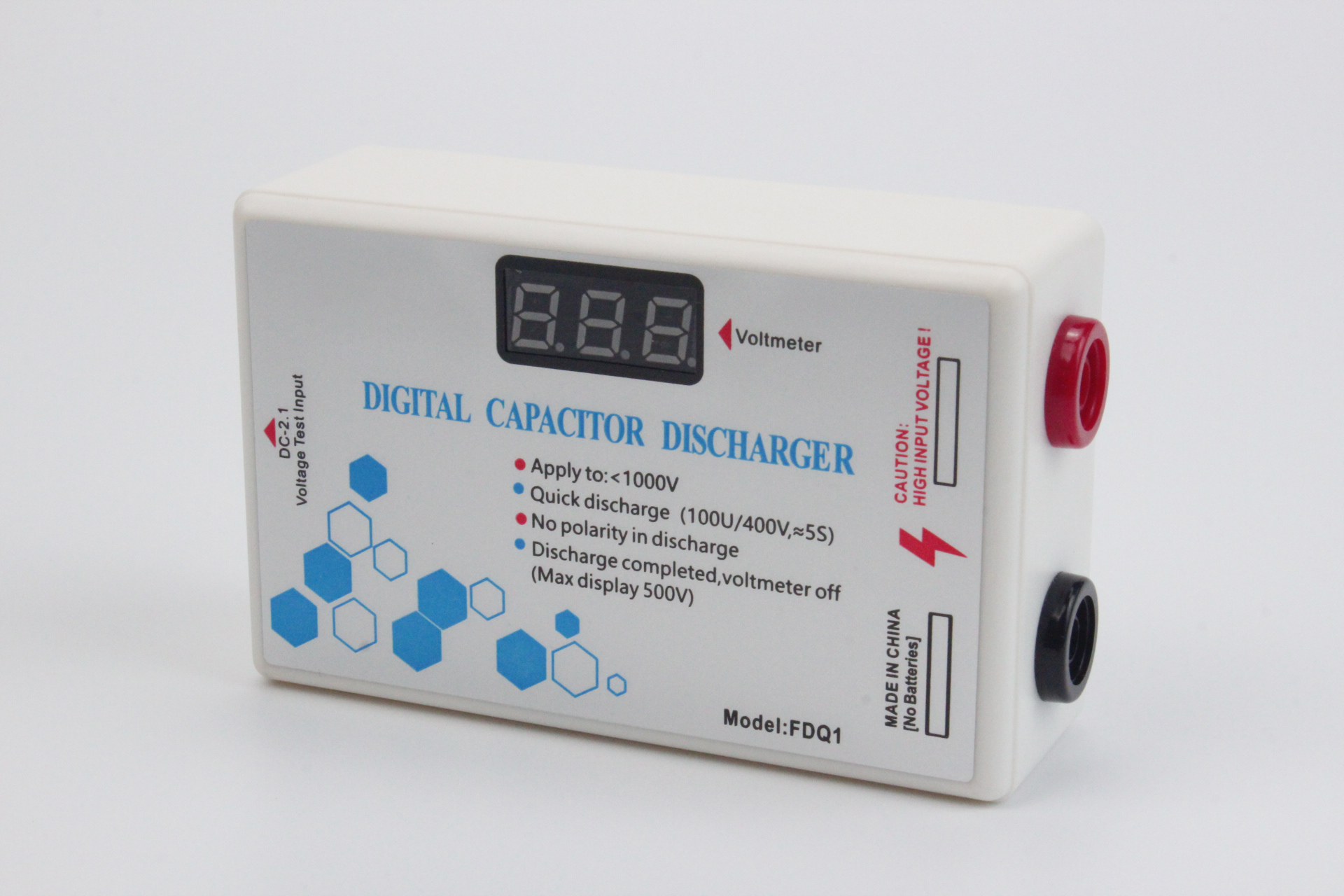

- Model: FDQ1
- Apply to: < 1000V
- Cut-off discharge voltage: < 4V /1.5V
- Quick Discharge: 100U/400V, ≈5S
- Tester Size: 95 x 58 x 31mm/3.7 x 2.3 x 1.2"

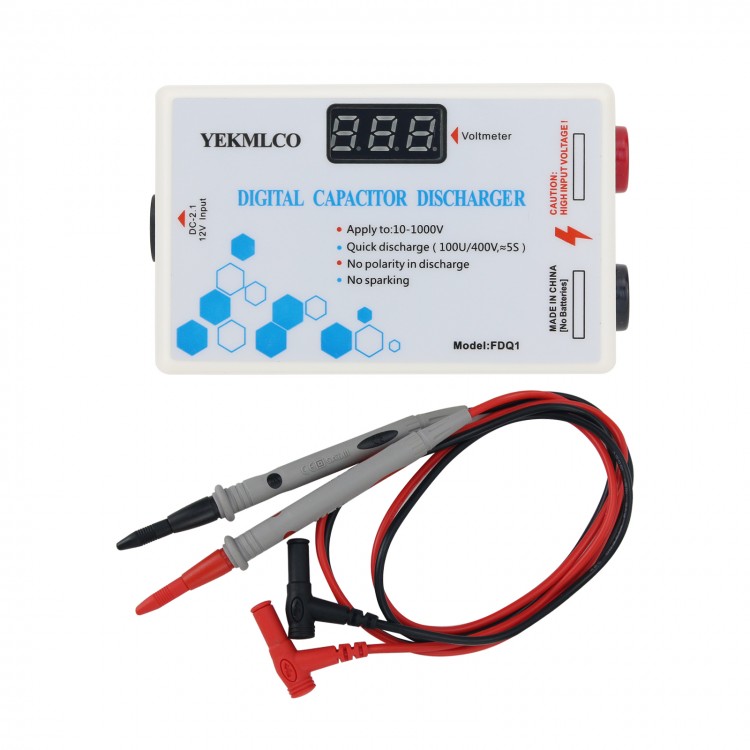

Package Included:
- 1 x Main Unit
- 2 x Test Leads
- 1 x User Manual
Function Instruction:
A. The digital capacitor discharger is designed for discharge the capacitors (< 1000V) of electric appliances like household appliances, digital cameras, mobile phones, car, TV etc. in maintenance.
B. Designed for safety in maintenance operations, discharging high direct current to a safe range to ensure that there is no risk of electric shock. It avoid electric shock and short circuit effectively.
C. The voltmeter can display the voltage change during discharge. When the voltmeter is off, the discharge is completed.
D. No polarity in discharge.

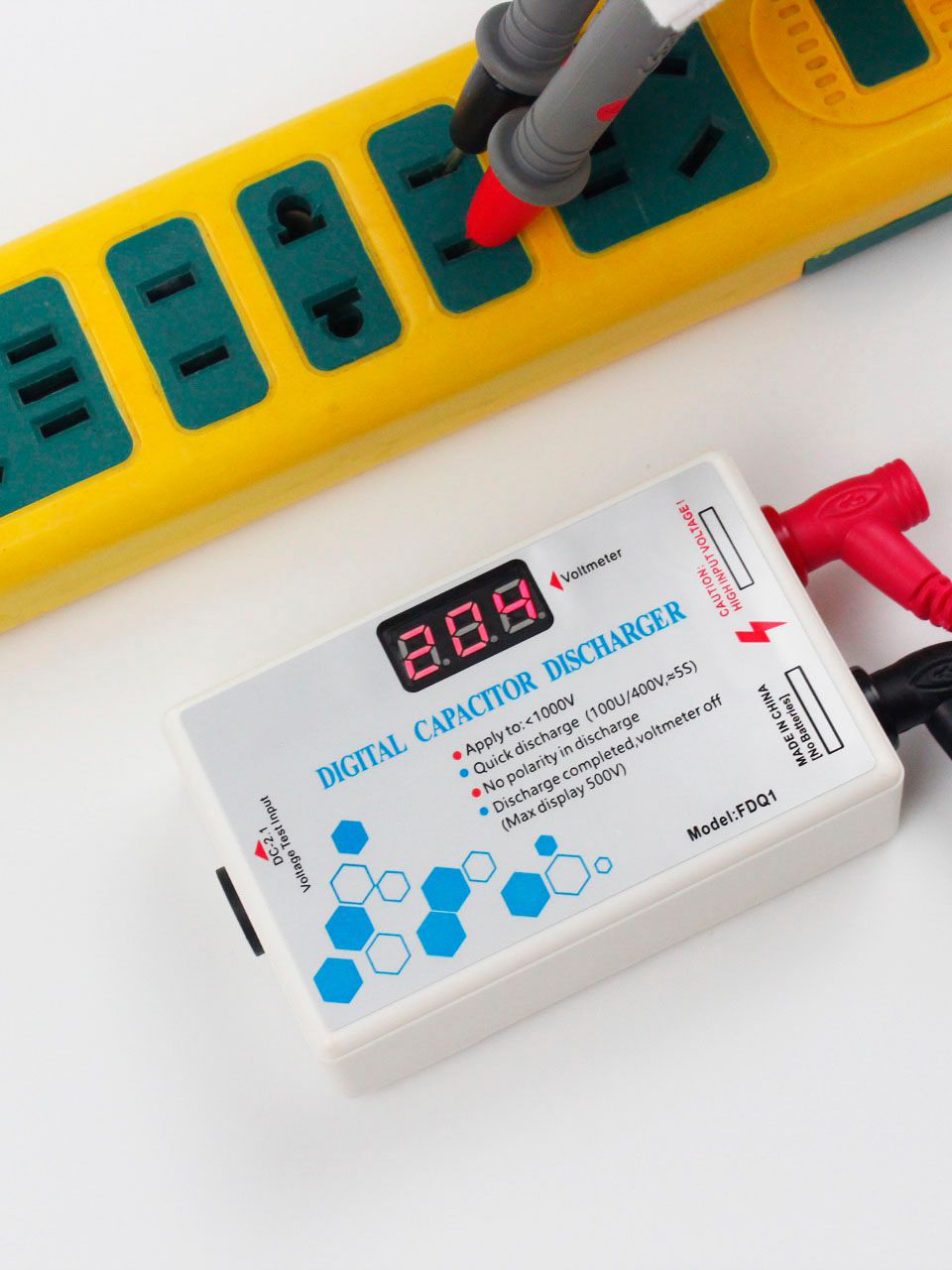

E. It could use as a digital voltmeter (10-500V) to test the DC/AC voltage. (When test AC voltage, actual voltage = testing voltage*1.1; When test DC voltage, actual voltage = testing voltage.)
Directions:

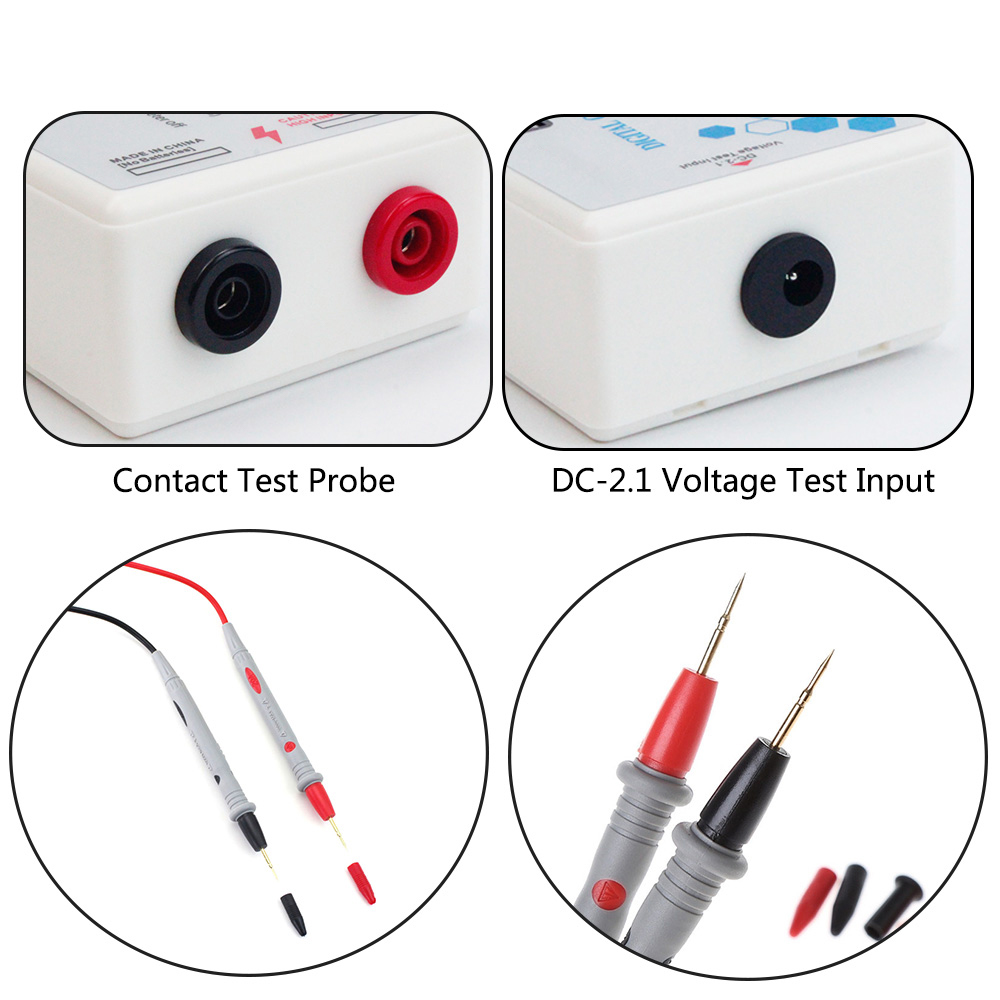

A. Plug the red and black pens into the discharger.

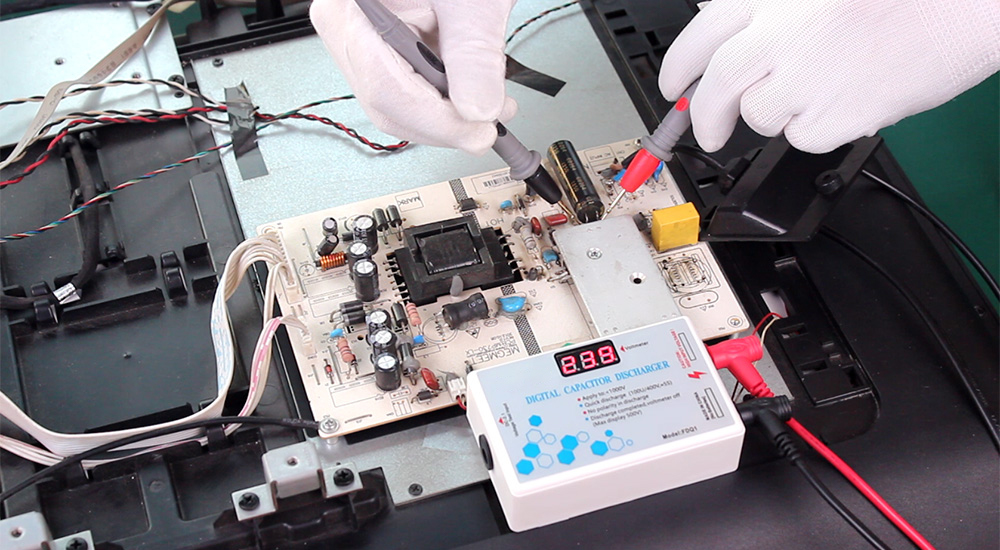

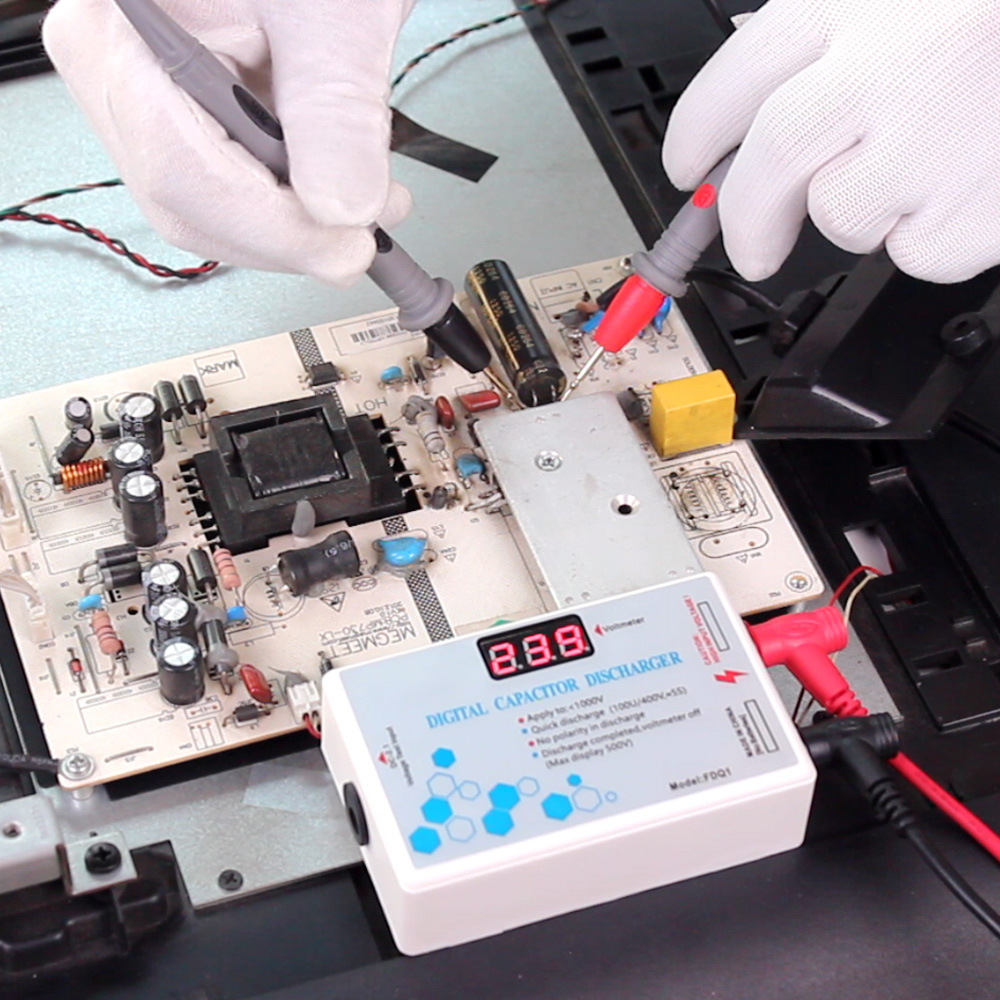

B. The probes contact the capacitor with no polarity, then discharge start.

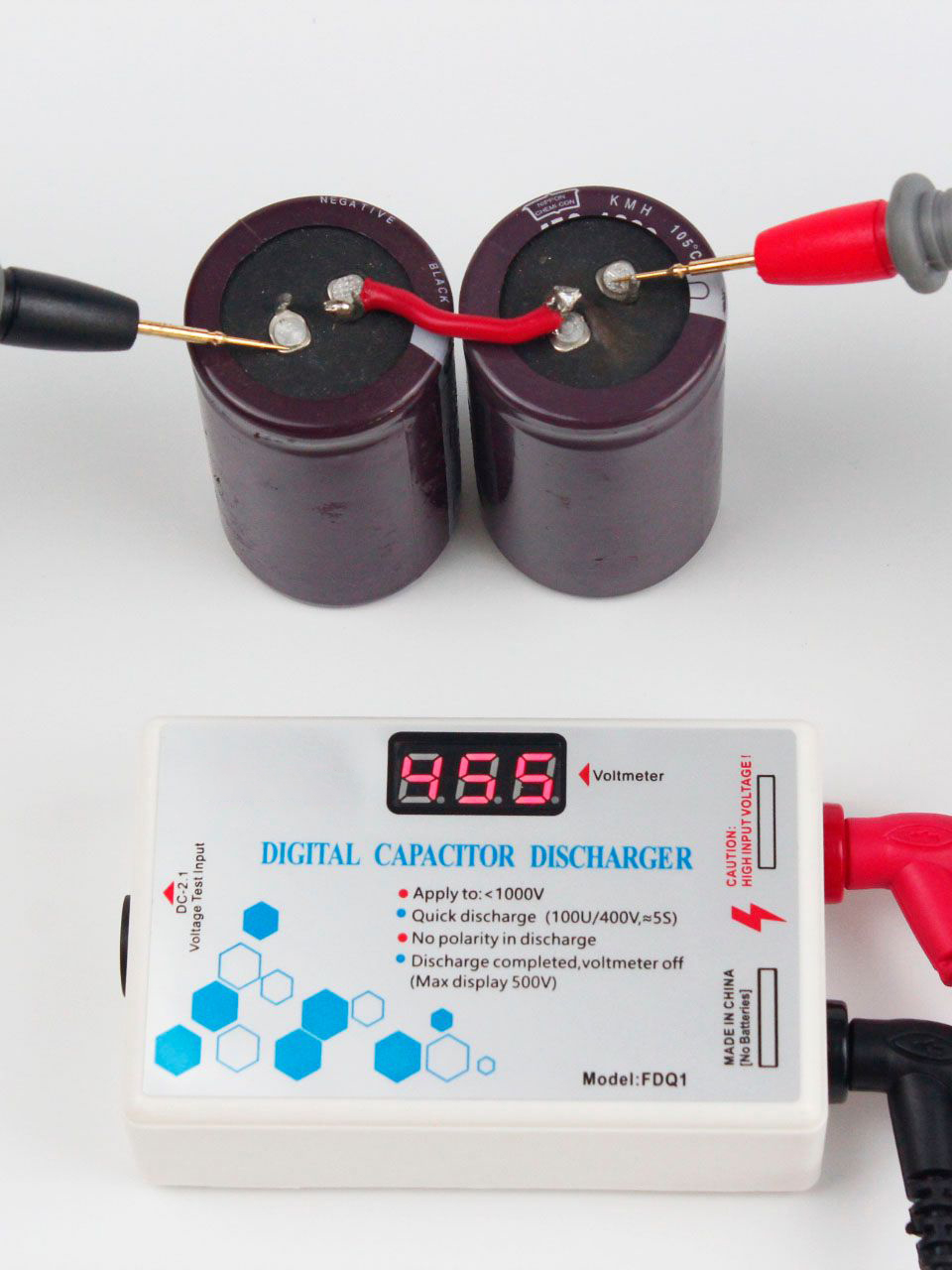

C. The voltmeter will display 500V if the voltage of the capacitor is more than 500V; and it display the actual voltage when the voltage is less than 500V.
D. The voltmeter will be off when the voltage is less than 10V, then discharge completed.
Note:
It is important to note that the edge of the metal tip during the discharge do not touch any conductive objects, including the human finger.
