FEELWORLD F5 5 inch DSLR Camera Monitor Small HD Focus Video Assist Field Monitor LCD IPS Full HD 1920x1080 4K HDMI Input Output

FEELWORLD F5 5 inch DSLR Camera Monitor Small HD Focus Video Assist Field Monitor LCD IPS Full HD 1920x1080 4K HDMI Input Output

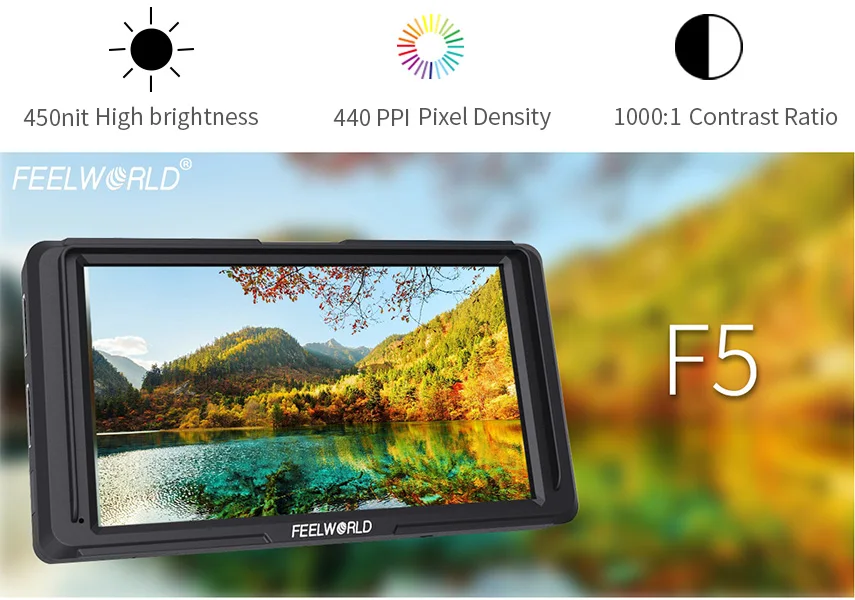

1920x1080 Pixels, Bright and Vibrant Images Anywhere

FEELWORLD F5 is a highly compact 5" monitor at a 16:9 aspect ratio. The Full HD 1920 x 1080 panel on the F5 is amazingly clear, packing 440 pixels per inch. The high-resolution LCD display shows bright, clear images - making it an ideal monitor for the discerning DSLR user. It also features 450cd/m2 backlight and high 1000:1 contrast ratio, which facilitates the on-screen image to be a more vibrant, more accurate rendition of what the camera sensor sees.

IPS Pin-Sharp Picture Quality

With a stunning 160 degrees viewing angle, you can get the same vivid picture from wherever you are standing - great for sharing the video from your DSLR with the whole film crew.

True Color, Professional Color Calibration

Use Rec.709 color standard

FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

Accurate Color Reproduction

FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

Portable & Lightweight Design

The entire monitor’s build is sturdy and compact, allowing you to easily mount it to your DSLR camera or even a gimbal stabilizer. The small form-factor and lightweight construction are perfect for shooters on the go and for those who are filming in crowded locations such as event shows. The F5 is only 5 inch and 142.5g, very lightweight. It gives you the freedom to shoot well anywhere.

4K HDMI Input & Loop Output

The F5 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)

HDMI Output Applications

Connect to Wireless Transmitter,Director Monitor, Projector, etc.

Right Tools for The Right Shot

The FEELWORLD 5" F5 4K HDMI field monitor is versatile while easy to use the on-camera monitor that aims to help the camera operator (or assistant) focus the camera. With the professional features (such as histogram, focus assist, embedded audio, false colors, zebra exposure, ratio marker, anamorphic mode etc.), it can become a great companion to your video camera and extremely helpful to your filming.

DC Output

Use the F5 to power your DSLR or mirrorless camera

The FEELWORLD F5 is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F5 provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the F5 extends camera run-time, while providing a more usable display. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

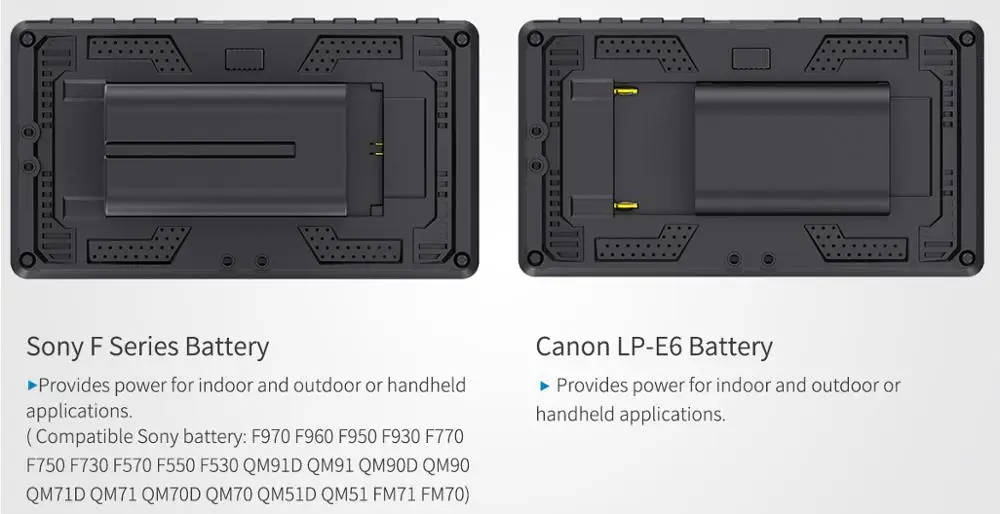

Flexible Dual-purpose Battery Plate

Compatibility with Sony F970 and Canon LP-E6 of lithium batteries for one battery plate. Providing long-time working condition for cameraman in shooting applications.

Convenient Mounting - Tilt Arm

Every F5 monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.

• Allows F5 monitor to rotate 360 degrees for viewing convenience
• Secure and light weight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone

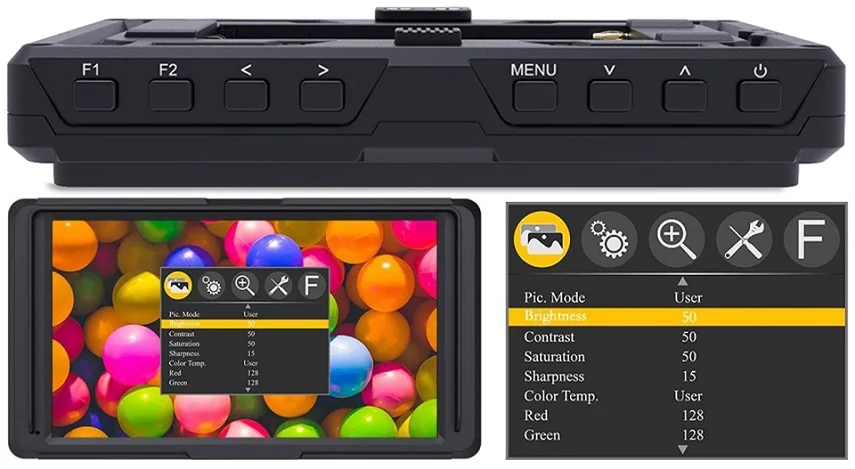

Intuitive Controls and Menus

The menu controls are intuitive and easy to use. On the top of the monitor, you’ll get the full button layout: a power button, two different feature buttons which are programmable to the various features that you use the most. And then you’ll get a menu button, up/down/left/down buttons and then you can press them down to activate selecting things. The monitor will automatically save the parameters you have previously set, and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

Multiple Install Way

To convenient the various angles monitoring
FEELWORLD F5 features standard 1/4" mount points (bottom, right) for attaching it to cameras and rigs. The external 1/4" screw design is used to make the monitor lighter and thinner.

The 1/4" screw can remove mounted to the bottom or right side

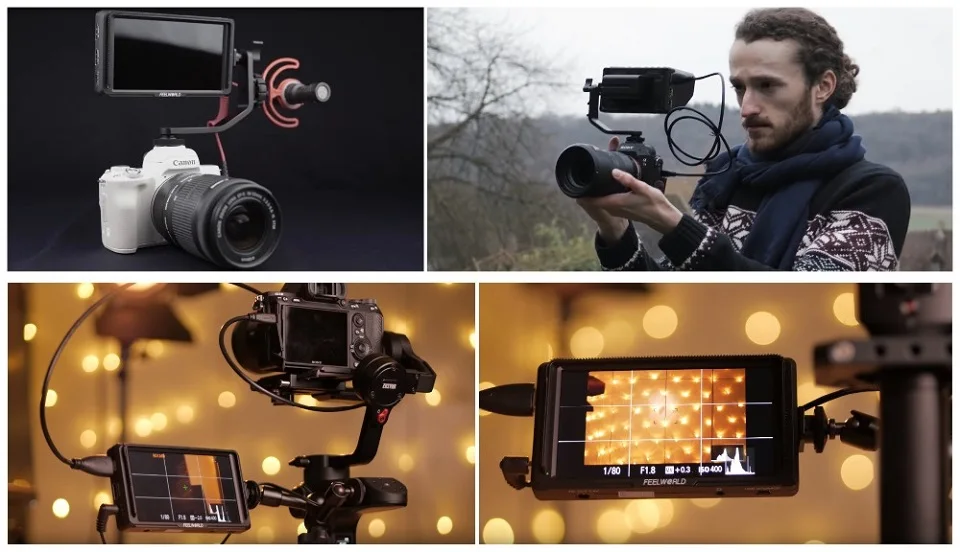

Flexible Install Both on Camera and Gimbal

Not only you can install it on a handheld stabilizer, but also you can mount itsecurely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!

Newest Sunshade Design, Easy Install

The F5 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. Moreover, the F5 monitor and the sunshade fixing frame are integrated, so you can directly attach the sun visor to the monitor through the attached velcro. The installation process is simple and fast, which is very suitable for outdoor shooting.
