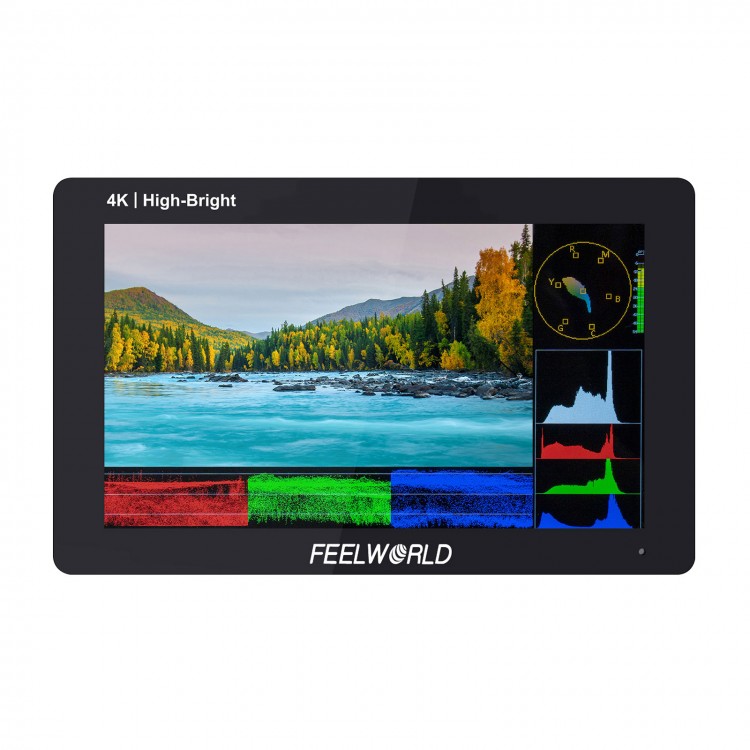

FeelWorld F5 PROX 5.5" 1600nit 4K DSLR Camera Filed Monitor Touch Screen with Power Kit for F970

FeelWorld F5 PROX 5.5" 1600nit 4K DSLR Camera Filed Monitor Touch Screen with Power Kit for F970

Features:
5.5" 1600nit high bright on-camera monitor
* External installation and power kit for F970

1600nit true high brightness. Matrix air duct without noise
* 1600nit brightness makes you fearless of sunlight, making it convenient to monitor the shooting effect in real time outdoors. With back modular matrix natural air duct, it does not need a fan to cool it down.
* No fan and no noise.

It can supply power to wireless video transmission, reduce battery weight and increase battery life
* The F5 PROX can directly power F970 battery-powered devices such as wireless video transmissions, camera lights and conversion boxes. The innovative external power supply kit directly reduces the weight of the video transmission battery.
* External power supply kit is for Sony F970.
* At the same time, your camera's dummy battery can supply power to the monitor to extend the camera's shooting time, saving space and reducing the weight of the equipment.

It restores original color
* The F5 PROX follows the Rec. 709 international color standard. Calibration equipment for X-Rite and calibration software for Calman are used to calibrate the hardware and software of the screen to accurately reproduce the color display.

Output high-quality images
* 4K HDMI-compatible signal input loop-out.
* F5 PROX supports 4K 24Hz signal input loop-out to maintain the original video quality. It helps your team preview the footage and make the details of the image close to the real thing.

A full range of auxiliary shooting functions
* Supports 3D LUT.
* Built-in 4 De-logLUTs. Users can also load custom .cube files (up to 32pcs) via a USB drive. Insert the USB drive into the included TYPE-C to USB adapter and connect it to the monitor's type-c port. It allows you to switch between a variety of creative styles and reproduce the style of the movie.

Professional aids
* They helps you focus and expose accurately.
* 3D LUT, waveforms, volume bars, safe frames, 16:9 display ratio, vectors, image flipping, scale markers, color temperature and 9 square grids.

F5 PROX
* Backed by 1600 nits of high brightness, the F5 PROX is not afraid of the sun. The screen is clearly visible when it is used outdoors. Users do not need to use a sunshade.

More product details
* 5.5" IPS screen
* 160° wide viewing angle
* 16:9 screen ratio
* 1600 nits brightness
* 1920x1080 resolution
* 1000:1 contrast ratio

Sensitive touch controls
* The innovative LCD touchscreen user interface gives you complete and detailed control. No buttons are required, all at your fingertips or with a swipe.

Button operation
* In addition to touch control, you can also choose to use physical keys. In addition, there are 3 custom shortcut functions (F1-F3). You can set them as frequently used function keys. With just one click, you can realize the desired function and improve shooting efficiency.

Zoom mode
* Zoom in and out by adjusting the horizontal and vertical axes of the screen position.

Supports 3 kinds of power supplies
* It supports F970 battery and DC IN 12/8V DC power supply. It can be powered by type-c 5V above 2A power banks.

Product Specifications:
Display parameters:
* Size: 5.5" IPS
* Resolution: 1920x1080 pixels
* Aspect ratio: 16:9 and 1000:1
* Contrast ratio: 1000:1
* Color: 16.7M (8bit)
* Pixel pitch: 0.069 (H) x 0.069 (V) mm
* Brightness: 1600cd/m2
* Viewing angle:80°/80°(L/R)80°/80°(U/D)

Interface:
* HDMI-compatible input and output
* 3.5mm stereo audio jack

Supported formats of HDMI-compatible input/output:
* 480i/576i/480p/576p
* 1080i (60/59.94/50)
* 720p (60/59.94/50/30/29.97/25/24/23.98)
* 1080p (60/59.94/50/30/29.97/25/24/23.98)
* 3840x2160p (30/29.97/25/24/23.98)
* 4096x2160p (24Hz)

Voltage:
* DC input voltage 7-24V

Power consumption:
* ≤9W

Main unit specifications:
* Body size: 148mm(L)x93mm(H)x20mm(D)
* Weight: 245g (with external power kit for F970)
* Operating temperature: -20°C to 50°C
* Storage temperature: -30°C to 60°C

Packing List:
* 1 x Monitor
* 1 x Micro HDMI-compatible Cable
* 1 x Tilt Arm
* 1 x Sunshade
* 1 x TYPE-C to USB Adapter
* 1 x Wrench for Disassembly
* 1 x User Manual

Packaging Details:
* Weight: 0.8kg

Note:
* Battery and other items mentioned or pictured are not included.
