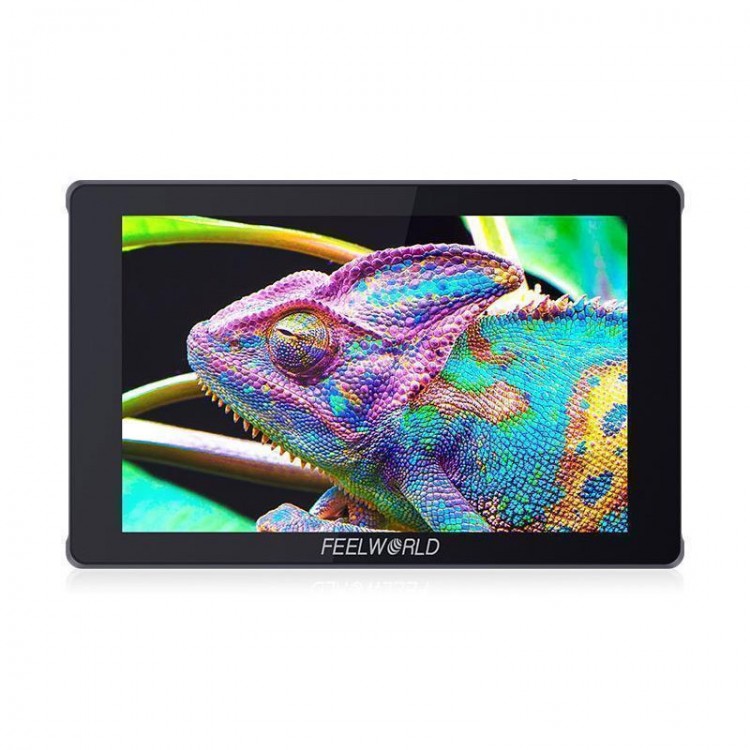

FEELWORLD F7 PLUS 7-Inch DSLR Camera Field Monitor 4K 1200nit Camera Monitor HDMI-Compatible

FEELWORLD F7 PLUS 7-Inch DSLR Camera Field Monitor 4K 1200nit Camera Monitor HDMI-Compatible

Features:
7" camera monitor with a touch screen
* HDMI-compatible 2.0 4K60 signal transmission
* 1200NIT high brightness

1200NIT professional monitor screen
* True high brightness, ultra high definition and original color display
* 1200NIT meets most shooting needs
* Professional 709 color display to restore the true nature of the screen
* 1080P HD

HDMI-compatible 2.0 input and loop-out
* 4K60P signal transmission
* More camera output formats are supported

Supported formats of HDMI-compatible 2.0 input and output
* 720P/1080I/1080P/3840x2160P/4096x2160P

Switch between four sets of user settings with one click, and easily set shooting preferences
* Four preset bars have been added to the user settings. Users can save different settings and quickly switch between settings according to their requirements to meet the shooting preferences of different scenes/different users.

Professional monitoring assistance
* Professional accessibility features help users focus and expose accurately. It is suitable for pre-shooting, post-production and color calibration.
* It supports full waveform display, false color, vector image, RGB histogram, luminance histogram, nine-square grid, zebra pattern and center marker.

Load custom 3D LUT to reproduce cinematic style
* You can enhance teamwork by connecting wireless devices to output images with LUT to the director or client for real-time monitoring. Upload 3D LUT from your SD card and store up to 32 LUT at the same time.

2 control methods
* Touch screen and scroll wheel sliding.
* Touchscreen control: Short press the power button to lock the touchscreen. Double-tap the screen to wake up the main menu. Swipe up to open the shortcut menu.

Three power supply methods make it convenient for you to shoot in one day
* TYPE-C 5V input power port can be connected to a power bank for power supply. 7~24V DC input power port and F9701 battery plate can be used.

Its body with a non-slip and impact resistant design
* The body adopts an anti-slip design. When you are holding the monitor, it is not easy to slip off. The body also has anti-collision corner guards, made of high-strength rubber plastic, with a good pressure resistance.

Multiple screw holes for easy installation
* There are 1/4 screw holes. The screw holes are on the top, bottom and right side for transverse and longitudinal flipping. You can mount it on your camera or other equipment with a magic arm, bracket, etc., to meet the monitoring needs of photographers and directors.

Fanless matrix design. Zero noise makes you feel good
* Fanless design for passive cooling. This ensures that the screen can work stably for a long time without worrying about the noise caused by the fan.

More Features
* 1920x1200 full HD IPS screen helps you record every detail clearly
* Power mount makes it easy to install and remove your F970 battery, simplifying photography equipment
* HDR monitoring to catch the details of the picture clearly
* Waveforms, vectors, histograms, audio bars can be moved horizontally or vertically
* DC8V output supplies power to your camera
* Headphone stereo output for easy monitoring

Product Specifications:
Display Specifications:
* Model: F7 PLUS
* Screen Size: 7" IPS
* Resolution: 1920x1200 pixels
* Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
* Aspect Ratio: 16:10
* Brightness: 1200cd/m²
* Contrast Ratio: 1200:1
* Backlight: LED
* Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

Input:
* 1 X HDMI-compatible (HDMI-compatible 2.0)
* 1 X DC12V IN (suitable for DC5.5*21mm power plug)
* 1 X USB [5V Type-C (please use 5V/2A or more than 2A Type-C power supply)]
* 1 X SD Card Slot (Firmware update/LUT file upload)

Output:
* 1 X HDMI-compatible (HDMI-compatible 2.0)
* 1 X DC [DC OUT 8V (suitable for DC5.5*21mm power plug)]

Audio:
* Audio output: Headphone jack

Supports Formats of HDMI-compatible:
* 480i/576i/480p/576p
* 1080i (60/59.94/50)
* 720p (60/59.94/50/30/29/25/24/23.98)
* 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
* 3840×2160p (60/50/30/29.97/25/24/23.98)
* 4096×2160p (60/50/30/29.97/25/24/23.98)

Other Specifications:
* Input Voltage: DC7～24V
* Power Consumption: ≤15W
* Working Temperature: -20°C to 50°C
* Storage Temperature: -30°C to 60°C
* Installation Way: 1/4-20 screw holes (on the right side, top and bottom)
* Main Unit Size: 186mm x 117mm x 21mm/7.3" x 4.6" x 0.8"
* Main Unit Weight: 389g/0.9lb

Packaging List:
* 1 x Monitor
* 1 x A-A HDMI-compatible Cable
* 1 x Micro HDMI-compatible Cable
* 1 x Mini Hot Shoe Mount+ Hex Wrench
* 1 x Wrench for Disassembly
* 1 x Manual

Packaging Details:
* Weight: 1kg

Note:
* Battery and other items mentioned above are not included.
