Feelworld FW703 SDI 4K Camera Monitor DSLR Field Monitor 1920x1200 with Histogram for Stabilizer Gimbal

Feelworld FW703 SDI 4K Camera Monitor DSLR Field Monitor 1920x1200 with Histogram for Stabilizer Gimbal

Description:
FEELWORLD FW703 Let your Video Shooting Become Easier
FEELWORLD has been committed to providing the comprehensive broadcast monitoring and solutions for the professional filmmakers. Whether the upgrade of the excellent display technology from HD to FHD or to UHD 4K resolution, FEELWORLD aims to support the professional creators to obtain the greater benefits and to create more exciting stories, with the most advanced technology to improve the production efficiency.

Features:
* 7" IPS screen 3G-SDI 4K HDMI camera field monitor, Full HD 1920x1200 high resolution, High brightness: 450cd/m2, High Contrast: 1200:1, Aspect Ratio 16:10, Viewing angle: 80°/80°(L/R) 80°/80°(U/D), wide 160° viewing angle makes it easy for multiple members of the crew to watch it at the same time
* Inputs:3G-SDI, HDMI; outputs: 3G-SDI, HDMI, Stereo Headphone, Speaker (built-in), support 4K HDMI input and output
* Portable small size monitor, 320g lightweight, ultra-thin design 0.87 inch thickness, compact and rugged for stabilizer, it's easy to hold in your hands
* Professional Rec.709 HD color standard, and color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video

Specifications:
* Screen Size: 7" IPS
* Display Colors: 16.7M (8 bit)
* Resolution: 1920x1200 pixels
* Pixel Pitch: 0.07875 (H) x 0.07875 (W) mm
* Aspect Ratio: 16:10
* Brightness: 450cd/m2
* Contrast Ratio: 1200:1
* Viewing Angle: 80/80 degrees (L/R), 80/80 degrees (U/D)
* Input: SD/HD/3G SDI, HDMI
* Output: SD/HD/3G SDI, HDMI
* Audio Out: Stereo Headphone, Speaker (built-in)

SDI Support Format:
* 480i/576i
* 720p (60/59.94/50/30/29/25/24/23.98)
* 1080i (60/59.94/50)
* 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Support Format:
* 480i/576i/480p/576p
* 1080i (60/59.94/50)
* 720p (60/59.94/50/30/29/25/24/23.98)
* 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

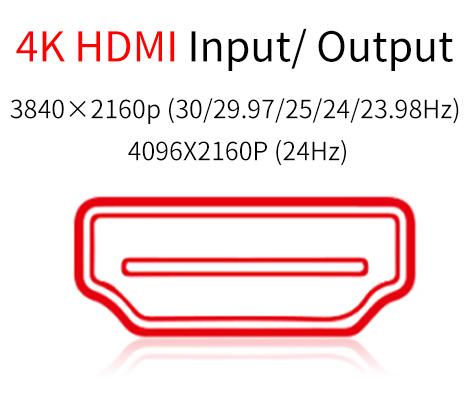

* 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)

Package Included:
* 1 x Monitor
* 1 x Mini HDMI Cable
* 1 x Hot Shoe Mount
* 1 x F970 Battery Plate
* 1 x Operation Manual

Note:
* Battery is not included.

Advantages:

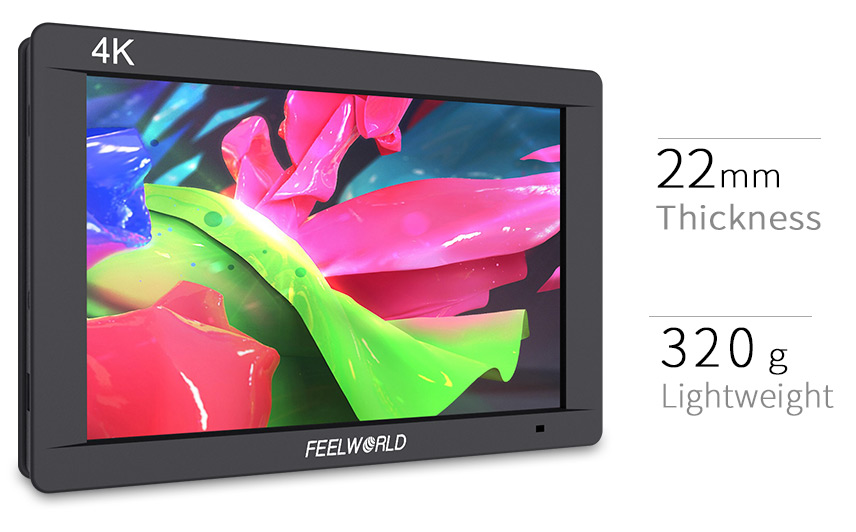

Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 22mm thickness, 320g lightweight, the FW703 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

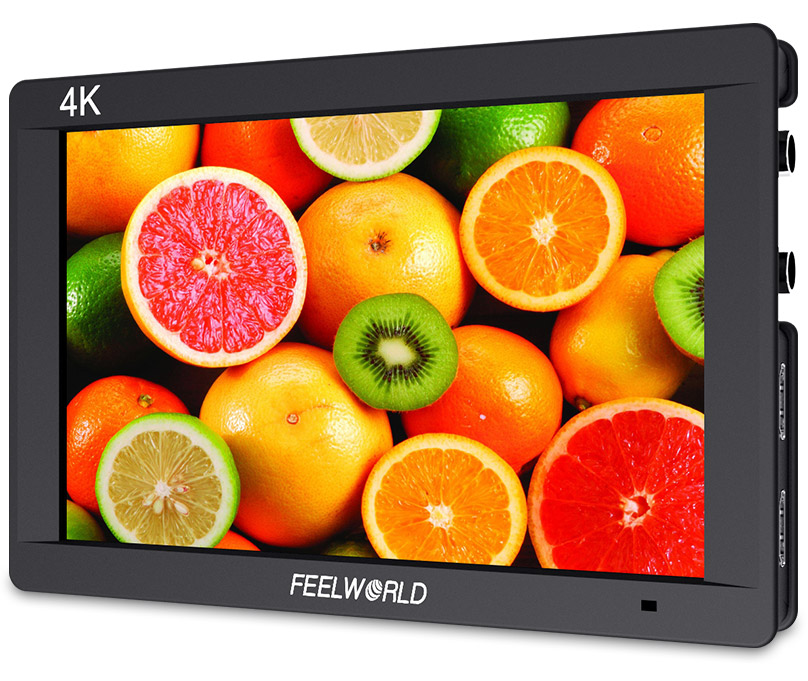

Full HD 1920x1200
Richer, Brighter, Most Colorful
FEELWORLD FW703 4K monitor features "gold size" 7-inch full HD large screen, resolution 1920X1200, pixel density up to 323PPI. The outstanding image quality that allows you to achieve your "VISION".


Precise Color to fuel your creative flow
Richer, Brighter, Most Colorful


IPS Wider View Angle 160°
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. FW703 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.

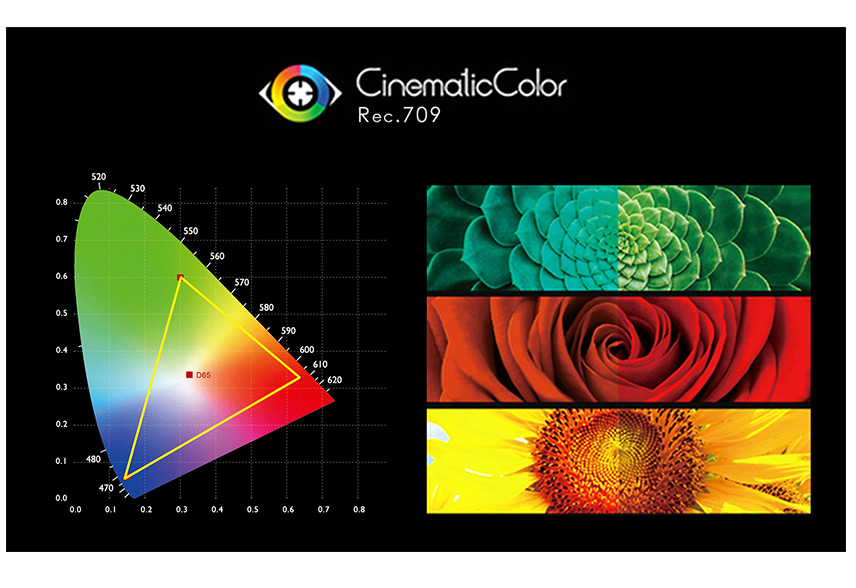

True Color · Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.


Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.


Professional Monitoring
Broadcast quality 3G-SDI, 4K HDMI monitoring，use pro or consumer cameras

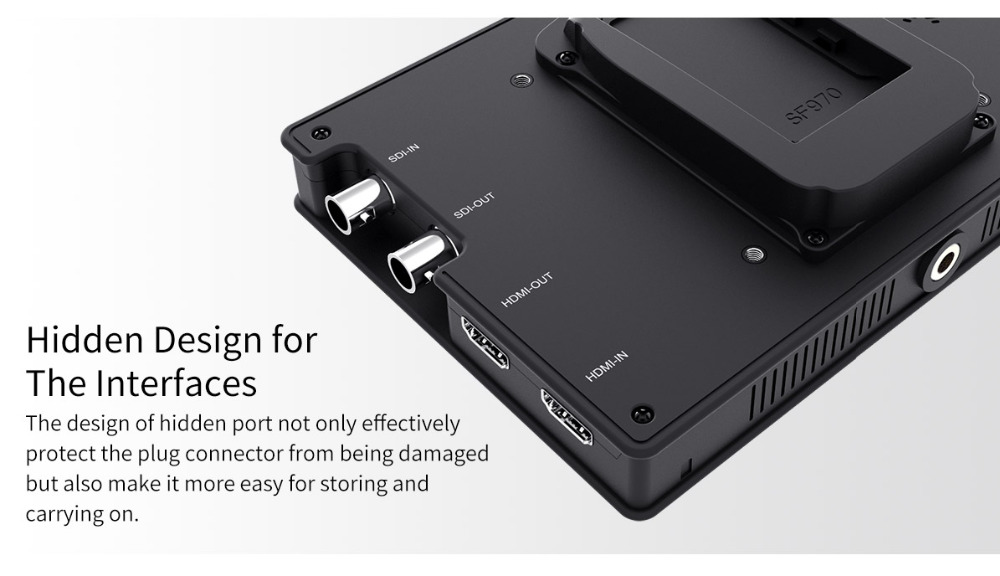

The compact design of the FW703 includes 3G-SDI and 4K HDMI input/ output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker. Its SDI Input supports all SD, HD and SDI formats up to 1080p 60Hz and HDMI input supports formats up to 4K 2160p 30Hz, perfect support for almost all signal.

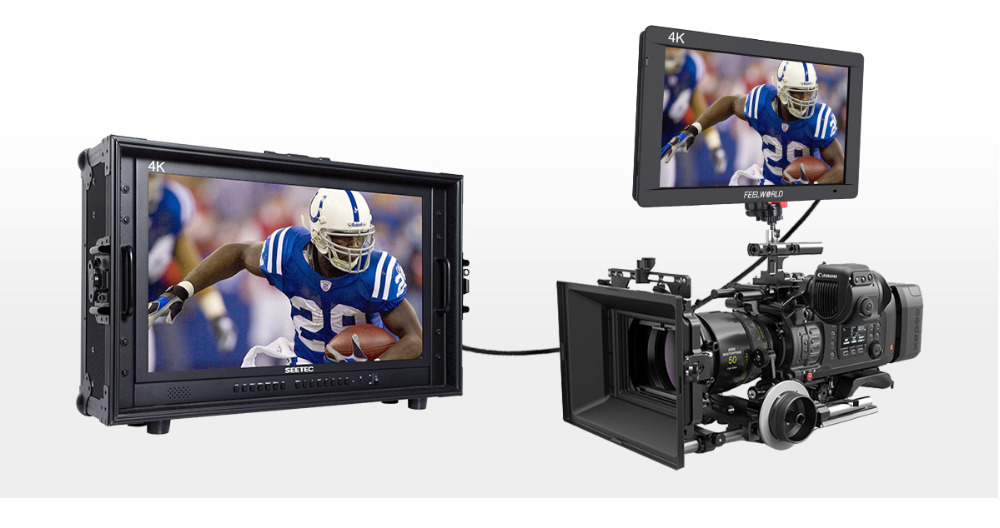

3G-SDI and 4K HDMI Loop-out
The FW703 has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

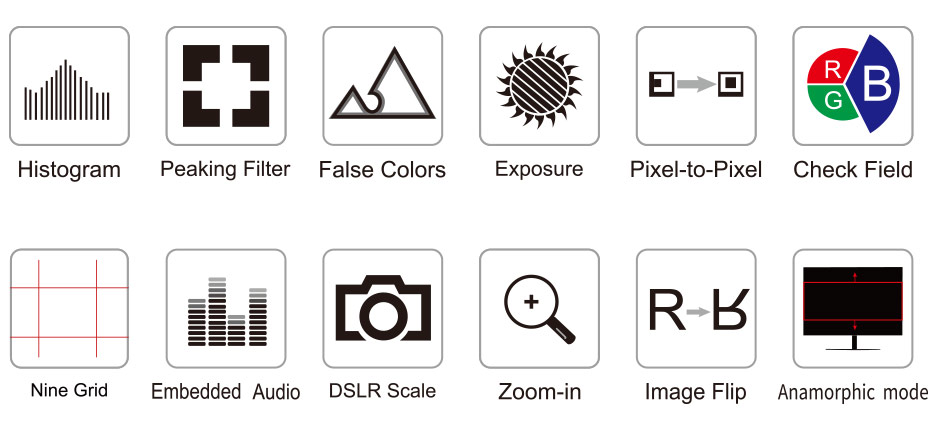

More Advanced Features
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.

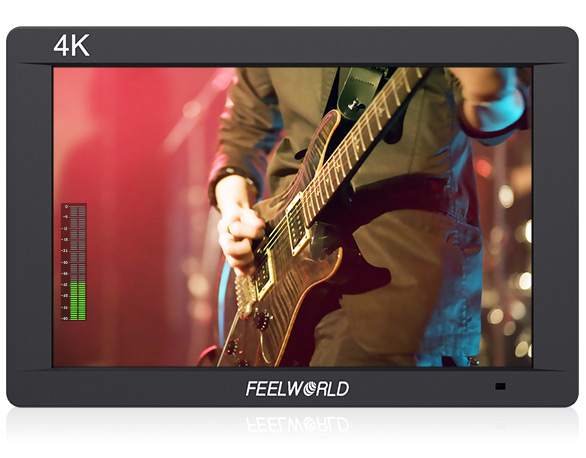

Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.

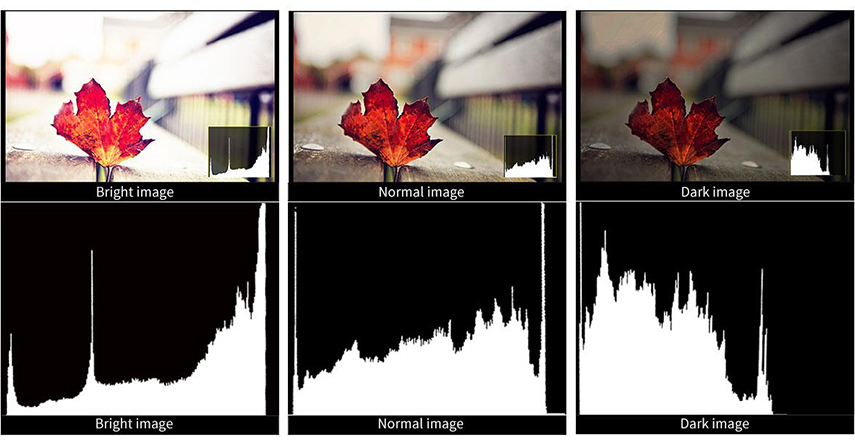

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

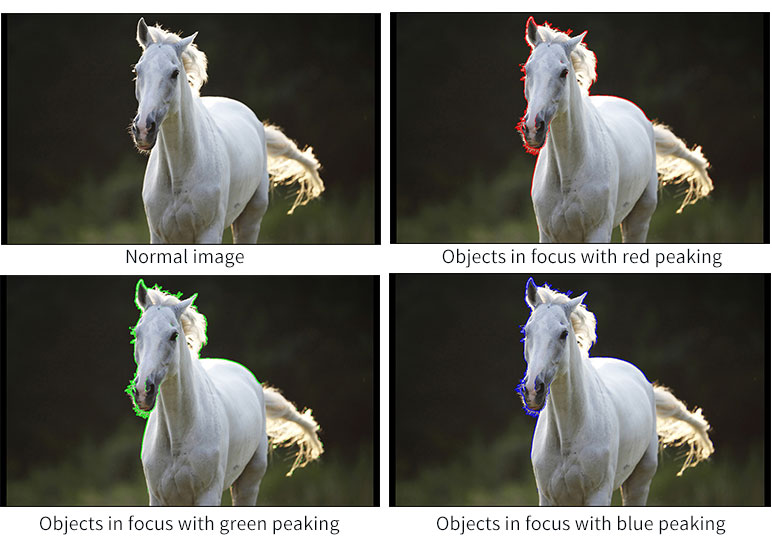

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.


Enjoy Efficiency Operation

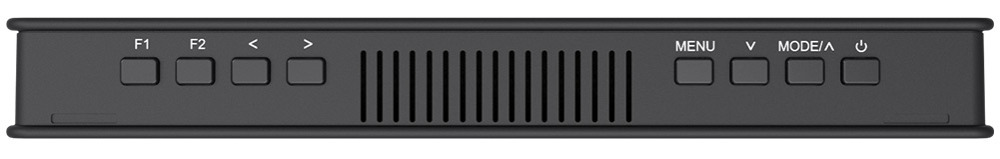

Easy operate button design, allowing you immediately to improve the shooting efficiency. F1, F2 custom shortcut function keys, can fast access to the functions you needs, focus assist, false color, exposure, embedded audio etc.


Multiple Installations

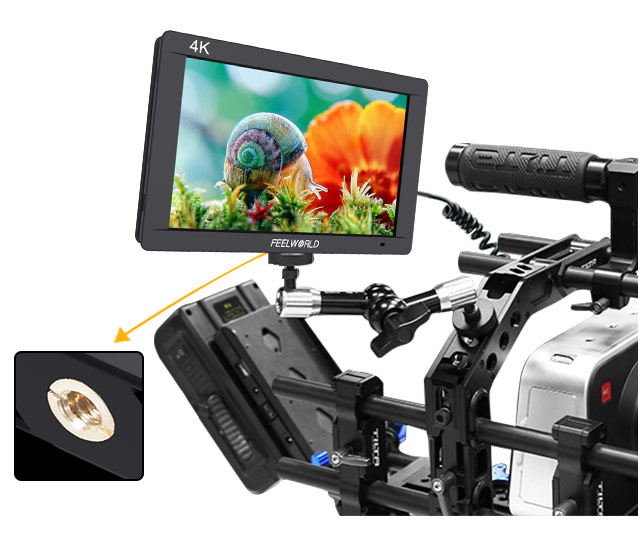

Standard 1/4"-20 Thread Socket
FEELWORLD FW703 is equipped with standard 1/4 hole (bottom), easy to install DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane, combined with image flip function, convenient for field shooting.

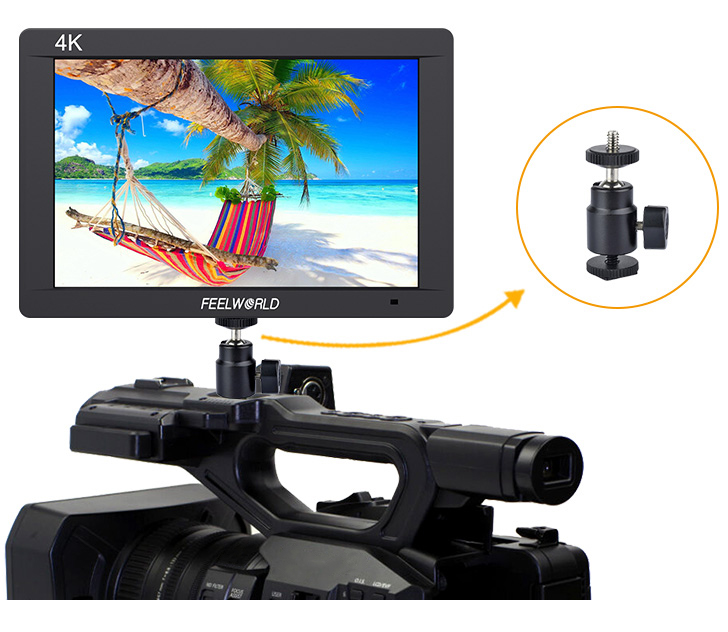

Standard Hot Shoe Mount 360° Rotation
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.

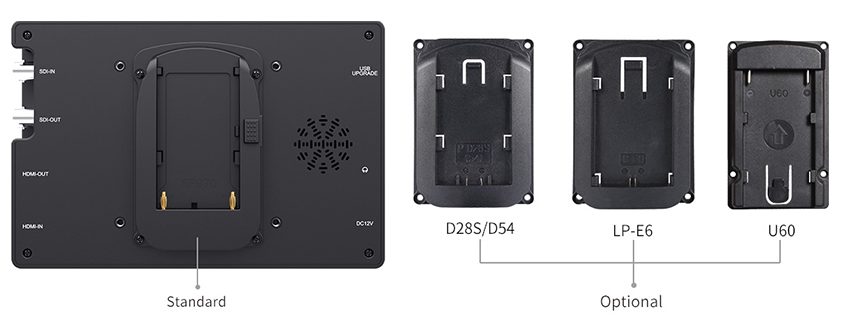

Flexible Battery System
The FW703 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional).
