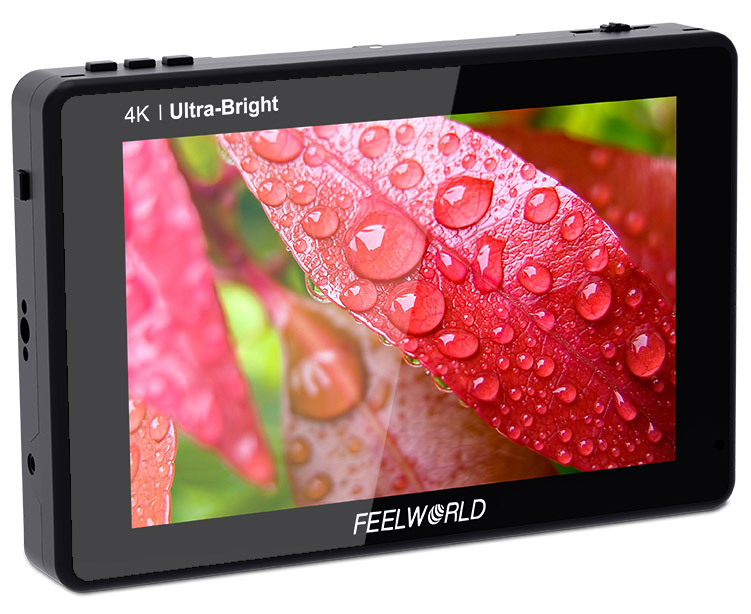

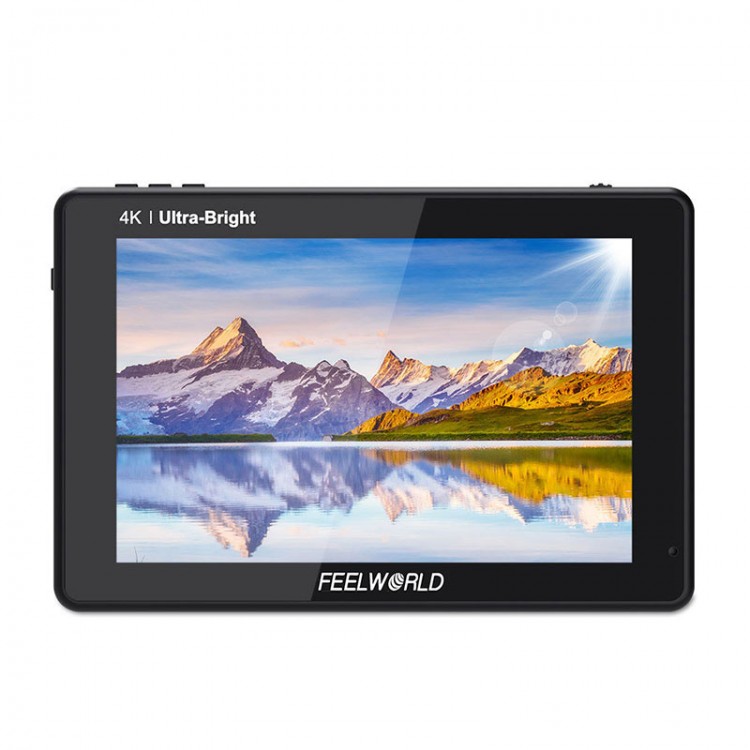

Feelworld LUT7S 4K Ultra-Bright 7" Camera Monitor 3G-SDI Camera Field Monitor 3D LUT Touch Screen

Feelworld LUT7S 4K Ultra-Bright 7" Camera Monitor 3G-SDI Camera Field Monitor 3D LUT Touch Screen

Features:

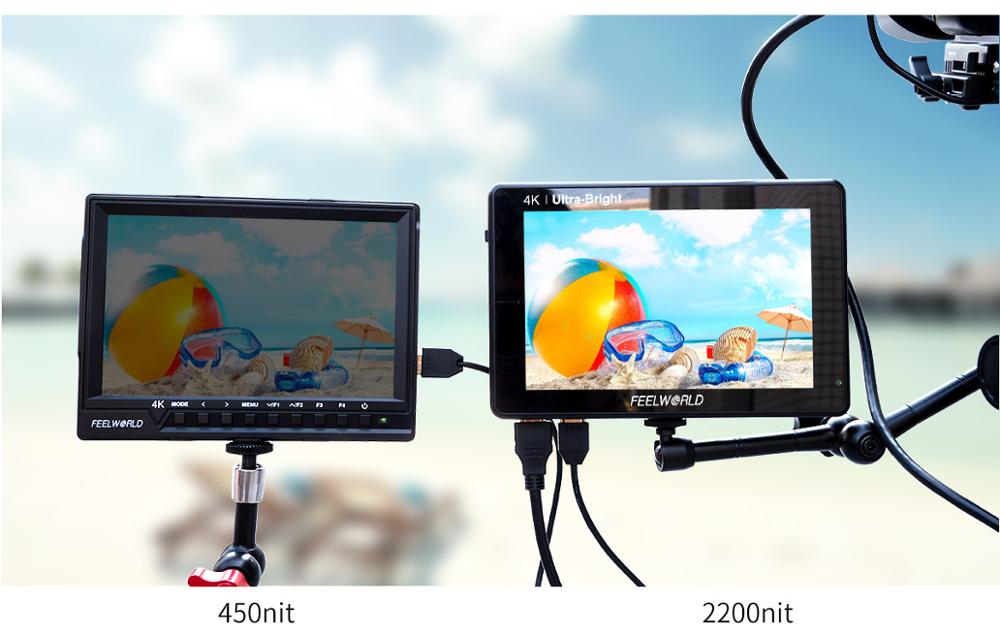

2200nit Daylight Viewable
The 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!

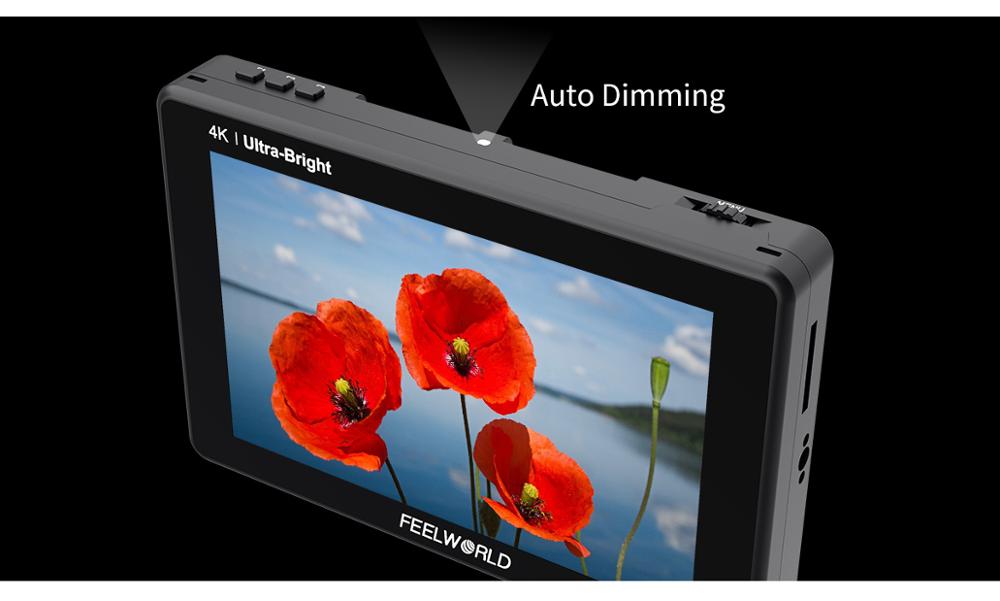

Light Sensor for Automatic Dimming
And LUT7S has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.

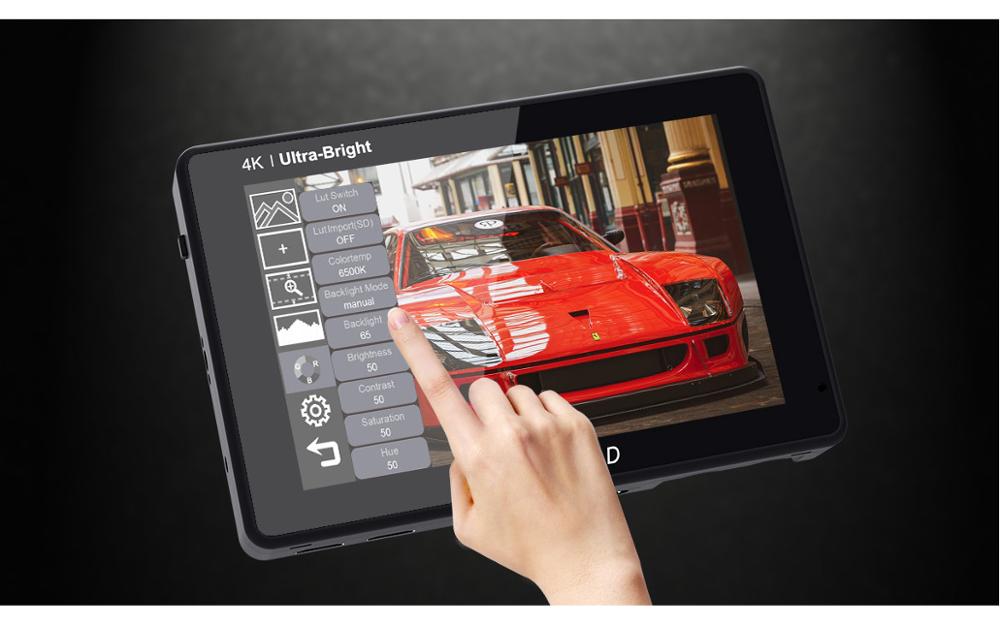

Large Monitor with Easy Touch Controls
The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!

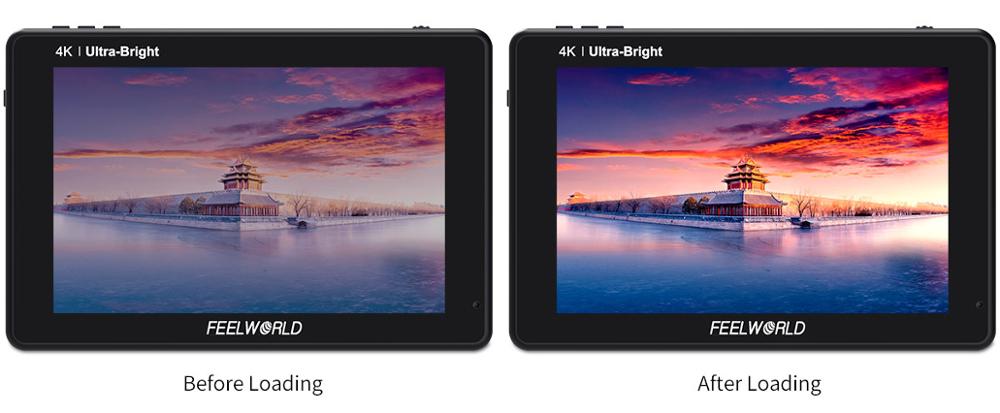

Load Custom 3D LUTs to Recreate Film Looks!
Some cameras can output logarithmic colorspace to preserve the dynamic range, which is great for later post production, however when these files are viewed on a monitor they can look flat and washed out. 3D LUTs solve this problem because they allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing. You could use built-in LOG to Rec.709 video or upload .cube files. LUT7S allows you to load internally up to custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

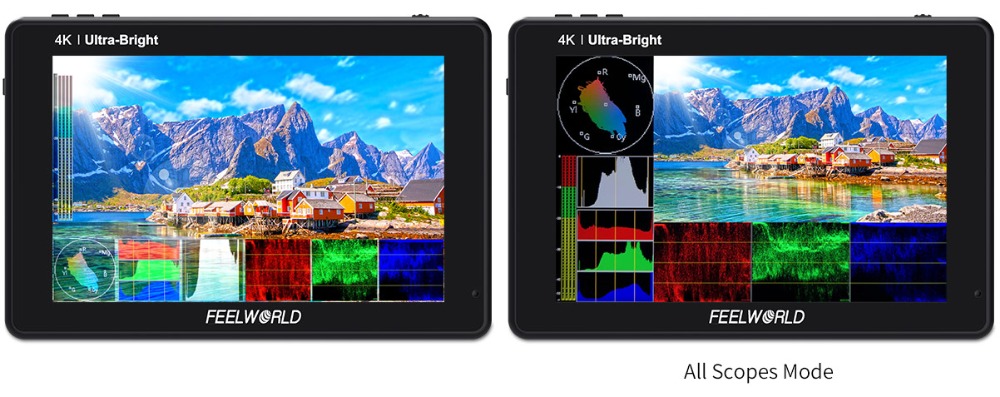

Accurate waveform monitoring
When you need to analyze image quality more accurately than simply looking at the picture then use LUT7S's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT7S is perfect for live production monitoring and removes the need for separate expensive scopes!


More Resolution, Less Reflection
The FEELWORLD LUT7S enables clear and precise field monitoring and image analysis during daytime shoots. It displays your stills and monitoring content at superior color fidelity and 1920 x 1200 maximum resolution on a 7-inch display. The panel is made of optically bonded glass with an anti-reflective coating, which allows comfortable daytime field monitoring. But what really sets it apart is its light-emitting diode (LED) backlighting, which outputs a brightness of 2200 nits and displays a 1200:1 contrast ratio and sRGB / Rec.709 Color Gamut, resulting in exceptional screen clarity even in intense lighting conditions. With the monitor displaying your content at 323 pixels per inch (PPI), you can shoot in broad daylight with confidence and refine your content on the spot. The wide 160º viewing angle makes it easy for multiple members of the crew to watch it at the same time.

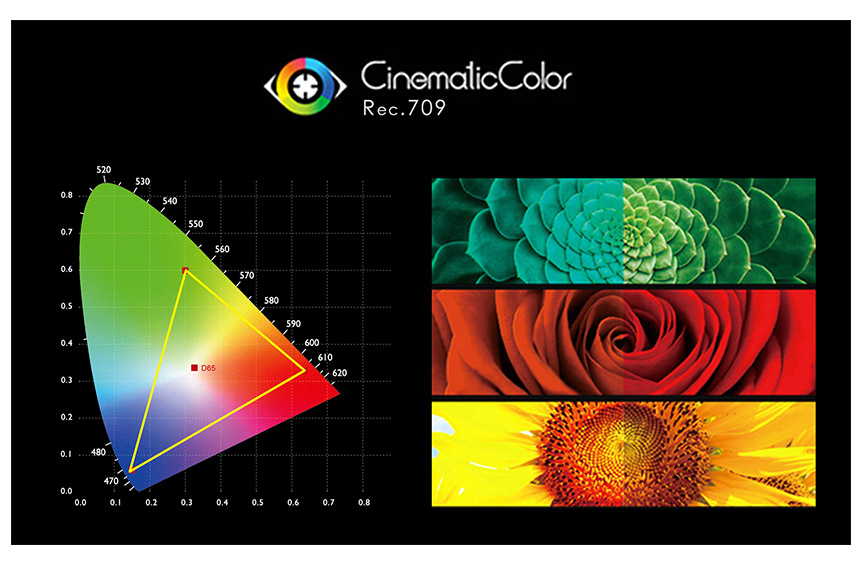

True Color · Professional Color Calibration
Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.


Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

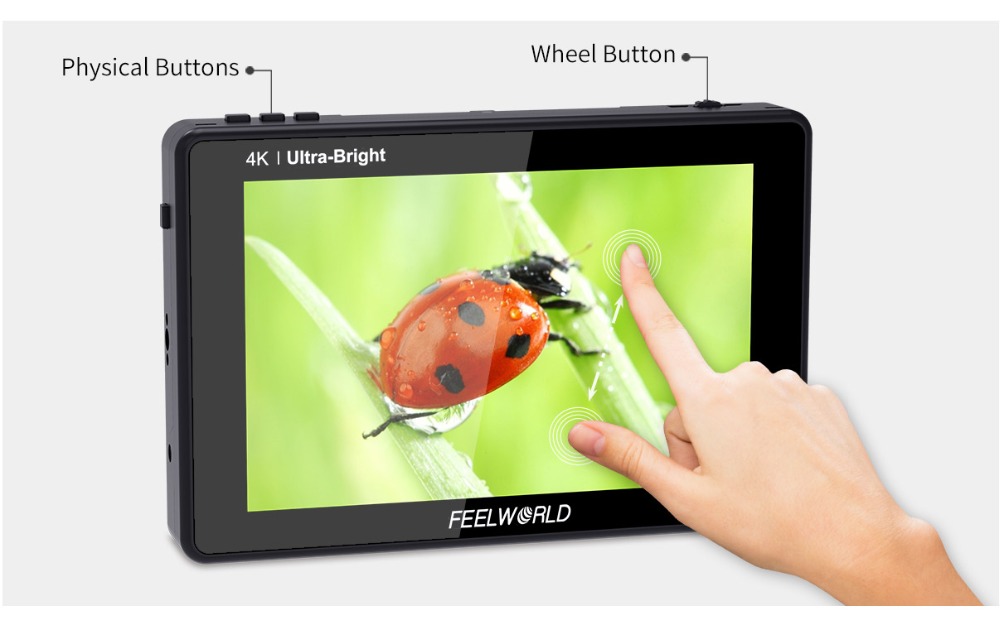

Support Touch Screen and Button Control Menu
You can also get a quick glance at your menu settings and features with an easy tap on the screen. It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings. Tap the power switch to turn off the touch function, designed to prevent misuse.

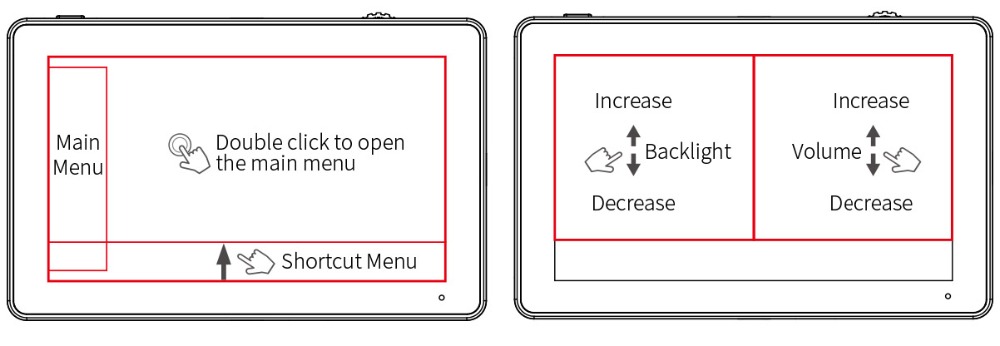

Touch Screen Operating Instruction
1. When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
2. Slip the finger from the bottom of the screen to enter the shortcut menu.
3. On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
4. Click any space beside menu to exit the menu.


Simple OS, Sophisticated Shots
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.

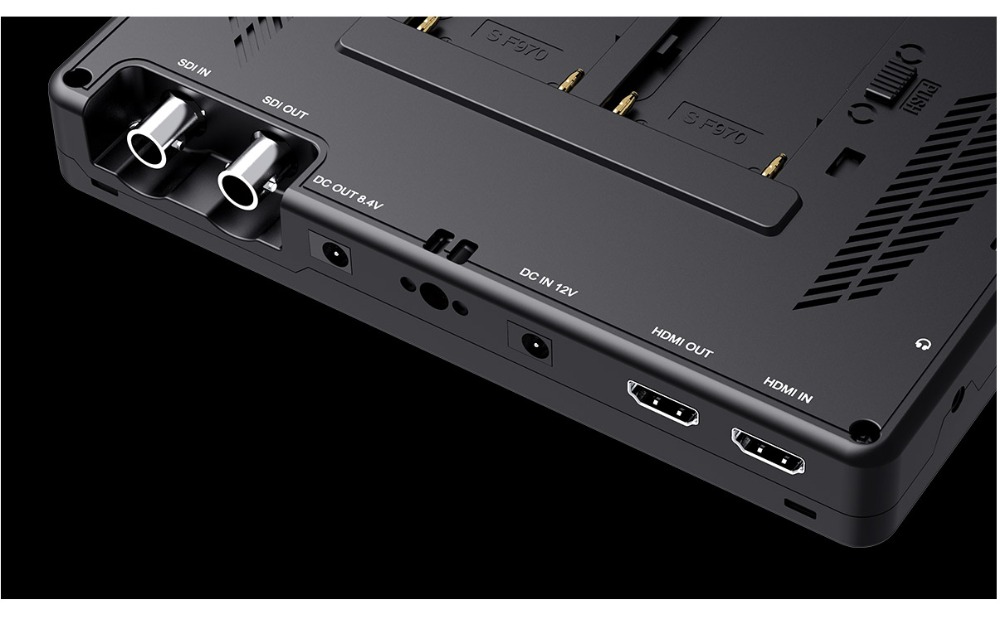

Connect to Professional Cameras, Camcorders and DSLR's
With both 3G-SDI and 4K HDMI inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack or the built in front panel speaker. For power, there's a 12V DC input and two NP-F battery slots.

3G-SDI and 4K HDMI Loop-out
- The LUT7S has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

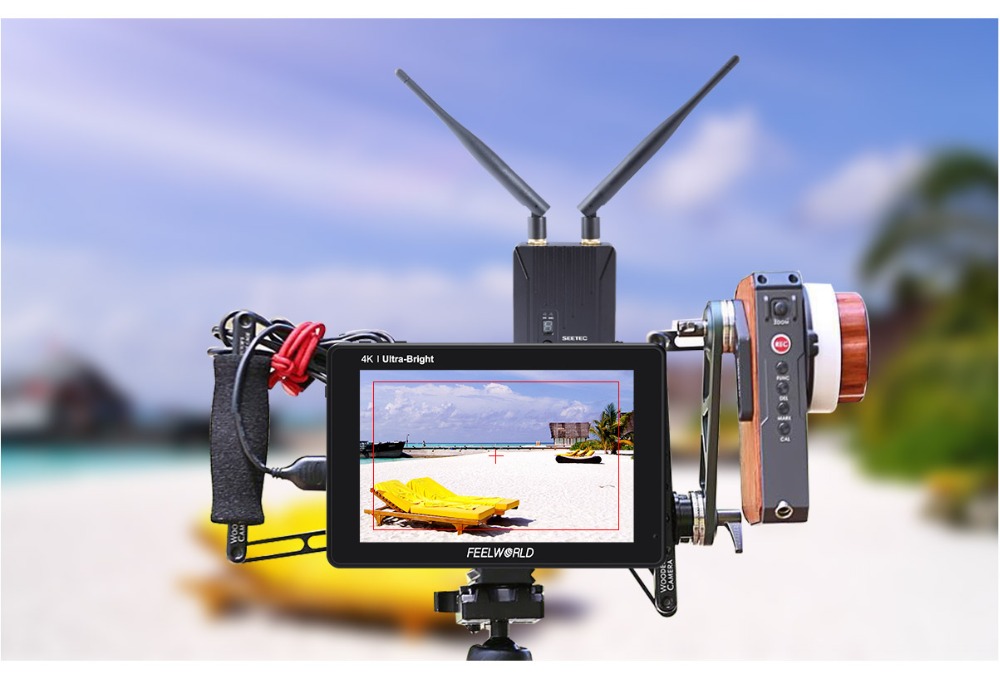

Connect to Wireless Transmitter
- Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.

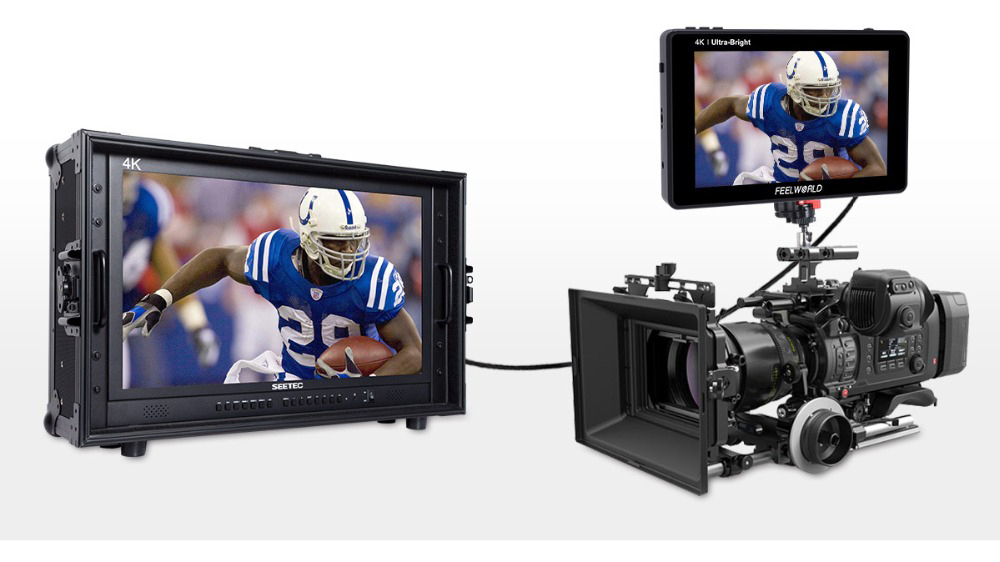

Connect to Director Monitor
Display live picture on multiple displays simultaneously.

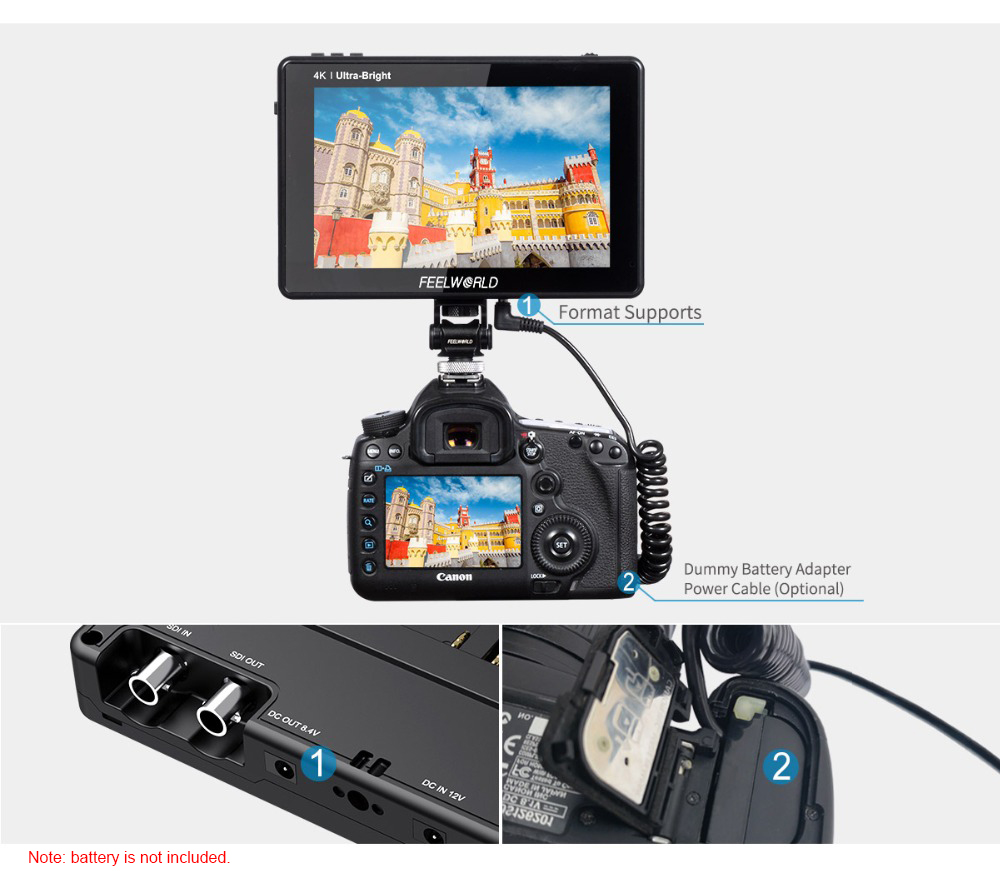

Power Your DSLR or Mirrorless Camera
The FEELWORLD LUT7S is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the LUT7S provides auxiliary power out; allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT7S extends camera run-time, while providing a more usable display.

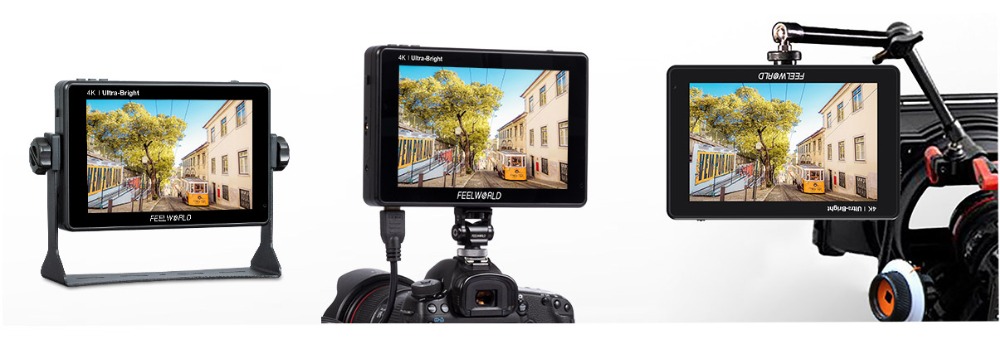

Attach to Cameras, Equipment Carts or Hang It Anywhere
The standard sized mounting points make it easy to mount and are compatible with third party rigging equipment. There are 3 mounting points located on the bottom, left and right. Using the bottom 1⁄4 inch hole, you can securely attach it to the top of your camera as the ultimate viewfinder! The 1⁄4-inch holes on the left and right sides can be mounted on other equipment with magic arm, bracket, etc., for the entire crew to monitor the screen.

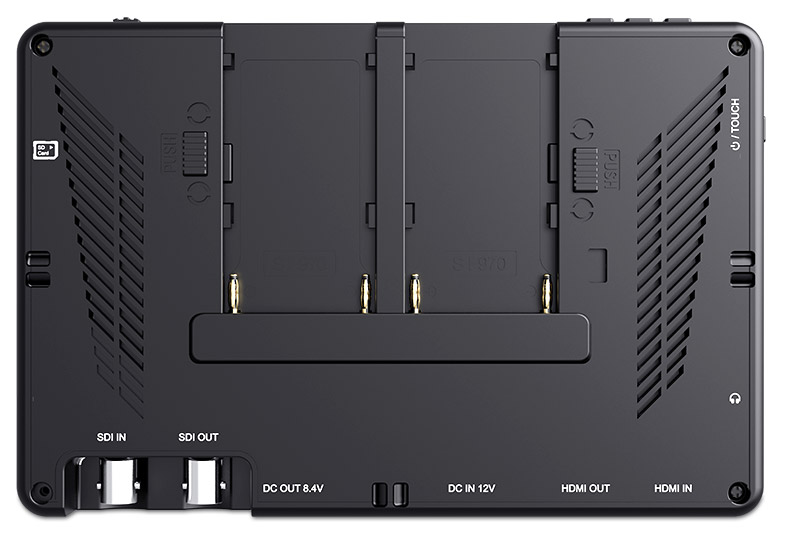

Innovative Power Supply Design
- The new design also features upgraded batteries and supports two standard L Series batteries for Sony. You get 2 rear battery slots for mounting L Series batteries for Sony, so you have enough power for the brighter screens. Plus with 2 battery slots, you can change batteries without interrupting monitoring! A 12v universal power supply can be used on studio or on location use.
- For Sony Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70 series.


Package Included:
- 1 x Monitor
- 1 x HDMI Cable
- 1 x Tilt Arm
- 1 x Manual

Note:
- Battery is not included.
