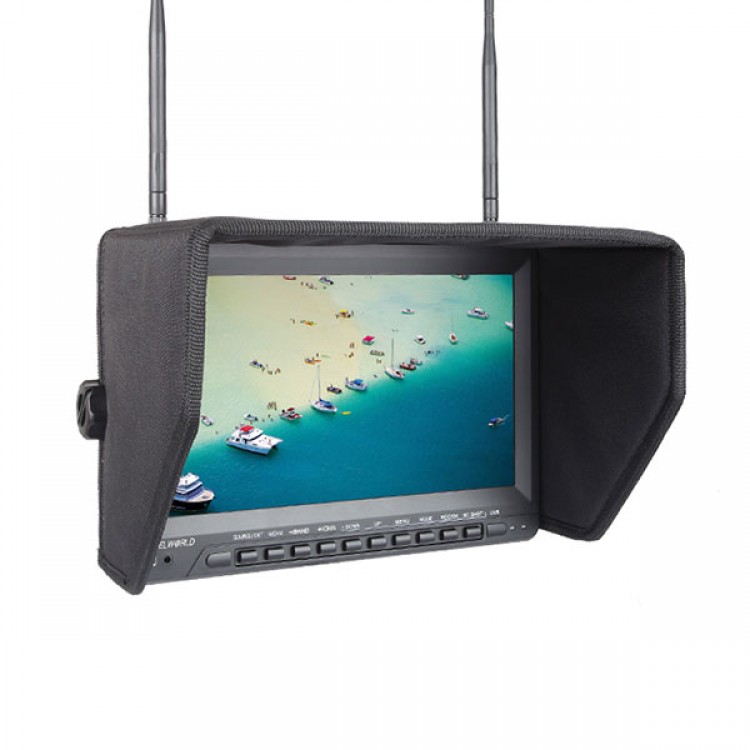

Feelworld PVR-1032 10.1" DVR HD Monitor / Battery Wireless 5.8G Receiver SC Shot

Feelworld PVR-1032 10.1" DVR HD Monitor / Battery Wireless 5.8G Receiver SC Shot

Description
- 10.1'' FPV Monitor built-in battery dual 32CH 5.8GHz diversity  receivers
- Model    PVR1032
- Brightness    500cd/m²
- Dot Resolution    1024*600 pixels
- Dot pitch    0.2175 (H) x 0.2088 (V)
- Contrast Ratio    500:1
- Aspect Ratio    16:9
- Response Time    10ms
- Backlight    LED
- Viewing Angle    50°/50°（L/R）     30°/50°（U/D）
- Support video format    PAL-4.43;NTSC-3.58
- Built-in battery    7.4v/2200mA（2 hours）
- Input Signals    HDMI、VIDEO、AUDIO、RF
- Output Signals            Video,3.5mm Earphone Jack
- Input Voltage    DC 9-18V
- Power Consumption    "≤15W
- WorkingTemperature    -20℃～50℃
- Storage Temperature    -30℃～65℃
- Install Way                1/4""-20 Thread mounting socket
- Unit Size    259.9mm x 180mm x 28mm
- Unit Weight    790g（With built-in battery）

Advanced Features
- Built-in integrated lipo battery
- Channel Auto searching ,selection via button
- Best Channel Receiption via Antenna Auto-switching
- 5.8GHz,32 Channels Receiver
- High resolution 1024x600,Bright 500cd/m²
- Portable DVR,TF Card max up to 32G
- screenshot shortcuts
- Motion Detection,Cycle Recording
- No blue screen
- High Sensitivity:-90dBM
- Compable with all 5.8GHz transmitters 32ch, such as Fatshark, Boscam
- Not affected by 2.4ghz radio controller

Photography Functions
- Peaking Focus Assist
- Check Field(Red,Green,Blue,Mono)
- Camera 5D II Mode
- Screen Marker
- Centre Marker
- 4:3&16:9 image adjustable
- Full Screen Display in mode of Monitoring & Recording

Application
- Professional FPV Monitor
- Wireless Baby Monitor
- Wireless video leisure goods
- DVD/DVB AV wireless transfer
- Engineering construction monitor
- Wireless camera security system
- Wireless video medical apparatus
- Wireless visual reversing camera transmission

Standard Accessory
- Two Antenna
- Li Battery
- Sunshade
- Power Adapter
- Operation Manual
