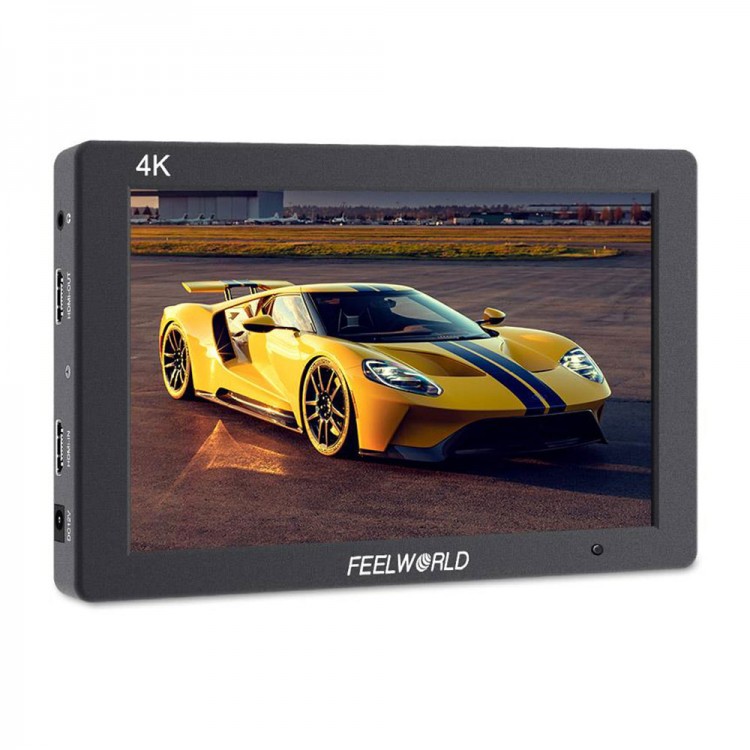

Feelworld T7 PLUS On-Camera Monitor Camera Field Monitor Aluminum Shell 4K HDMI For Video Shooting

Feelworld T7 PLUS On-Camera Monitor Camera Field Monitor Aluminum Shell 4K HDMI For Video Shooting

Features:

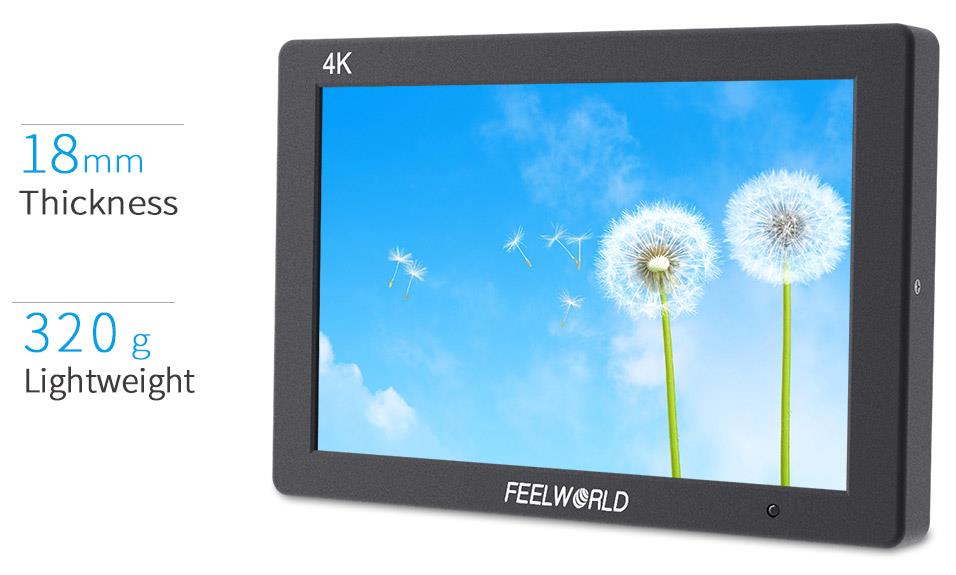

Ultra-thin Lightweight Design
Specially designed to merge portability, and functionality, 18mm thickness and weight 320g. The T7 PLUS gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.


IPS Wider View Angle 160°
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. T7 PLUS IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.

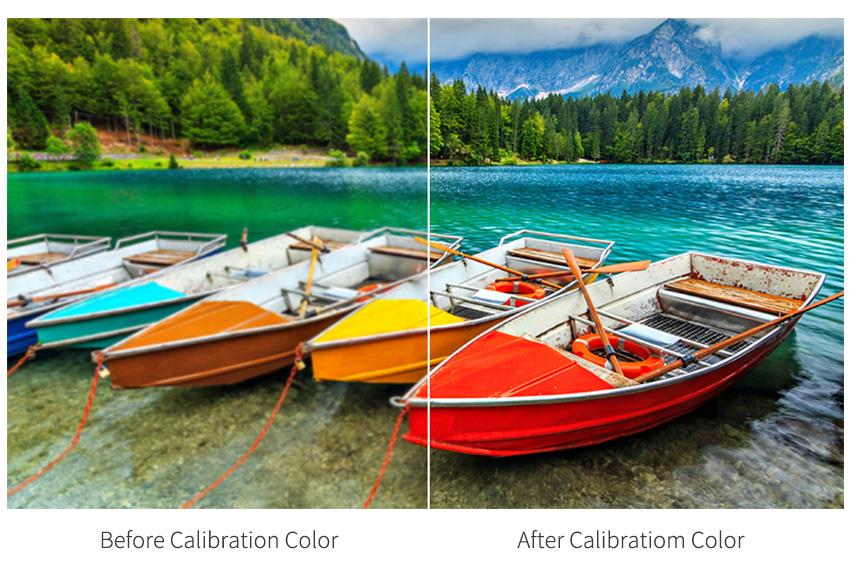

True Color. Professional Color Calibration

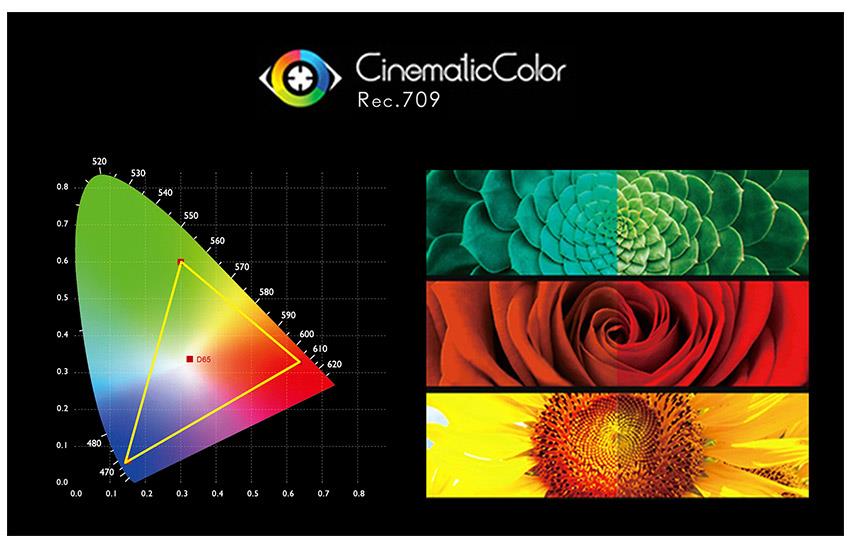

Use Rec.709 color standard
FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.


Accurate Color Reproduction
FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, present the clear image and natural color, ensuring accurate color reproduction, to reproduce the physical nature of the shooting, enabling users to accurately evaluate the quality of various input video signals.

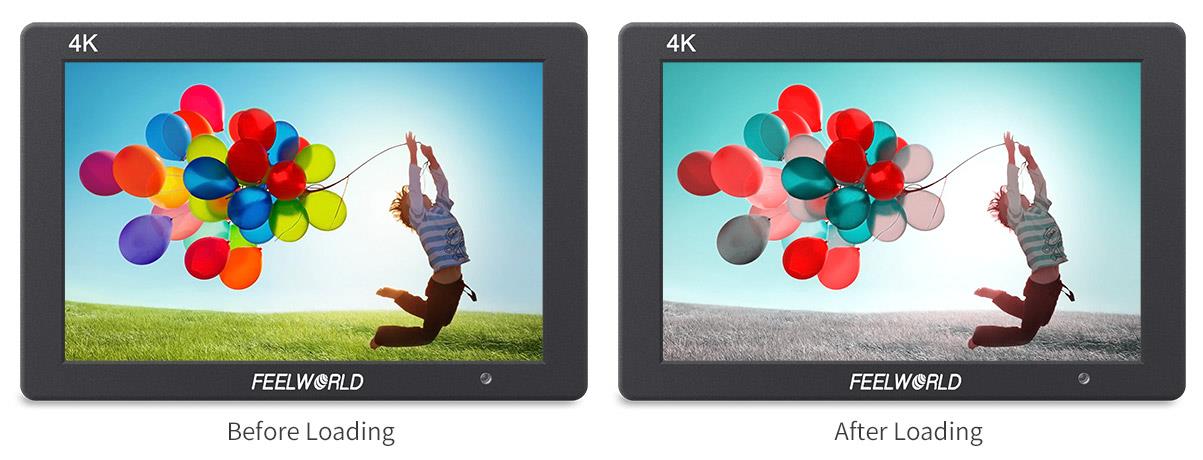

Load Custom 3D LUTs, Preview Filming Look in Field Shooting
Support to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use 4 built-in LOG to Rec.709 video or upload .cube files ( A single file must not exceed 7.9M, supports files with LUT_3D_SIZE of 16, 17, 32, 33, 64, 65). The user stores the LUT document in the root directory of the U flash drive, and imports via connecting the USB adapter cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.

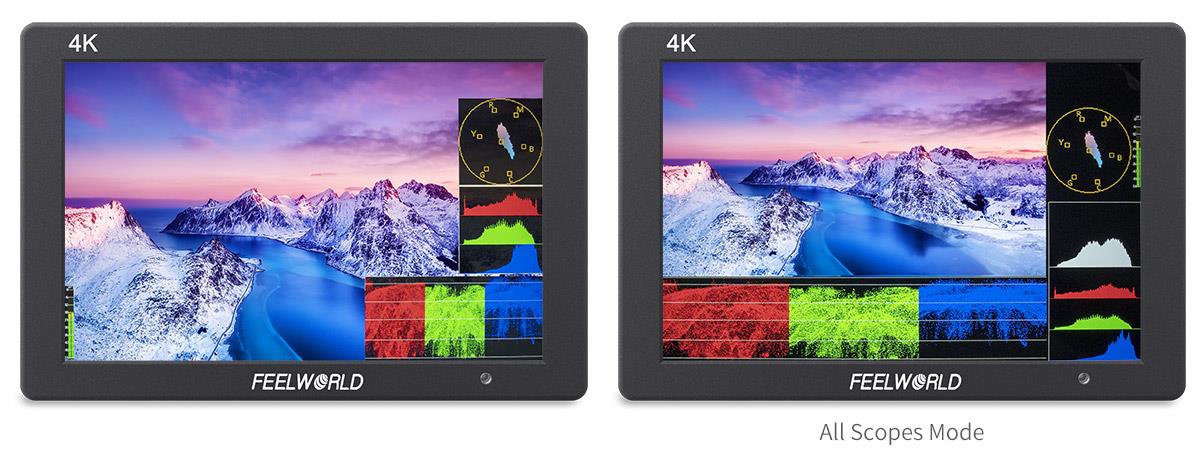

Accurate waveform monitoring
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use T7 PLUS's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. T7 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

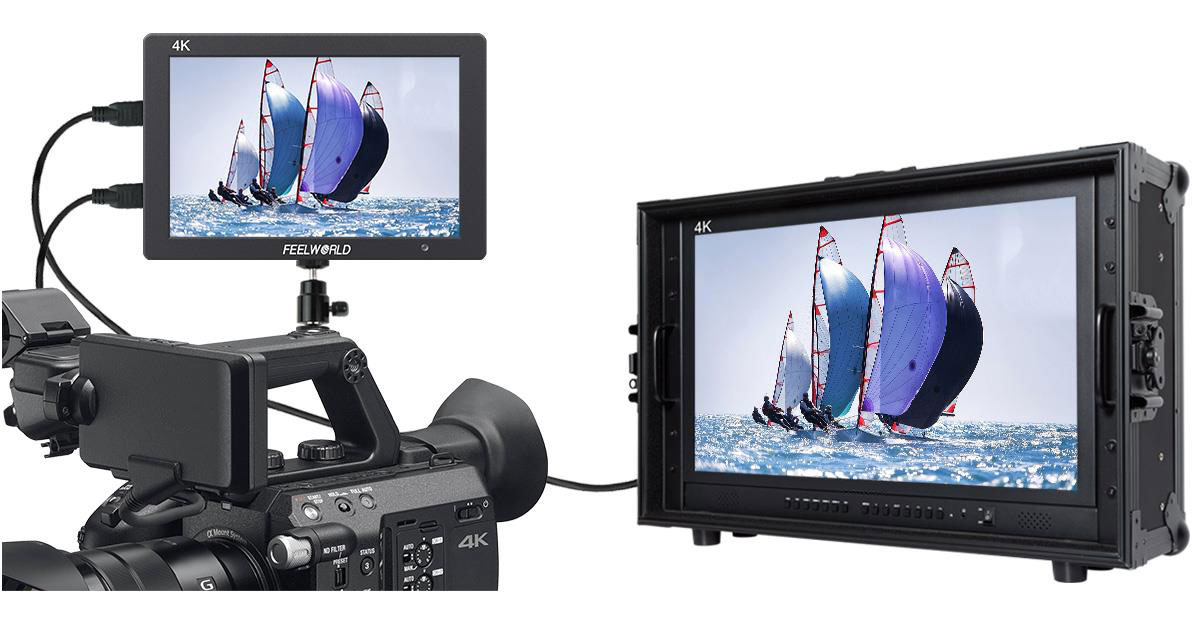

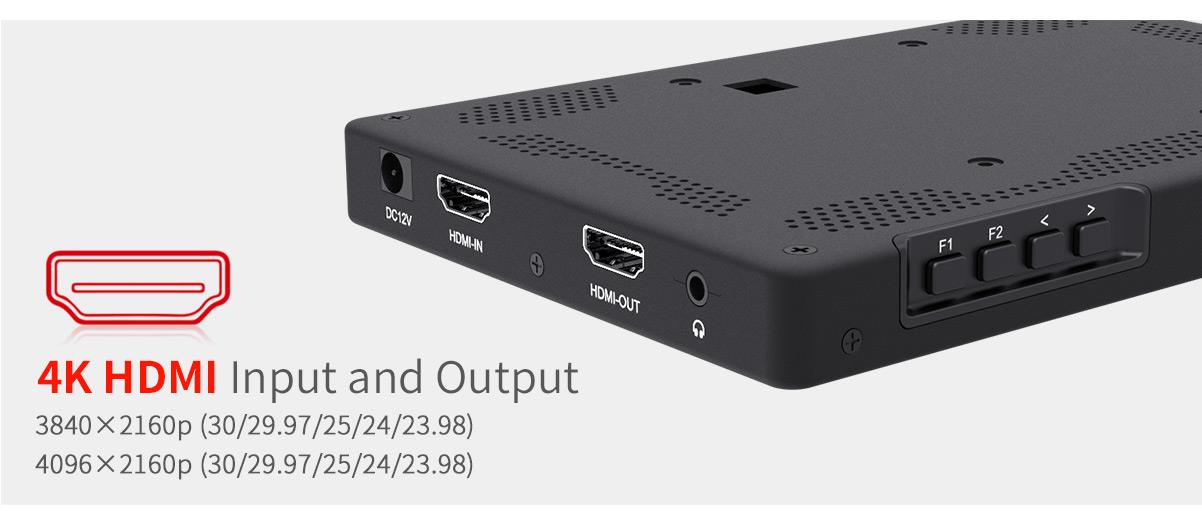

4K HDMI Input and Output
The T7 PLUS supports 4K at 30Hz signal input and output, which is transmitting without loss and the screen is clearer. It can connect to director monitor or other displays to display live picture simultaneously.

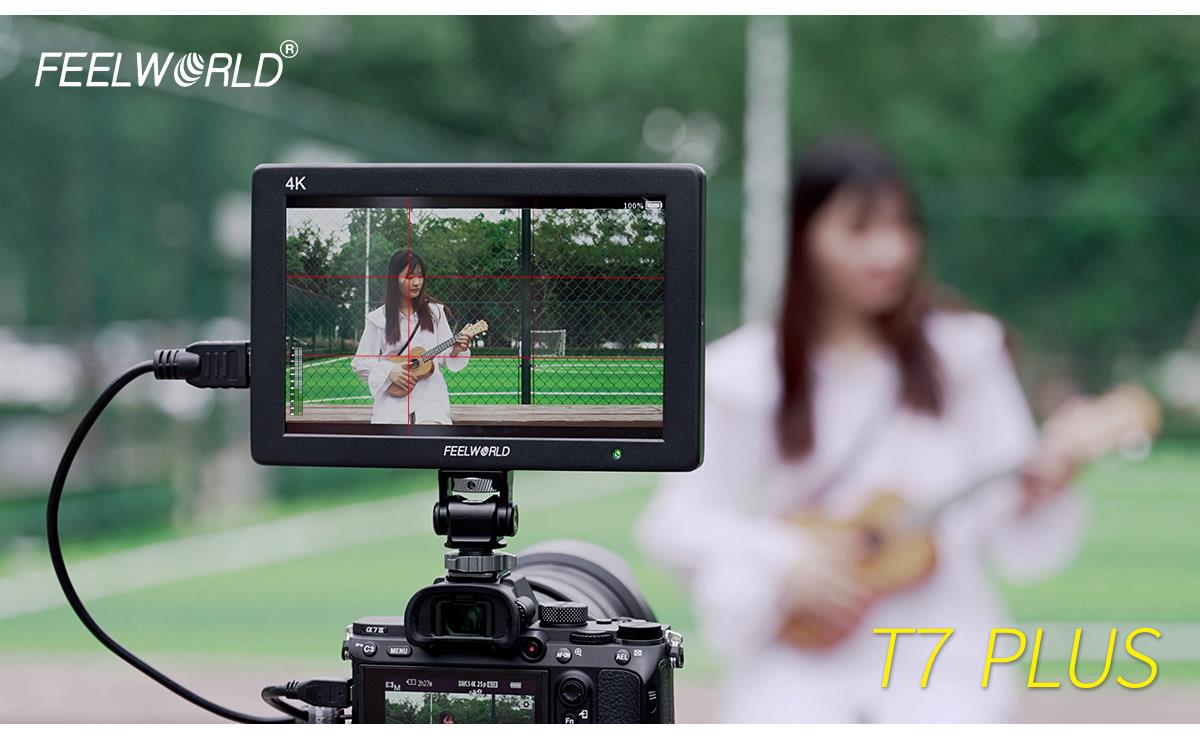

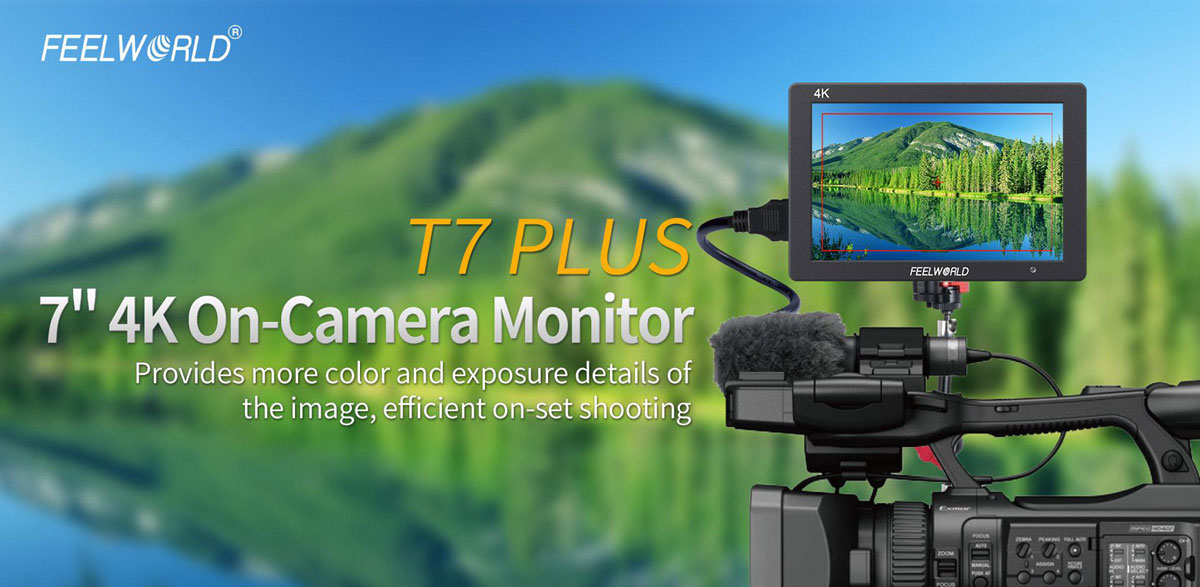

7" 4K Full HD On-Camera Monitor
FEELWORLD T7 PLUS is a 7-inch full HD on-camera monitor. It features aluminium alloy housing, durable; the easy button interface design brings you confidence in operation; supports 4K HDMI at 30Hz signal input and output. For function, it upgrades waveform, histogram, vectorscope, 3D LUT on the basic of T7. Provides more color and exposure details of the image, optimizes the workflow and improves work efficiency.

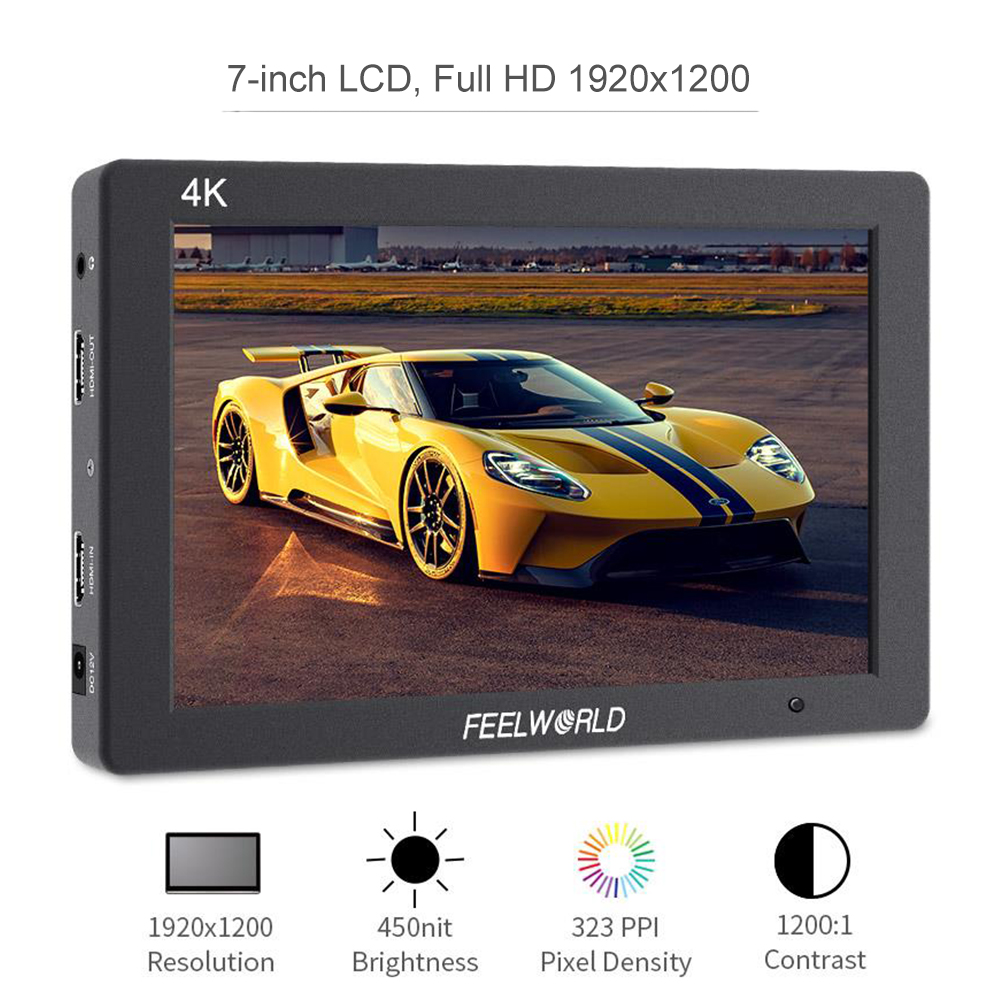

7-inch LCD, Full HD 1920x1200
Viewing clearly and catch every detail on set
The T7 PLUS With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), The pixel density of the T7 PLUS packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can’t define individual pixels. Sharper images, brings you the perfect visual experience.

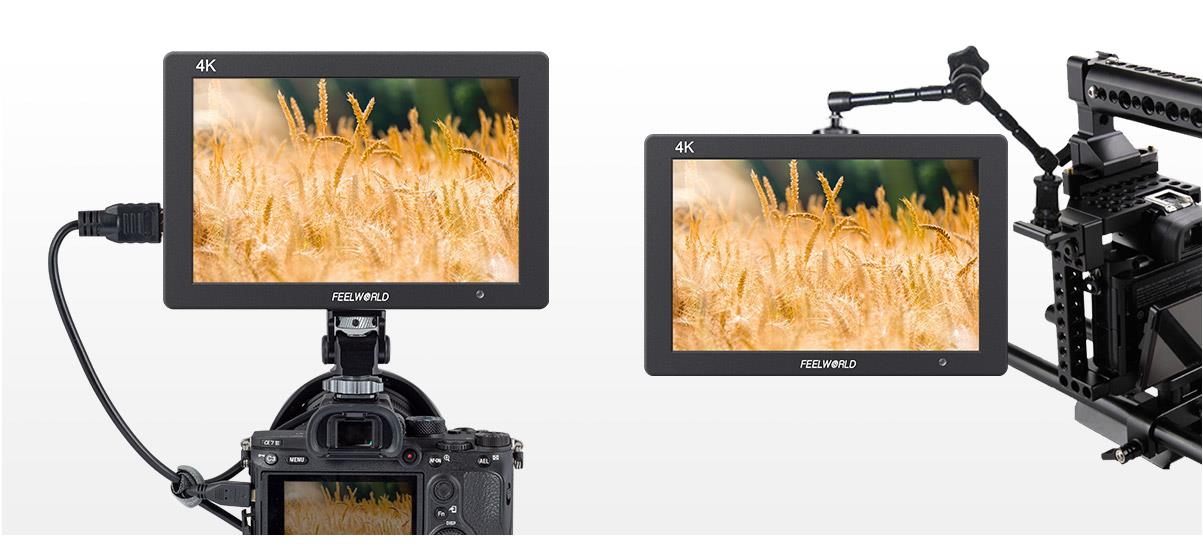

Multiple Installation Methods
Standard 1/4" -20 mounting thread
The T7 PLUS is equipped with standard 1/4" mounting thread (top and bottom), easy to install on mini hot shoe, magic arm, etc. Combined with image flip function, convenient for filed shooting.

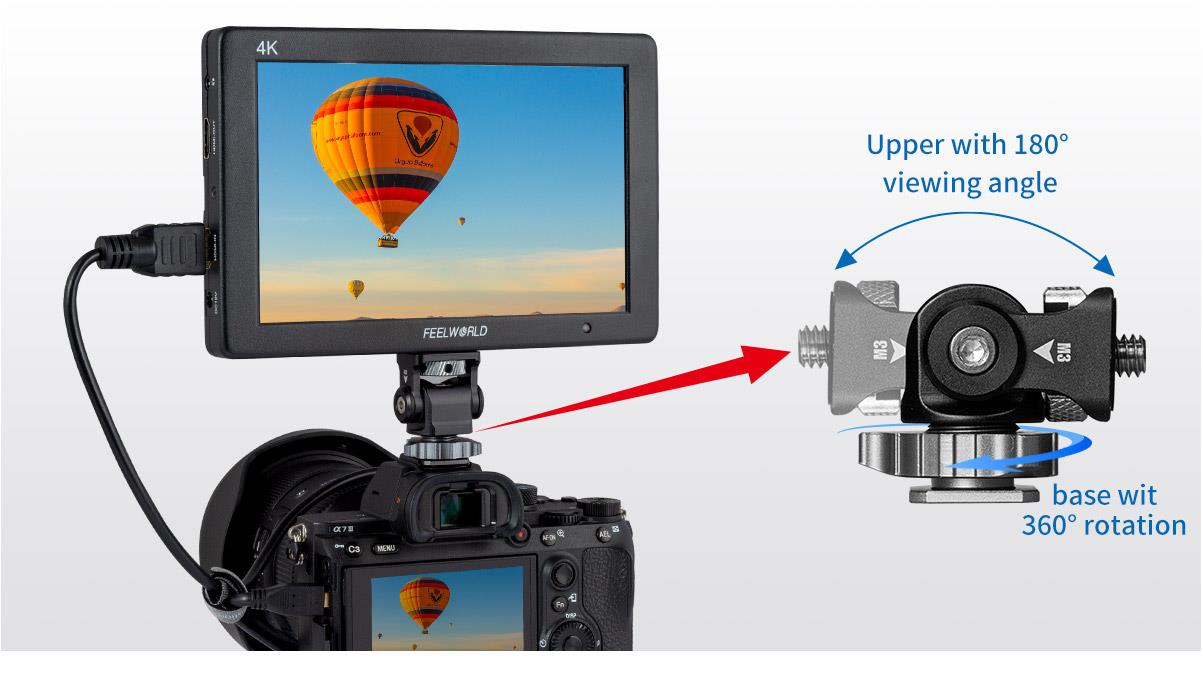

Mini Hot Shoe Mount Adapter
Upper with 180° viewing angle, base with 360° rotation
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

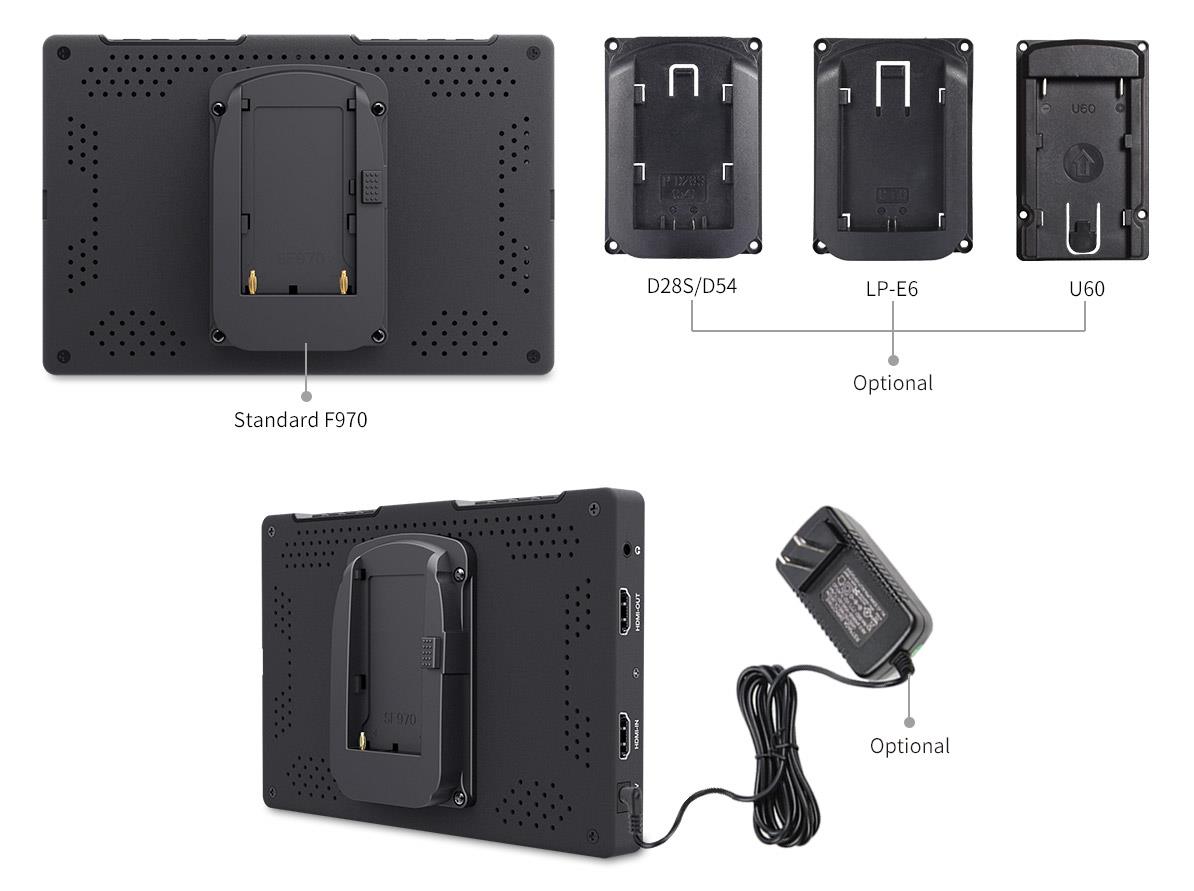

Flexible Battery System
The T7 PLUS has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional). Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

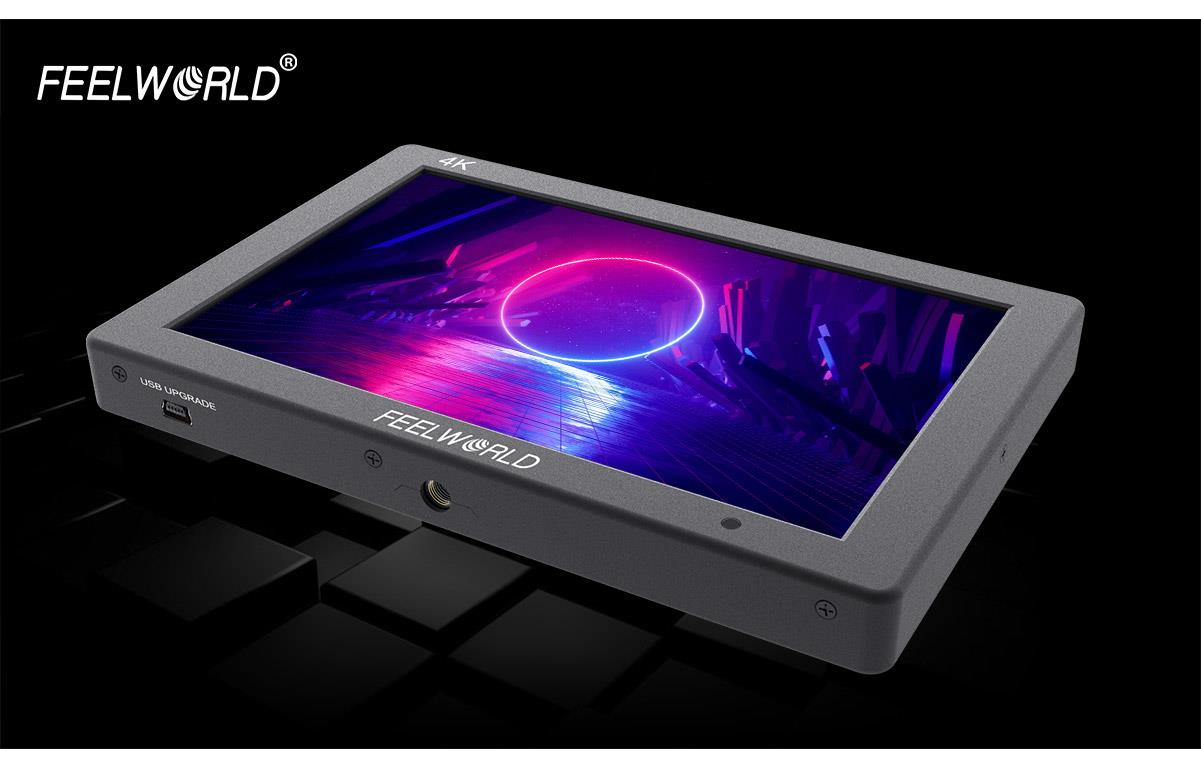

Aluminum Alloy Frame
Lightweight and durable
The frame of the T7 PLUS is made of aluminum alloy which means you get an incredibly sturdy metal that barely adds any weight to your camera. It's also comfortable enough and and still light enough which makes it perfect for bracing the mounting points.

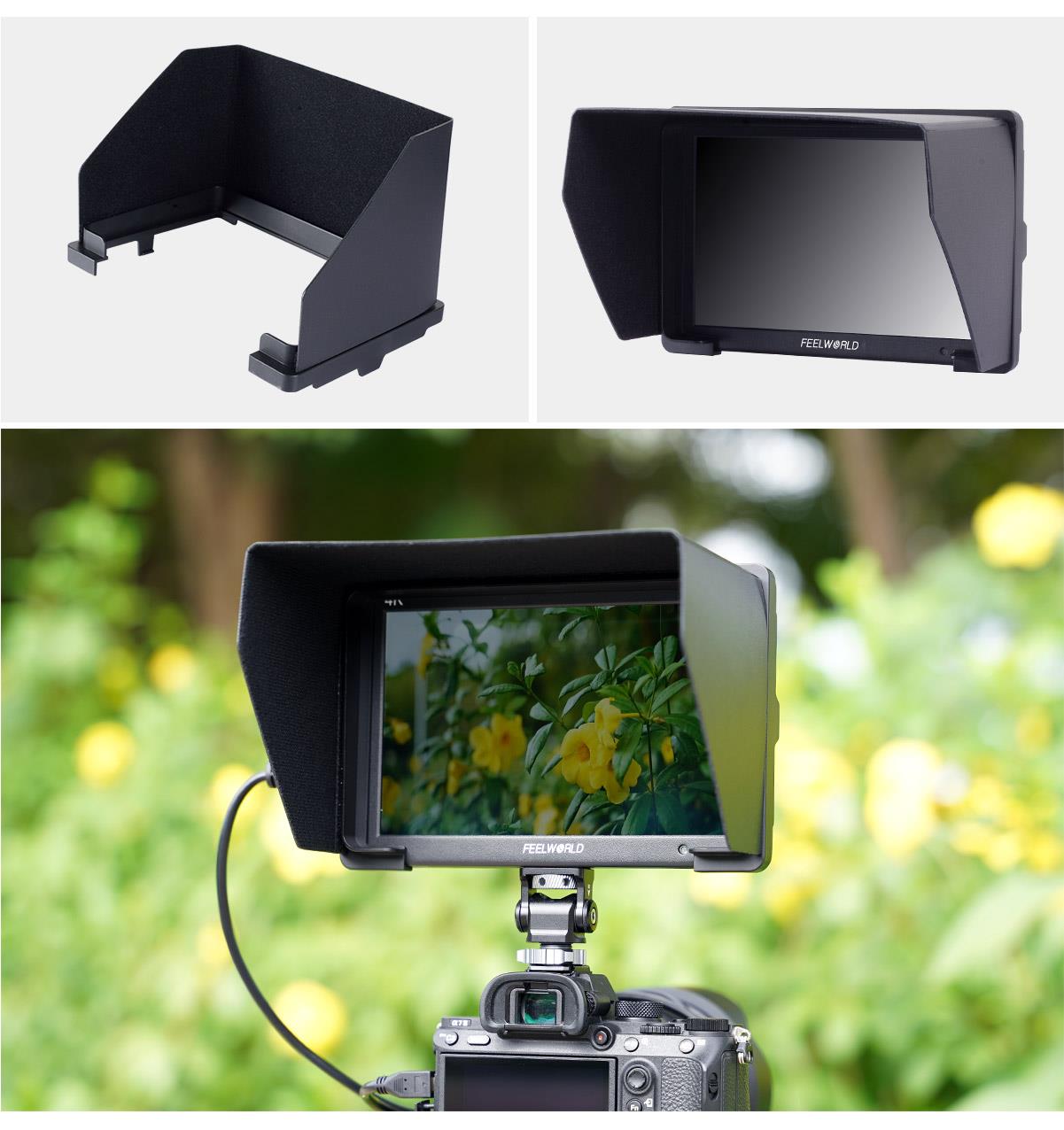

New Generation Collapsible Sunshade
For easier viewing in bright environments. T7 PLUS offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.

Packing List:
- 1 x Monitor
- 1 x Mini HDMI Cable
- 1 x USB Adapter Cable
- 1 x Sunshade
- 1 x Mini Hot Shoe Mount+Hex Wrench
- 1 x F970 Battery Plate
- 1 x Operation Manual

Note:
- Battery and power adapter are not included. They need to be bought separately.
