Feiyu FY-41AP-A Flight Controller for RC Fixed-wing Airplane w/ Air Speed Sensor & Power Manager

Feiyu FY-41AP-A Flight Controller for RC Fixed-wing Airplane w/ Air Speed Sensor & Power Manager

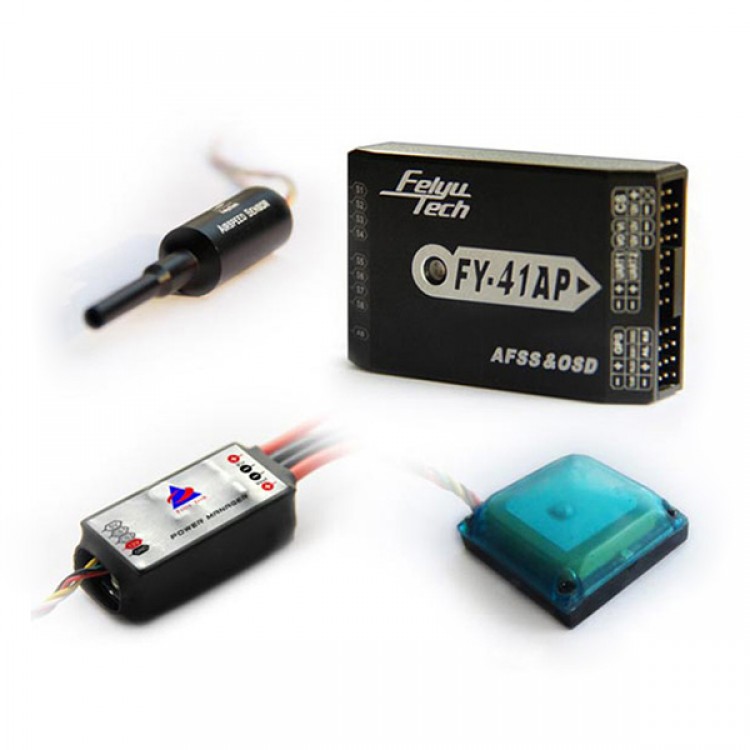

FY-41AP FPV Inertial Attitude Stabilizer includes
1.FY-41AP Module
2.FYGPS Module (10HZ-5V)
3.Current Sensor & Power Manager
4.Air speed sensor
5.Related Wirings

Specifications
1.FY-41AP module
Weight: 34g   Size:5.9*1.5*3.9cm
2.FY-GPS module
Weight:24g  Size:32mm * 32mm * 13.5mm
3.Airspeed sensor
Weight: 9gSize: 64.5mm * 13.5mm * 13.5mm
4.Power manager:stable +12V
5.Packing size: 13*6*8.5cm, Total weight: 0.4Kg

FY-41AP works on fixed wing aircraft
1.Flight Stabilization
2.3D Aerobatic Flight
3.Fixed Altitude and Heading Lock Flight
4.Auto Return To Home
5.Preset Path and Point Navigation Flight
6.PTZ Control

      Damping installation is the key for 41AP to play multi-rotor aircraft flight performance well. Otherwise the aircraft can't keep balance, may cause roll or pitch or other abnormal conditions.
     This vibration absorbing mount is product by FeiYu Tech,it can be used on Fixed wing and Multi-rotors aircraft.When 41AP for multi-rotors control you must use it.

      FY-41AP can connect the air speed sensor which automatically controls throttle and can make the aircraft more stable.
      FY-41AP comes with a power management module with an integrated current sensor. You can power both your FY-41AP and your servos at once, or utilize the power management module to charge them separately.

You can set up parameters using your remote control or your computer.
      OSD is an essential part for FPV. The FY-41AP can adapt both PAL and NTSC video signals. The entire adaptive process is completed approximately within 1 second.
       Integrated OSD Video Overlay System, FY-41AP overlays flight telemetry information onto video image. Information displayed includes: Altitude, Speed, Direction, Home Direction and many more.

 GCS ground station software, used to set the flight parameters, mission planning, monitoring in flight. Software integration of electronic map function can through the map software () the Google earth live map out into the GCS software. The main function is
Parameter Settings — Control parameters setting, course setting, etc
Real time monitoring — It can monitor flight attitude. And via the GCS software you can change the flight altitude in real time and realize the mouse click flight.
Record and monitoring flight —You can monitor and download flight path via the GCS software in your computer.
