FeiyuTech FY-41AP Lite & OSD Autopilot Flight Control System For Fix wing FY 41AP Lite Long Range System

FeiyuTech FY-41AP Lite & OSD Autopilot Flight Control System For Fix wing FY 41AP Lite Long Range System

Supported aircraft:
1, Normal / Traditional fixed-wing planes;
2, Delta-winged plane with rudder;
3, Delta-winged plane without rudder;
4, V-tail plane with aileron;
5, V-tail plane without aileron;

Function Introduction
- Deactivated Mode ">—— In this mode, the FY-41AP Lite auto stabilization is turned off. The aircraft is completely under pilot control.
- Stabilized Mode ">—— Level flight is automatically maintained, making flight simple, especially for beginners. If a pilot feels the plane is out of control, simply reduce input control and the plane will automatically recover level flight.
- 3D Mode ">—— If no input is given by the pilot (all sticks in the middle position), 3D mode will lock the current aircraft attitude. Therefore the aircraft can be easily maneuvered to complete a variety of 3D flight with added stability & smoothness.
- Fixed altitude & Heading lock Mode ">—— This mode maintains aircraft flight course & holds the altitude on activation. By using GPS data, the system automatically corrects flight course deviation & maintains straight-line flight.
- Auto Return To Launch Mode (RTL) ">—— Upon activation of this Mode, the aircraft will automatically return to the Home point, maintaining its current altitude. Upon reaching the Home point, it will initiate auto circling.
- Feiyu tech kindly remind you: You should to do the firmware upgrade separately for FY-41AP Lite control module and OSD module . UART1 is the interface connects to the data radio, computer serial port to do the firmware upgrade for FY-- 41AP Lite control module.If you want to upgrade the firmware of FY-41AP Lite OSD module
OSD Video Overlay System Function
First Person View (FPV) ">—— FY-41AP Lite has an integrated OSD video overlay system that presents critical flight information on the video for easy enjoy FPV, at the same time, Auto stable, Fixed altitude & Heading lock, Auto Return To Home function will make FPV operation more easy.
OSD is an essential part for FPV. The FY-41AP Lite can adapt both PAL and NTSC video signals. The entire adaptive process is completed approximately within 1 second.
Integrated OSD Video Overlay System, FY-41AP Lite overlays flight telemetry information onto video image. Information displayed includes: Altitude, Speed, Direction, Home Direction and many more.


Specification:
- Supported servo output : 50Hz refresh frequency
- Recommended Transmitter : PCM or 2.4GHz with minimum 6 channels
- FY-41AP Lite Module Working Voltage : 5.3V@0.2A( Powered by Power Manager)
- Air speed senor : 0 ~ 200KM/h
- Power Manager : 35g(50×24×18mm)
- Working Voltage Range : Power of battery 7~26V (2S ~ 6S)
- Measuring current : 0~100A
- Power for FY-41AP Lite module : 5.3V@2A
- Power for Video transmission system : 12V@2A
- Operating Temperature : -10°C ~ 50°C
- Assistant Software System Requirement : Windows XP sp3 / Windows 7 / Windows 8

Hardware
- FY-41AP Lite: 20g (61×39×14mm);
- GPS :24g (32×32×13.5mm);
- Air speed senor:9g (64×13.5×13.5mm);
- Power Manager:35g(50×24×18mm);

Package Include:
1.FY 41AP Lite Module
2.FYGPS Module(10HZ-5V)
3.Current sensor & power manager
4.Air speed sensor
5.Related Wirings

Packing Weight: 0.2 kg
Single Weight: 0.02 kg

FY-41AP Lite Compared With FY-41AP

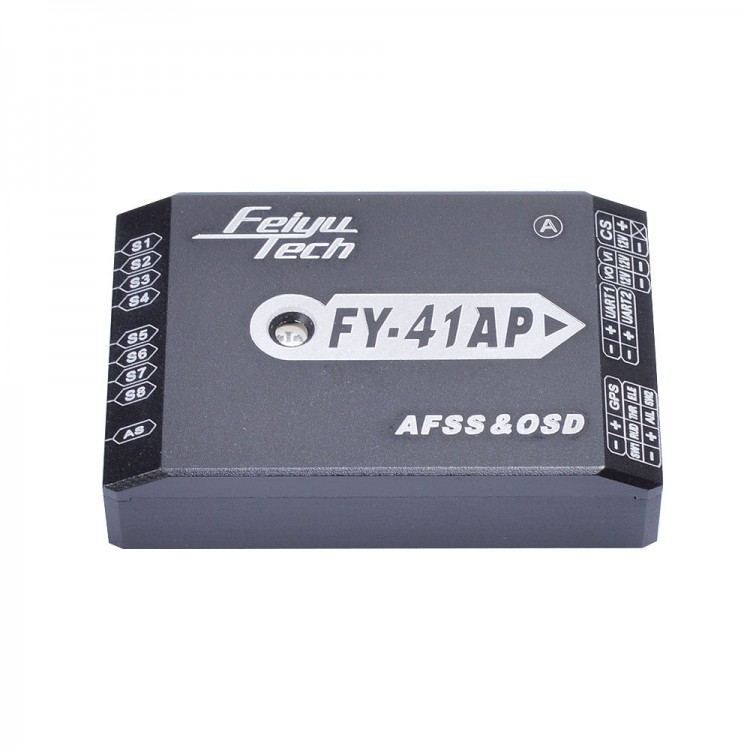

FY-41AP Lite is an inertial attitude measurement instrument used for FPV flight on fixed-wing aircrafts. It has an integrated OSD video overlay system that presents critical flight information such as power management, airspeed, altitude, and flight direction via its electronic compass, allowing for a clear visual flight while ensuring key information is within sight.

Brief Introduction
FY-41AP Lite is an inertial attitude measurement instrument used for FPV flight on fixed-wing aircrafts. It has an integrated OSD video overlay system that presents critical flight information such as power management, airspeed, altitude, and flight direction via its electronic compass, allowing for a clear visual flight while ensuring key information is within sight.

Flight stabilization is achieved via an integrated 3 axis gyro, 3 axis accelerometer and a barometric pressure sensor. This enables the module to accurately measure flight attitude, earth azimuth & relative altitude to achieve:
        - Extremely stable conventional flight pattern
        - Stabilized 3D flight
        - Automatically return to home (RTL)
        - Fixed altitude flight
        - Heading lock flight
        - Auto circling over a fixed GPS location.
