Fever Level PC Home Use Amplifier HIFI Large Power Mini 2.0 Pure Amplifier

Fever Level PC Home Use Amplifier HIFI Large Power Mini 2.0 Pure Amplifier

Description:

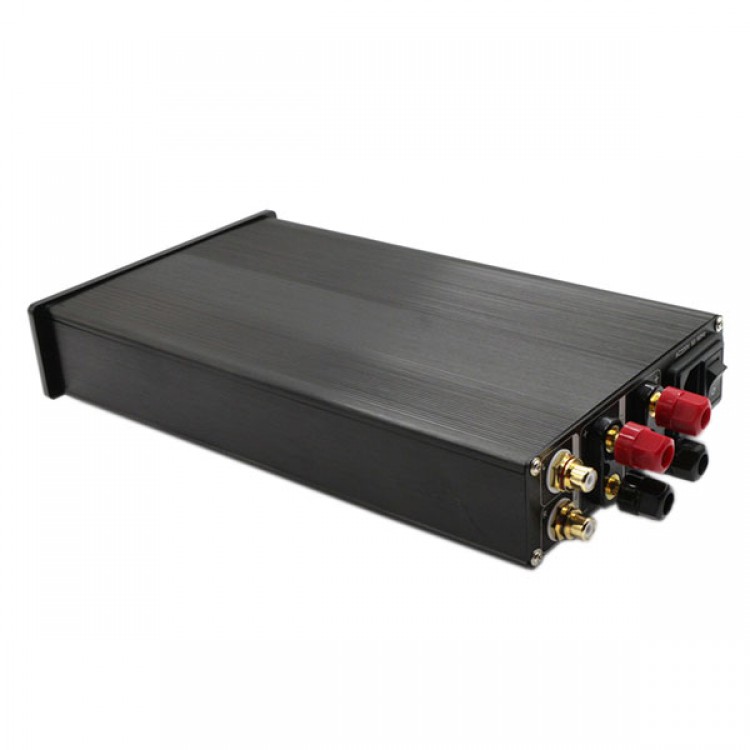

Power appearance: Black brushed aluminum alloy shell + metal wiredrawing Red + black drawing plate + trademark engraving
Power amplifier size: 250mm*145mm*43mm (no prominent part)
Power amplifier net weight: 1.2Kg

Specification:
Amplifier form: two vocal tract with discrete parts fever pa
Output power: 80W+80W maximum power 160W+160W
Input sensitivity: 600-2000mV
Input impedance: 50K
Output impedance: 2-16
Damping coefficient: larger than 200
Ripple coefficient: <0.1%
Power supply technology: the design of the power supply without feedback audio frequency, high efficiency and low ripple, ultra small volume, charging and discharging speed technology and high frequency decoupling technology;
Heat radiator|: chassis integrated cooling
Front and rear panels: aluminum alloy black brushed panel
Input terminal: Gold Plated RCA socket
Output terminal: copper plated copper wire column
Amplifier frequency response: 10Hz-30kHz (+ 0.5dB)
Impact response: strictly through the square wave test
The degree of separation: more than 106dB
SNR: >95dB (A weight)
Distortion: THD<0.05% (8, 30W, 1kHz)

Function configuration
Bass boost frequency: 30HZ-90HZ adjustable
Super bass gain: 0DB-12DB adjustable
Volume control: 0-100dB, placed in front of the PA
Input port: Line input port
Power switch: rear power switch
Protection function: speaker and chip synchronization protection, short circuit, over-current protection, drift, shock, delayed start etc.
Power output: 4 output terminals around the channel separation, a power amplifier board
AC power source: AC210-230V/50Hz-AC110-120V/60Hz convertible, the factory default condition for AC210-230V/50Hz in order to secure and voltage switch point we design on the motherboard, so as to avoid transfer chaos.
