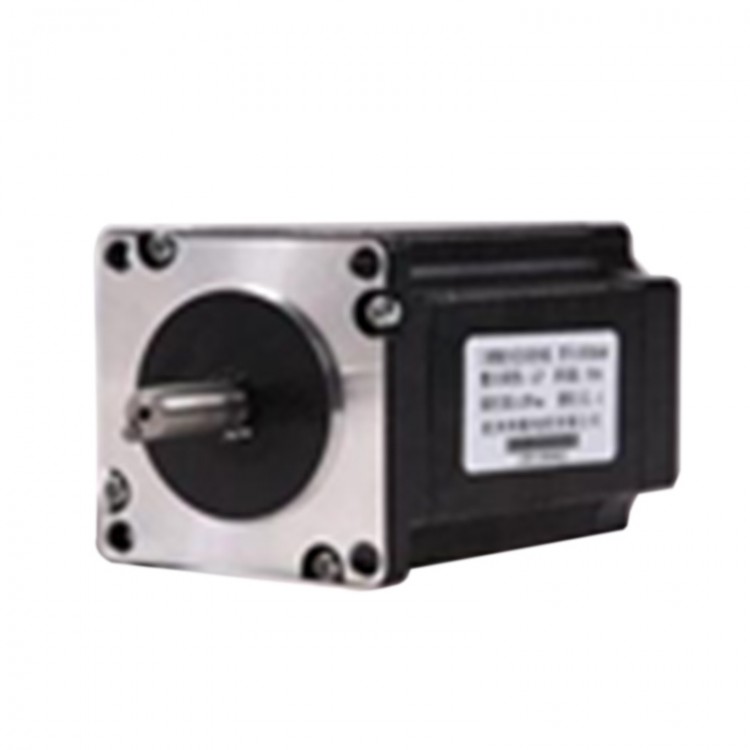

FHB368 1.2 Degree 5.8A 1.5N.m Three Phase Hybrid Stepping Motor for CNC
Parameters:
- Step ange: 1.2 degree
- Body Length: 76.4mm
- Holding torque: 1.5N.m
- Current: 5.8A
- Rotor inertia g·cm²: 380
- Weight: 1.1kg
- For motor: HBQ3066D
- Shaft diameter: 8.0mm
- Rotor stretch (mm): double plate 3x15
- Resistance: 0.29Ohm
- Inductance: 0.39mH
- Stepping accuracy: -+5%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
Installation precaution:
When motor is mounted, please be sure that its front cover should be installed to the seam allowance position and pay attention to the fit tolerance and strictly ensure that the electrical motor rotor is with the load.
Package included:
- 1 x Stepper Motor
