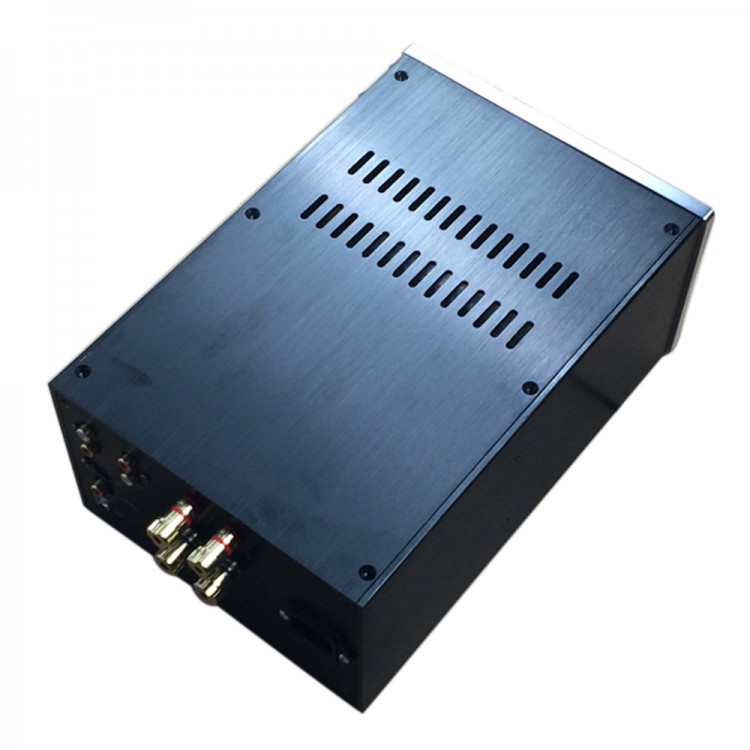

Fiber Coaxial USB AUX Analog Signal Input STK4234MK5 100W+100W HIFI Stereo Amplifier for Audio
Description:
- Four froups analog signal input, but no decoder or USB input board.
- Built-in HIFI circuit and super power triode
- With perfect horn protection circuit to drive output relay with
- 63V8200UF capacitor*2
- Coupling capacitance: 2.2UF WIMA
- Pure copper and gold plating terminal output, can use banana plug

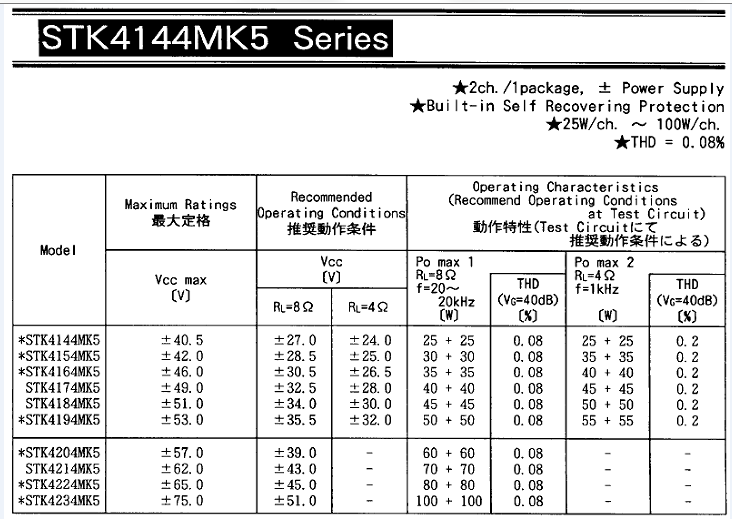

STK4234MK5 Parameter table:
From the table,
- When operating is -+51V, 8Ohm load is for output power 100Wx2,distortion is 0.08%
- Can drive 10inch audio
Recommand operating condition:
- AC30-35Vx2,
- Transformer power:>200W,
- Max.voltage<40V
- Radiator: >0.5kg
Parameters:
- Output power: 100Wx2 (class AB, RMS, 8Ohm, per channel)
- Harmonic distortion: <=0.03% (1kHz, 1W)
- The signal-to-noise ratio:>= 99dB (A weight)
- Frequency response: 20Hz-20kHz (+ 0.5dB)
- Input impedance: 100K
- Output impedance: 4-8Ohm
- Color black casing + aluminum alloy panel
- External dimensions: (H * W * L): 288 * 198 * 120mm
- Net weight: 6.7kg
Package included:
- 1 x Amplifier
