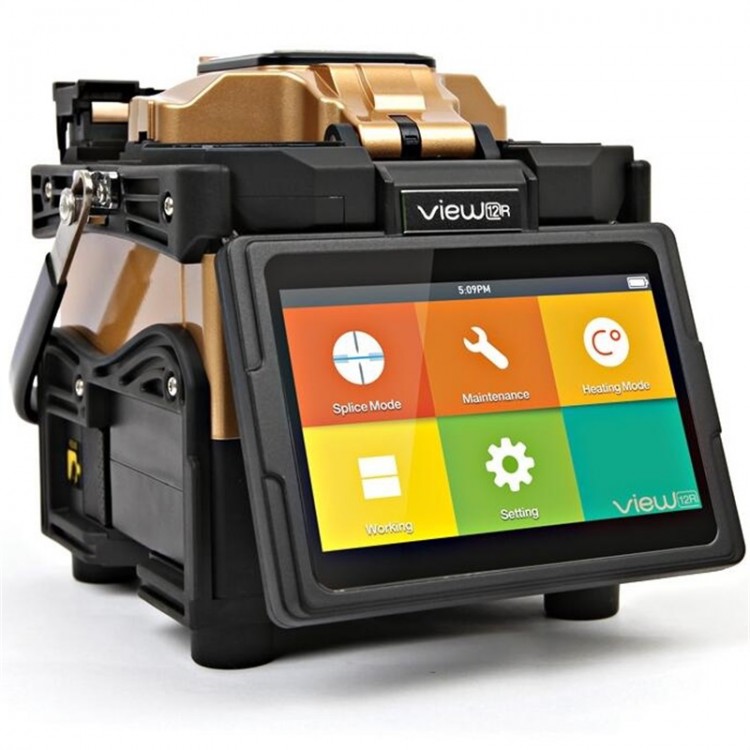

Fiber Fusion Splicer Machine 5" Color Touch Screen 800x480 for Ribbon Fibers Inno View12R

Fiber Fusion Splicer Machine 5" Color Touch Screen 800x480 for Ribbon Fibers Inno View12R

Description:
View12R is one of the most reliable fusion splicers on the market, featuring precise  alignment technology for multiple-core optical fibers with coating. With rubber coating on its surface, it can be applied to severe environment. View12R uses an industrial-grade quad-core CPU, which is 8 times faster than that of the previous generation IFS series. Its GPU has a built-in WcatPro graphics accelerator for faster response. Simple and intuitive graphics operating system and its 5-inch 800x480 LCD capacitive touch screen are built for easy viewing of the fiber with the naked eye. With higher electric capacity, it enables operations up to 210 times. Furthermore, its advanced heating groove makes its heating speed as fast as 20s. We speed up efforts to offer premium operation experience to users by improving our technology.

Features:
- Special V-type groove for splicing ribbon fibers
- Its magnification times varies from 33X to 60X
- Fast Speed: it takes 14s to splice and 20s to heat
- 5 Inch high resolution capacitive colorful touch screen
- 3 LEDs with white light & backlight for easy operation at night
- High electric capacity enables typical splicing up to 210 times and heating
- Without reflector glass, it cuts down core alignment time, improving working efficiency
- Ceramic hammer enhances its durability
- Removable SOC heating fixtures on both sides
- The body is made of aluminum-magnesium alloy, which is light and sturdy
- Waterproof, dust-proof, windproof, anti-crash performance enable uses in severe environment

Parameters:
- Model: View12R
- Dimensions: 162 x 159 x 163mm
- Weight of Main Unit: 1.99kg
- Fiber Fixture: for 12-Core Ribbon Fibers/6-Core Ribbon Fibers/4-Core Ribbon Fibers
- Applicable Fibers: SM (ITU-T G.652&G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
- Fiber Placement & Cutting Length: 10mm to 13mm
- Splicing Modes: Preset 39 splicing modes / up to 100 splicing modes
- Typical Splicing Loss: SM: 0.05dB / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB (measured by the cut-off method of ITU-IT standard)
- Lighting: 3 LEDs with White Light & Backlight Button
- Splicing Time: 14s
- Length of Applicable Heat-Shrink Tubes: 40mm, 60mm
- Heating Time: Preset 3 Heating Modes/Typical Heating Time of Heat-shrink Tubes: 20s
- Storage Splicing Results: The latest 2000 records
- Tension Test: 1.96 to 2.25N
- Operating Environment:
  Operating Altitude: 0 to 2000m above sea level;
  Relative Humidity: 0 to 95%;
  Temperature: -10 to 50℃
  Max. Wind Speed: 15m/s.
- Storage Environment: Relative humidity 0 to 95%, -40 to 80℃
- Display: 5.0'' 800x480 high resolution capacitive colorful touch screen; Displays X, Y, XY
- Magnification & Display of Optical Fibers: It varies from 33X to 60X
- Power Supply: Input AC 100 to 240V, DC 9 to 14V
- Splicing & Heating Times: Up to 210 times to splice and heat@9800mAh electricity
- Operating Ways: Via buttons & touch screen
- Self-adapted Discharge: Automatically adjust in accordance with the air pressure and environment temperatures
- Electrode Lifespan: Discharge up to 1500 times

Package Included:
- 1 x Fusion Splicer Main Unit View12R
- 1 x V-7 Fiber Cutter
- 1 x Optical Fiber Fixture for FH-4/FH-6/FH-12
- 1 x JS-180300 Charger Adapter
- 1 x CG-22 Cooling Rack
- 1 x E-27 Electrode Rod
- 1 x CD
- 1 x ACC-25 Power Cord for Charger Adapter
- 1 x NBX-35 Carry Case
