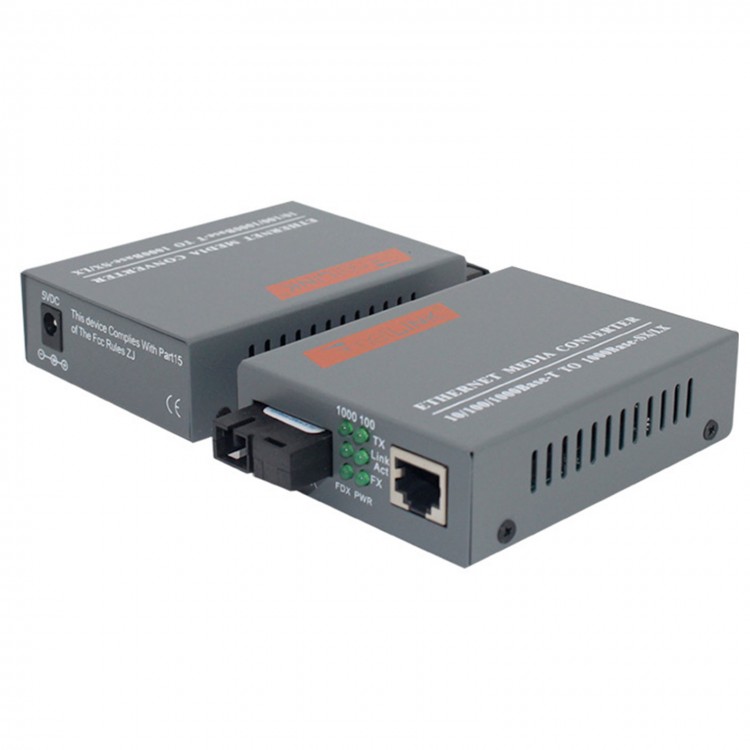

Fiber Optical Media Converter 10 100Mbps RJ45 Single Mode SC Port 25KM Media Converter HTB-3100AB 1Pair
Descriptions:
10/100M Ethernt Bidirectional fiber optic transceiver using the latest American KENDIN chip, high-quality single-fiber bidirectional optical transceiver integrated module (new giant brand-name products), stable performance, excellent quality. Apply to telecommunications, broadcasting, broadband network, the need to improve the fiber optic data traffic and high-performance, high-reliability network environment.
A RJ45 ports and a single-fiber the SC optical ports, photoelectric signal conversion between twisted pair and fiber optic;
Just a core fiber can be completed all the way signal transmission, improved compared to the dual-fiber double the amount of fiber-optic data transmission
Product parameters:
- Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards
- 10/100Mbps data transfer rate
- Support full-duplex and half-duplex way of working
- Provides a standard RJ45 interface and SC fiber interface
- RJ45 interface supports both 10Mbps and 100Mbps auto-negotiation function
- RJ45 interface with fast switch function
- EMI Certification: CE, FCC, VCCI, C-Tick
- Fiber Type Singlemode
- SC fiber optic interface type
- Wavelength 1310nm 1550nm
- Transmission distance 25Km
- Maximum transmit optical power -12.0 dBm
- Minimum emission power -19.0 dBm
- Sensitivity -34.0 dBm
- 15.0 dBm optical fiber link loss
LED Description:
- LED Colour Function
- FX 100 Green Lit when 100Base-FX operation
- FX Link/ACT Green Lit when fiber cable connection with remote device is good. Bliks when any FX traffic is present
- Power Green Lit when +5V Power is available
- FDX/Col Green Lit when full duplex mode is enabled. Blinking when collision is present
- TX 100 Green Lit when 100Base-TX cable operation
- TX Link/ACT Green Lit when TP cable connection with remote device is good. Blinks when any traffic is present
Package List:
- 1pair * Htb-3100 A/B
- 1pair * Power adapter
