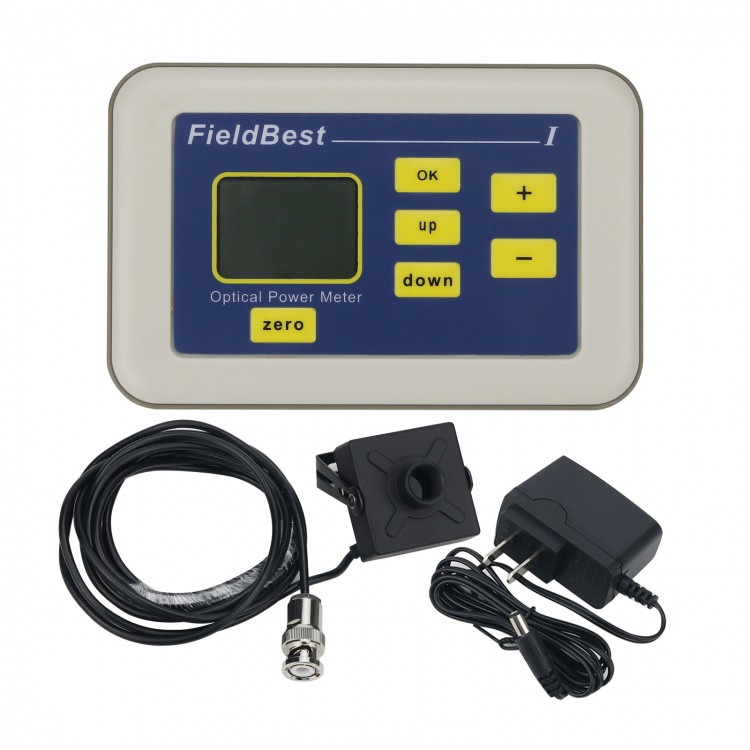

FieldBest Optical Power Meter OPM 10UW-100MW Photoelectric Type Laser Power Meter With Probe

FieldBest Optical Power Meter OPM 10UW-100MW Photoelectric Type Laser Power Meter With Probe

Product Information:
1. Range: 10uW~100mW, the highest power density of the measured laser is 30W/cm²
2. Wavelength response range: 400nm-1100nm
3. Fast response speed, updating 5 times per second
4. Digital Meter: Power can be sampled and counted at a certain time, the sampling interval can be adjusted, the number of sampling points can be adjusted. The average power, the maximum and minimum power and the root mean square difference can be calculated after the collection is completed. Users can add an attenuator in front of the probe and correct the power value in the relevant part of the meter. Due to the use of optical electro-optical probes, the voltage and power calibration coefficients of different wavelengths are different, and customers can calibrate different wavelengths (every 10nm) by themselves
5. The meter can be connected to a computer through a serial port (RS232 line). Laser power is monitored for a long time (no time limit) through computer software and automatically recorded in hard disk file
6. Dimensions: probe size 4 x 4 x 2.5cm/1.6 x 1.6 x 1", meter size 120 x 8 x 3cm/47.2 x 3.1 x 1.2"
7. Purpose: To measure continuous, quasi-continuous lasers and ultrafast pulsed lasers with relatively fixed wavelengths. Users can also monitor the power fluctuation and stability of the high-power laser through the beam splitter

Package Included:
- 1 x Set of Optical Power Meter

Attention:
The probe and the digital meter can be purchased separately. The meter can be used with any pyroelectric laser power meter probe, so it can replace an imported non-digital meter or your broken power meter. If it is needed, please contact us. We can help you to select an adapter to connect your original probe and calibrate the power meter. Thank you!
