Features:
- Bluetooth reception based on CSR high-end program CSR64215,the real 4.2 module,support APTX,transmission distance,signal loss
- ES9023 independent decoding,take the I2S protocol transmission,no decoding than the output of the Bluetooth playback board sound better,the decoder level details are very good,dynamic large,not the general level of Bluetooth audio output comparable distortion: THD + N: <0.006%
- In order to have a lower output impedance and good matching output using HIFI op amp AD823,this IC is used on the Rainbow C4,showing its excellent quality
- With resistance is very good,Nikon FW audio capacitors,Panasonic FC high-speed filtering,the German red WIMA,the board using dual active independent crystal,Foxconn headphone jack and so on.
- 5V power supply input(Mini USB)can use the phone charger or computer USB cable
- 3.5 stereo output can connect headphones,can also connect active speakers and power amplifier.
- Board Size:61*60mm
- With case size:61*60*22MM
Package List:

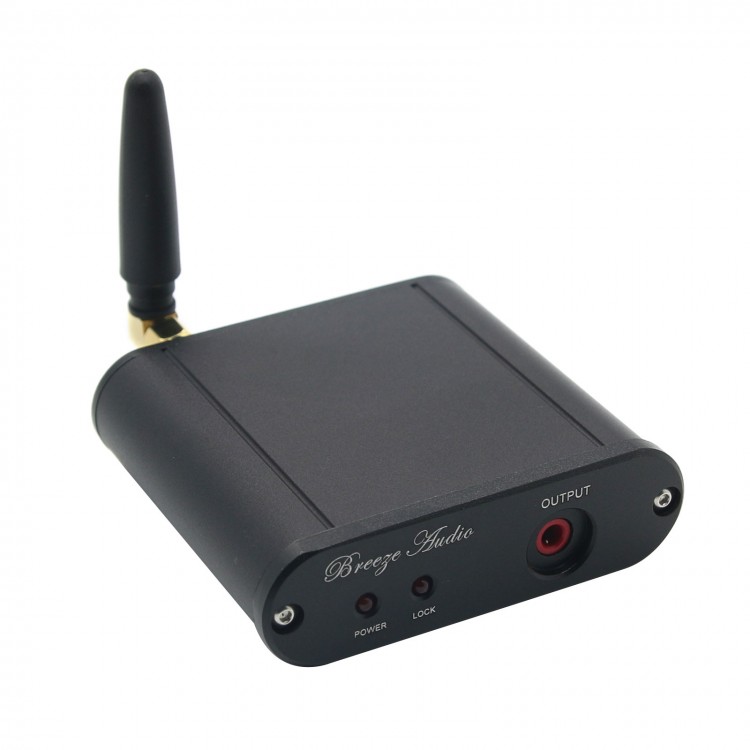

- 1 x Finished CSR64215 Bluetooth 4.2 Lossless APTX ES9023 I2S DAC
- 1 x User manual
