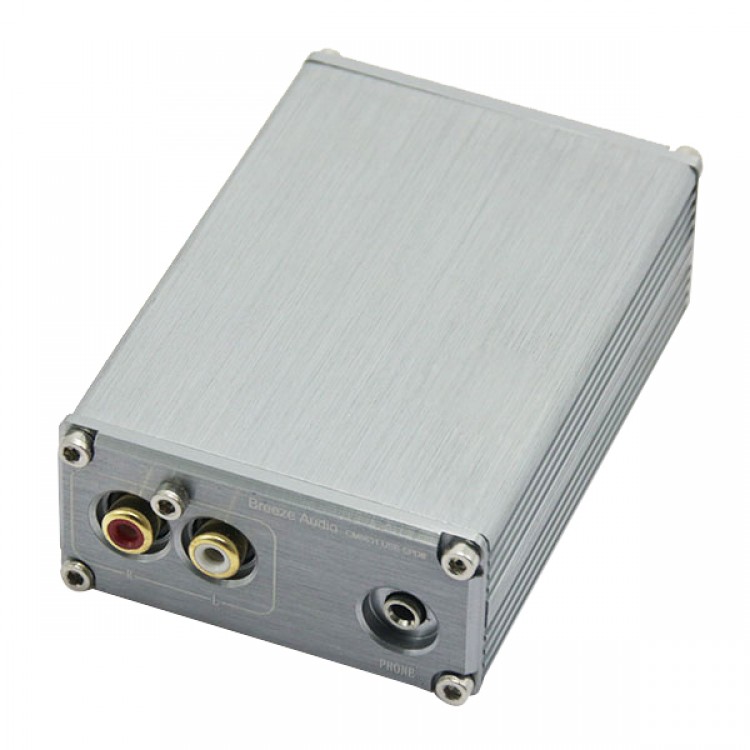

Finished HIFI DAC Decoder CM6631+CS4398+OPA2132 24Bit/192Khz USB input with RCA headphone and COAX output with case
Great performance! Highly recommend! Excellent analysis. Great performance on low frequency elastic
Product Description:
1. CM6631 chip from Cmedia with 32BIT-192KHZ output(DIY)
2. This board Supporting USB 2.0 and 24BIT-192KHZ audio output
3. Headphone output of 3.5mm jack. It is OK for the headphone with impedance higher 32 to 250ohm
4. Combination of CM6631 and CS4398 With OPA2132 operational amplifier output
5. DAC of CS4398: dynamic range is 120DB
6. Output of OPA2132 from BB company: performance better than OPA2604 AD827
7. Coupling capacitors: 2 pcs of WIMA2.2uf
- Input:USB
- Output:RCA and 3.5 Headphone jack
- Power suply: USB power supply OR external power(Selected by switch)
- PCB Size: 92 x 62 mm (double sides Surface Mount Device)
- The board needs to drive, contact me.Support XP, WIN7 (32-bit, 64-bit)
