Firefly-RK3288 Quadcore Cortex-A17 Processors Development Board ARM Ubuntu Android Linux 4K HDMI2.0

Firefly-RK3288 Quadcore Cortex-A17 Processors Development Board ARM Ubuntu Android Linux 4K HDMI2.0

More information download: Click here
Firefly-RK3288 information download: Click here

Performance:
- Processor: RK3288 quad core Cortex-a17 1.8ghZ processor
- Storage configuration: 2GB dual channel DDR3 memory
- Flash: 16G eMMC
- Video processing: Mail-T7604 MP4 quad core GP, realize H.264 hardware coding, and 4K H.265 video hardware coding. Support multi channel camera and video decoding and coding
- Video output: HDMI2.0 (4K@60Hz output) and  VGA video interface. With LCD interface like 2CH LVDS,2CH MIPI,EDP,etc
- Network: Gigabit Ethernet,2.4G/5G dual frequency WIFI, bluetooth 4.0 (support BLE)
- System: Support Android and Ubuntu system
- Interactive: Phone control,gamepad ,multimedia push
- Material: Sinking gold process
- High quality components
- MST Patch technology

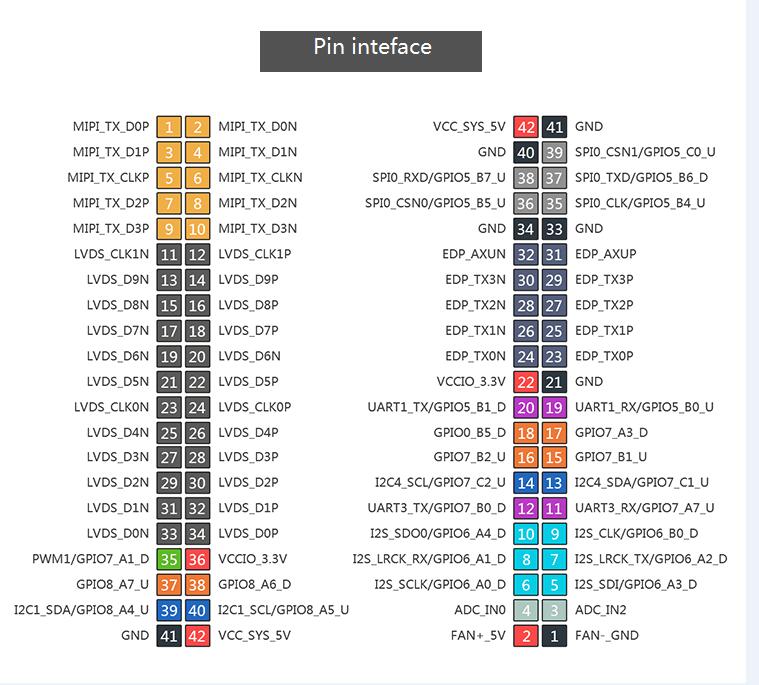

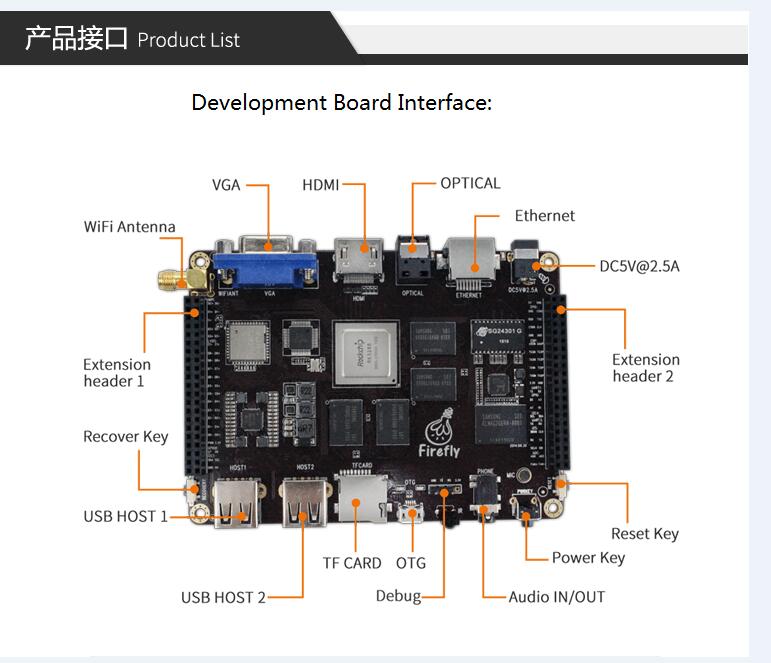

Interface:
- HDMI 2.0,support 4K@60Hz
- LCD: Dual VDS, dual MIPI, EDP
- VGA: Support 1080P output
- Camera: Support 1300W camera
- USB: Dual channel USB2.0, 1 channel OTG
- UART: 2 channel seriel, 1 channel Debug seriel

Paramerters:
- CPU: RK3288 Cortex-A17 quad core@ 1.8GHz
- GPU: Mail-T764 GPU with support for OpenGL ES 1.1/ 2.0/ 3.0 OpenVG1.1, OpenCL, Directx11
- Memory: 2GB DDRS dual channel
- Storage 16GB eMMC Flash, Micro SD
- Network:Ethernet-10/100/1000M ;wireless network 2.4/5g dual frequency WIFI,support 802.11a/b/g/n/ac protocal, bluetooth4.0
- Video In/ Out:   HDMI2.0 up to 3840*2160@ 60p; VGA up to 1080P;MIPI, LVDS, EDP, MIPI-CSI
- Audio in/ out:   HDMI, SPDIF, Microphone ,heaadphone
- LED: Programable LED x 2
- Debugging: serial consoule for debugging
- IR: Support infared remote control
- Expansion: Dual-LVDS,MIPI,MIPI-CSI,EDP,PWM,SPI,UART,ADC,GPIO,I2C,I2S
- Power supply: DC5V 2.5A

Package list:
- 1 x Firefly-RK3288 main board
- 1 x USB to DC4.0 power cable
- 1 x Antenna
- 1 x Acrylic case
- Screws and copper column
