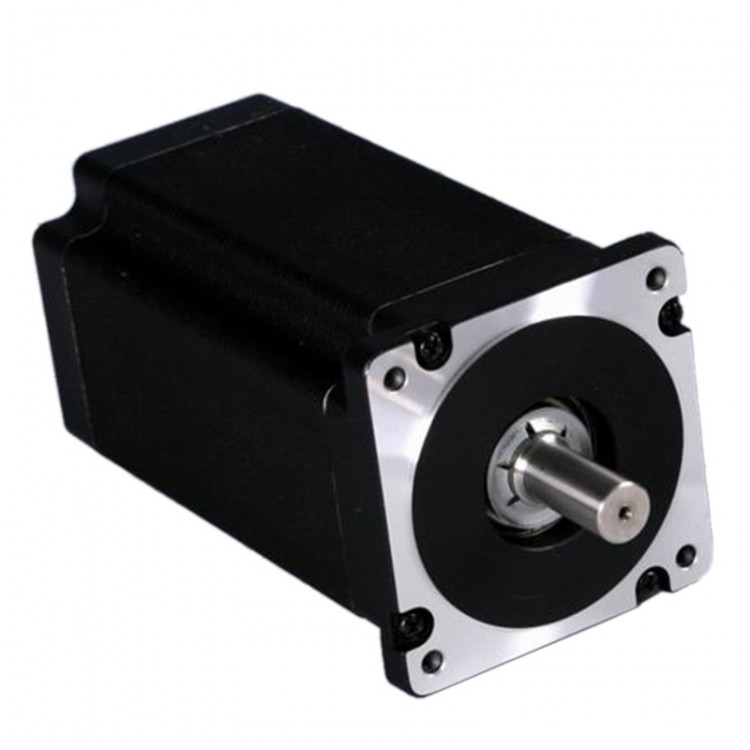

FL86STH156-4208A Permasyn Stepping Motor DC 1.8 Degree Hybrid Stepper Motor CNC
Specification:
- Step Angle: 1.8 degree
- Current: 4.2A
- Resistance: 1.46Ω
- Inductance: 8.68mH
- Holding torque(Bipolar): 120kg.cm
- Number of Leads: 8
- Rotor inertia: 4kg.cmxcm
- Weight: 5.3kg
- Detent torque: 3.2kg.cm (Max.)
- Body length: 156mm
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Dielectric strength:820VAC,1s, 3mA
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
- Maximum radial load: 220N
- Maximum rotor load: 60N
Package included:
- 1 x Stepping Motor
