| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $279.71 | $274.00 | $265.44 | $254.02 | Contact US |
SS-BZ-TC Machining Center CNC Control Panel Lathe Control Panel For FANUC and Mitsubishi Systems
$361.94
DDCS-EXPERT (DDCSE) 5-Axis CNC Offline Controller Motion Controller Support PWM Output Compatible with Standard G-code
$407.45
DDCS-EXPERT (DDCSE) 4-Axis CNC Offline Controller Motion Controller Support PWM Output Compatible with Standard G-code
$388.02

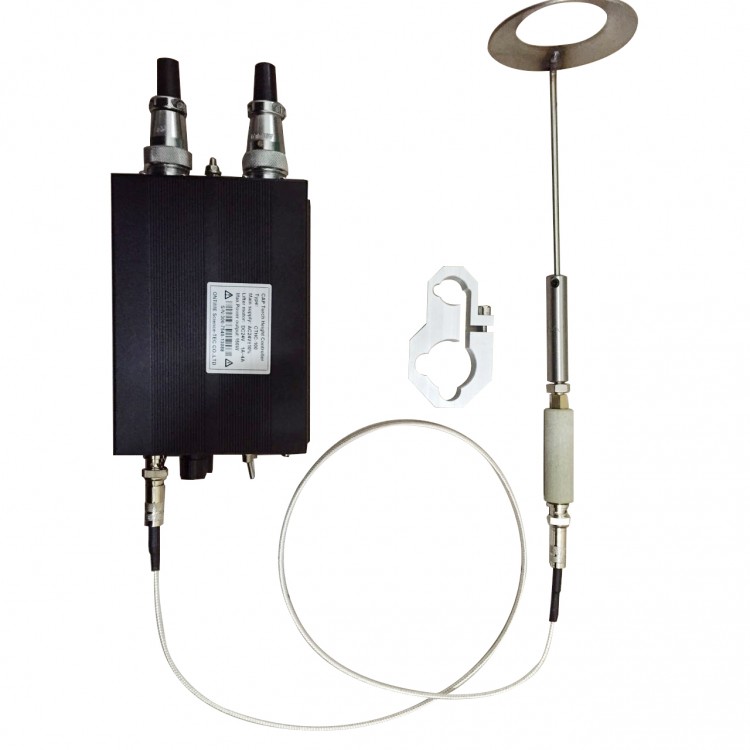

Flame Capacitive Torch Height Controller Kit CTHC-100 for Flame CNC Cutting Machine
Technical Parameters:
- Working Voltage: AC 24V±10%, 50Hz/60H z
- Motor: DC 24V
- Output Current: 1A-4A
- Working Temperature:
Torch Height Controller: -10℃ to 60℃
HF Cable: -10℃ to 200℃
Sensor Parts: -10℃ to 350℃
- Accuracy: ±0.2mm
- Sensor Distance: 5mm-20mm, adjustable
- Max. Output Power: 100W (150W by changing the current feedback resistor)
- Compatible HF Cable: 500mm-15000m
- Dimension: 150 x 106 x 55mm (L*W*H)
Package Included:
- 1 x Torch Height Controller
- 1 x Aviation Plug
- 1 x HF Cable
- 1 x Handle
- 1 x Connector
- 1 x Sensor Ring
