Flash Programmer For TSOP48 NAND Flash LCD Writing Reading TSOP56 Flash NOR Chip

Flash Programmer For TSOP48 NAND Flash LCD Writing Reading TSOP56 Flash NOR Chip

Download Software & Instruction:
https://pan.baidu.com/s/1yvhowRux4XP8MbSY33OKjA

Attention: Firmware version is version 062.

Features:
- Removable programming sockets, lower replacement cost.
- Programming socket for NAND flash.
- Programming socket for NOR flash.
- Adapter boards for NAND flash & NOR flash. For welding chip programming. Can be used when the pins of disassembled chips which are not cleaned up.
- Communication and power supply via USB.
- No need to download driver program. No driver installation is required. No need to install programmer software. Download software and use it directly.
- Support Chip Range:
* For 48-pin NAND flash/NOR flash and related packages; For TSOP56/BGA63/BGA64 package.
* For 8-pin SPIN AND flash: such as W25n01gvzeig/MX35LF1GE4AB, etc.
* For Some 8-pin Flash/EEprom.
* Support chip models can be found in the list below.

Support For NAND Flash:
For Hynix:
128Mbits: HY27US08281A
256Mbits: HY27US08561A
512Mbits: H27U518S2CTR-BC, HY27US08121A-TPCB, HY27US08121B, HY27US08121M
1Gbits: HY27UA081G1M-TPCB, HY27UF081G2A, HY27UF081G2M, HY27SF081G2M(1.8V), H27U1G8F2BTR, HY27SF081G2M
2Gbits: HY27UF082G2B, H27U2G8F2CTR-BC
4Gbits: H27U4G8F2D*, H27U4G8F2DTR-BC
8Gbits: H27U8G8G5D*, HY27UG08*, HY27UT088G2M-TPCB

For Samsung:
128Mbits: K9F2808U0A, K9F2808U0B, K9F2808U0C-YCB0
256Mbits: K9F5608U0A, K9F5608U0B-PCB0, K9F5608U0C, K9F5608U0D-PIB0
512Mbits: K9F1208U0A, K9F2808U0B, K9F2808U0C-PCB0
1Gbits: K9F1G08U0A, K9F1G08U0B, K9F1G08U0C-PCB0, K9F1G08U0C, K9F1G08U0D, K9F1G08U0E, K9F1G08U0M, K9K1G08U0M-YCB0
2Gbits:K9F2G08U0A, K9F2G08U0B, K9F2G08U0C-SCB0, K9F2G08U0D, K9F2G08U0M
4Gbits: K9F4G08U0A, K9F4G08U0B-PCB0, K9F4G08U0C, K9F4G08U0D-SCB0, K9G4G08U0*
8Gbits: K9G8G08U0A, K9G8G08U0M, K9K8G08U0A, K9F8G08U0M
16Gbits:K9GAG08U0D-PCB0, K9GAG08U0M, K9WAG08U1M-PCB0

For Micron:
1Gbits: MT29F1G08*, MT29F1G08ABADAWP, MT29F1G08ABAEAWP
            MT29F1G08ABADAH4:D(FBGA63), NAND01GW3B*
2Gbits: MT29F2G08*
4Gbits: MT29F4G08*, MT29F4G08ABADAWP, MT29F4G08ABAEAWP
8Gbits: MT29F8G08ABABAWP-IT, NAND08GW3B2A, NAND08GW3B2C
16Gbits:MT29F16G08ABABAWP-IT, MT29F16G08FAAWC-ETA

For ST:
128Mbits: NAND128W3A*, NAND128W3A2BN6
256Mbits: NAND256W3A*, NAND256W3A2BN6
512Mbits: NAND512W3A*, NAND512W3A2CN6, NAND512W3B*, NAND512R3A*(1.8V)
1Gbits: NAND01GW3B2CN6
8Gbits: NAND08GW3B2A, NAND08GW3B2C

For Spansion:
1Gbits: S34ML01G1, S34ML01G100TFI00, S34ML01G2, S34ML01G200BHI00, S34MS01G1(1.8V)
2Gbits: S34ML02G1, S34ML02G2, S34MS02G1(1.8V)
4Gbits: S34ML04G1, S34ML04G2, S34MS04G1(1.8V)
8Gbits: S34ML08G1, S34ML08G2

For ESMT:
1Gbits: F59L1G81A, F59L1G81MA-25T

For MXIC:
1Gbits: MX30LF1G08AA-TI, MX30LF1G08AA-XKI(FBGA63, 3.3V)

For Toshiba:
128Mbits: TC58DVM72A1FT00
512Mbits: TC58DVM92A1FTI0, TC58DVM92A5TA10, TC58DVM92A5TA00
1Gbits: TC58BVG0S3HTA00, TC58DVG02D5TA00, TC58NVG0S3ETAI0, TC58NVG0S3HTA00, TC58NYG0S3EBAI4(FBGA63, 1.8V)
2Gbits: TC58NVG1S3, TC58NVG1S3ETA00
4Gbits: TC58NVG2S3
8Gbits: TC58DVG3S0ETA00

For Zentel:
1Gbits: A5U1GA31ATS, A5R1GA31ATS (1.8V)
2Gbits: A5U2GA31ATS
8Gbits: A5U8GA31ATS

For ATO:
256Mbits: AFND5608U1-CKAK, AFND5608U1-CKCK(FBGA63)
512Mbits: AFND1208U1-CKA
1Gbits: AFND1G08U3-CKA

For Winbond:
1Gbits: W29N01GVSCAA

For cFeon:
1Gbits: EN27LN1G08-25TIP

Support For NOR Flash:
For Winbond:
W29GL128CH9T

For AMD:
AM29F400AT*(Need 5V adapter board), AM29F800BB(Need 5V adapter board)
AM29LV800BT*, AM29LV800BB*, AM29LV160D*, AM29LV320D*

For CFEON:
EN29LV160B*

For Intel:
TE28F160C3*, TE28F320C3B*, TE28F320C3T*

For MXIC:
MX29GL320E*, MX29GL128E*, MX29LV800C*, MX29LV160D*, MX29LV320A*, MX29LV320C*,MX29LV640M*
KH29LV640D*

For Micron:
JS28F128M29EW*, JS28F256M29EW*, JS28F512M29EW*, JS28F00AM29EW*,
JS28F320C3B*, JS28F320C3T*

For SHARTP:
LH28F320BFHE-PTTL70, LH28F640BFHE-PTTLHIA

For Spansion:
S29AL004D*, S29AL008D*, S29AL008J*, S29AL016J*, S29AL016M*, S29GL032A*, S29JL032H*, S29GL032N*, S29JL064H*, S29JL064J*, S29GL064N*, S29GL128P*, S29GL128S*, S29GL128N*, S29GL256P*, S29GL512P*, S29GL01GP*

For SST:
SST39VF800A,
SST39VF6401B*, SST39VF3201B*,
SST39VF6401*, SST39VF3201*, SST39VF1601*,
SST39VF160*

For ST:
M29F800DB-70N6
M29W200BB, M29W200BT, M29W400BB, M29W400BT, M29W800AT, M29W800AB,
M28W320FCB, M28W320FCT
M29W160EB*, M29W160ET*, M29W320ET*, M29W128GH*

For TOSHIBA:
TC58FVM5T2ATG65

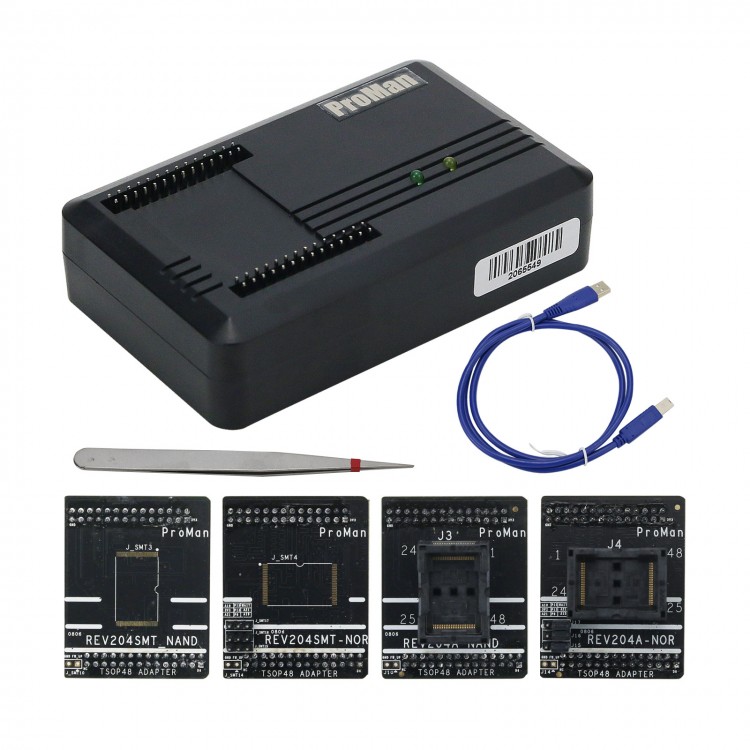

Package Included:
- 1 x Main Unit
- 1 x USB Cable
- 1 x Tweezers
- 1 x For NAND Flash Programming Socket
- 1 x For NOR Flash Programming Socket
- 1 x For NAND Flash Adapter Board
- 1 x For NOR Flash Adapter Board
