Flat Tesla Coil Bluetooth Musical Tesla Coil Dual Class E Amplifier Circuit with Power Adapter

Flat Tesla Coil Bluetooth Musical Tesla Coil Dual Class E Amplifier Circuit with Power Adapter


Instructions:

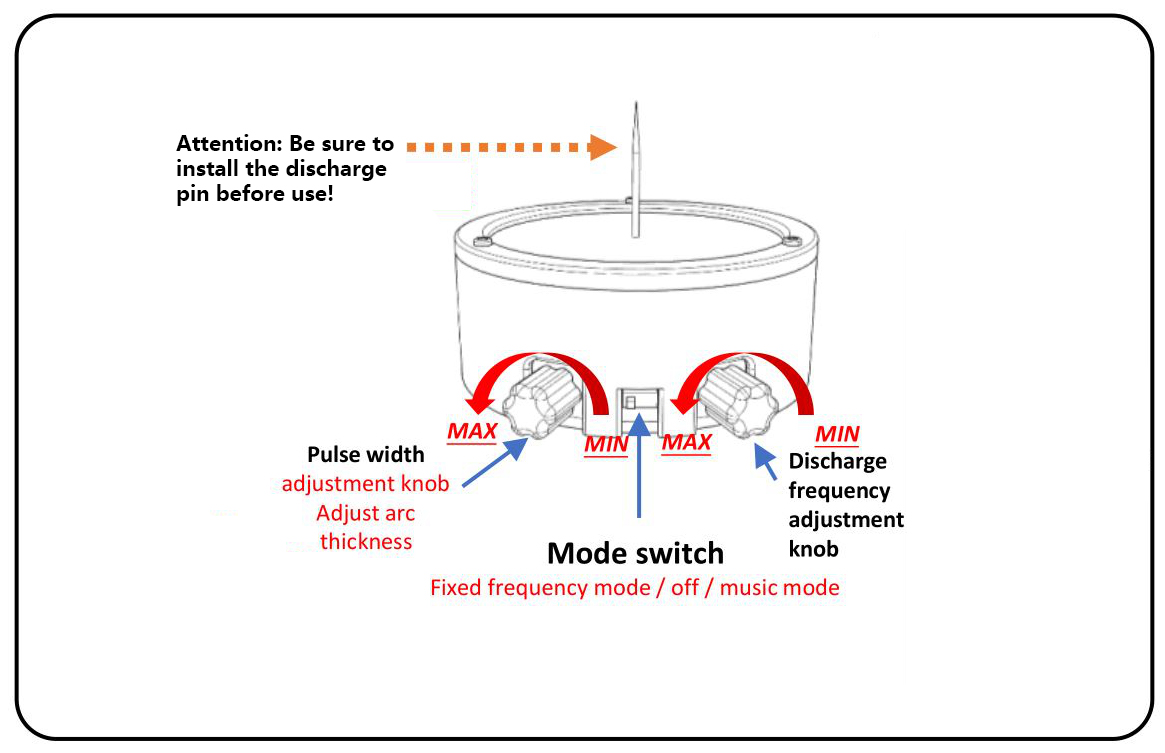

I. Fixed frequency mode:
1: First set the two knobs to zero
2: Place the switch in the middle position
3: Plug in the two power supplies
4: Turn the switch to the left and an arc will be generated

II. Music mode:
1: First set the two knobs to zero
2: Place the switch in the middle position
3: Plug in the two power supplies
4: When the mobile phone or other device enters the Bluetooth search interface, you will see BT device, click Connect BT device
5: Turn the switch to the right, and then the device plays square wave music. An arc will be generated at the top of the coil

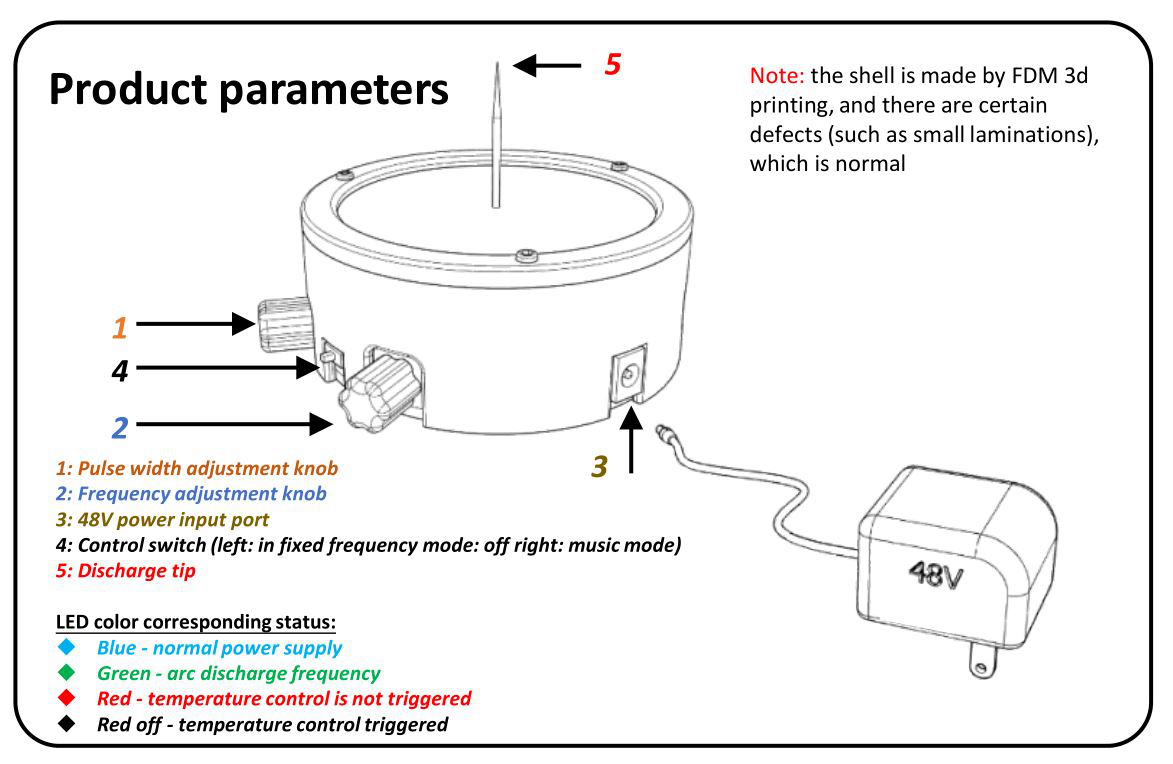

Package Included:
- 1 x Tesla Coil
- 1 x 48V Power Adapter

Matters needing attention:
- Do not put it on the metal surface for power on!!!
- This product is equipped with temperature control protection and active cooling system, wherein, the active cooling system is fully opened.
- When the temperature of the power tube is too high (60℃), the temperature control protection (red LED goes out) will be triggered and the operation will stop. At this time, please turn the switch to the off position in the middle and keep it powered on for 3 minutes.
- When the temperature control LED (red) lights up again, you can continue to use it.

Precautions:
1: Make sure that the two knobs are reset to zero (minimum) before each power on.
2: Make sure that the switch is in the middle position (closed state) before power on each time.
3: Do not refit or disassemble without permission.
4: The arc is violent, please pay attention to safety when using!
5: People with heart disease or artificial organs implanted in the body are not reliable to access the equipment.
6: Mobile phones, computers and other electronic devices are unreliable (near this device).
7: Inflammables and explosives (such as fireworks) are not reliable near the equipment.
