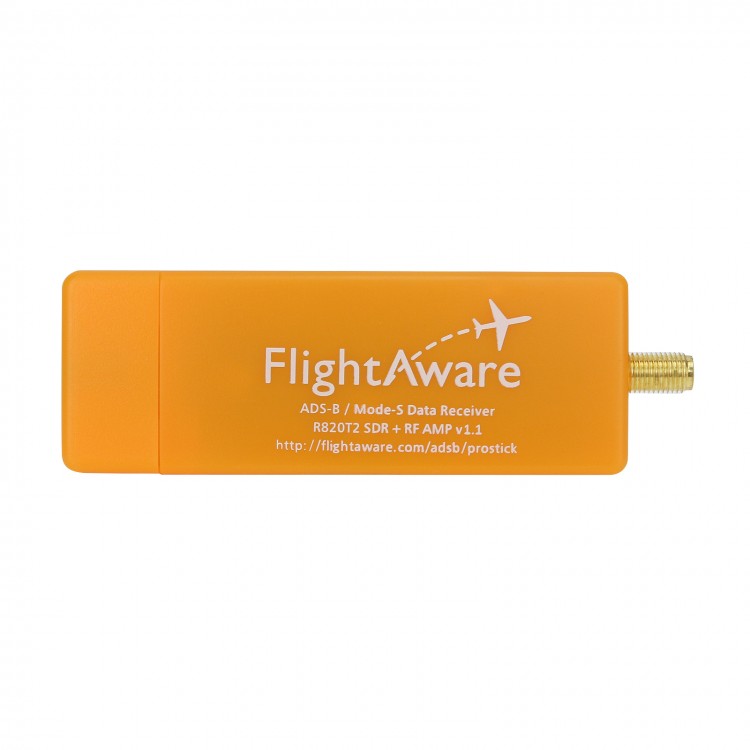

FlightAware Pro Stick USB ADS-B Receiver SDR Data Receiver R820T2 Chip Builtin Amplifier SMA F
Description:
FlightAware has revolutionized the world of USB SDR ADS-B Receivers with the FlightAware Pro Stick and Pro Stick Plus, high-performance USB R820T2 software defined radios (SDR) with a built-in RF amp for maximum ADS-B/MLAT performance. The first of its kind, FlightAware's Pro Stick is compatible with PiAware or any other device that supports USB RTLSDR receivers, and is less expensive than any other RTLSDR USB receiver in the world. The Pro Stick Plus adds a built-in 1090 MHz bandpass filter for increased performance and range of reception in areas with moderate RF noise as is typically experienced in most urban areas.
The Pro Stick and Pro Stick Plus are roughly the size of a traditional USB stick and require no external power. There are no moving parts.
Pro Stick Features:
1. Higher Performance for ADS-B and MLAT
- 20-100% improvement vs traditional USB SDR sticks
- R820T2 SDR combined with FlightAware RF Amplifier (USB powered)
- Native SMA connector yields reduced loss due to antenna cabling/adapters
2. Easier Installation
- SMA F connector for easy connectivity to high-performance antenna
- No MCX adapters required
- No external amplifier required
3. Affordable Price
- 30% cheaper than alternative receivers
- Without redundant parts, for example, remote control needed
Pro Stick Specifications:
- Chip: R820T2
- Amplifier: 19dB; Noise Figure: 0.4dB; OIP3: +39dB
- TCXO: 0.5 ppm
- Power Amplifier: 300mA
- Weight: 17g / 0.6oz
- Dimensions: 95 x 32 x 13mm
- Antenna Port: SMA female (Requires SMA antenna cable and optionally N-male adapter for large antenna)
- Range: Over 500km (Depends on installation quality)
- Performance: 20-100% improvement for Mode S message vs traditional RTL SDR
- Computer: For Raspberry Pi 3 running PiAware
Comparison of Pro Stick & Pro Stick Plus:
- Similarities: There are R820T2 chip, built-in amplifier, SMA F connector in these two versions.
- Difference: Only the Pro Stick Plus is designed with built-in 1090MHz filter.
Package Included:
- 1 x Pro Stick USB ADS-B Receiver
