Fluke 17B+Digital Mutimeter F17B Meter AC DC Voltage Current + AC Transducer

Fluke 17B+Digital Mutimeter F17B Meter AC DC Voltage Current + AC Transducer


General Specifications:
Maximum Voltage between any Terminal and Earth Ground: 1000 V
- Display(LCD)......................................................4000 counts,updates 3/sec
Battery Type.......................................................2 AA,NEDA 15A, IEC LR6
Battery life...........................................................500 hours minimum(50 hours in LED Test mode without load. The hours with load depends on the type of LED under test)
- Temperatue
Operating..............................................................0℃ to 40℃
Storage................................................................-30℃deg to 60℃
- Relative Humidity
Operating Humidity...........................................Non-condensing≤90% at 10℃ to 30℃;≤75% at 30℃ to 40℃
Operating Humidity,40MC Range..................≤80% at 10℃ to 30℃ ; ≤70% at 30℃ to 40℃
- Altitude
Operating............................................................2000m
Storage................................................................12.000m
- Temperature Coefficient..................................0.1×(specified accuracy)/℃(<18℃ or > 28℃)
- Fuse protection for current inputs................440 mA,1000 V Fast Fuse, Fluck specified part only.11A,1000v Fast Fuse, Fluke specified part only.
Size(H×W×L).......................................................183×91×49.5(mm)
Weight...................................................................455g
IP Rating...............................................................IP 40
Safety....................................................................IEC 61010-1, IEC61010-2-030 600V CAT Ⅲ,1000V CATⅡ，Pollution Degree 2
- Electromagnetic Environment........................IEC 61326-1:Portable
- Electromagnetic Compatibility........................Applies to use in Korea only

Class A Equipment(Industrial Broadcasting and Communication Equipment)

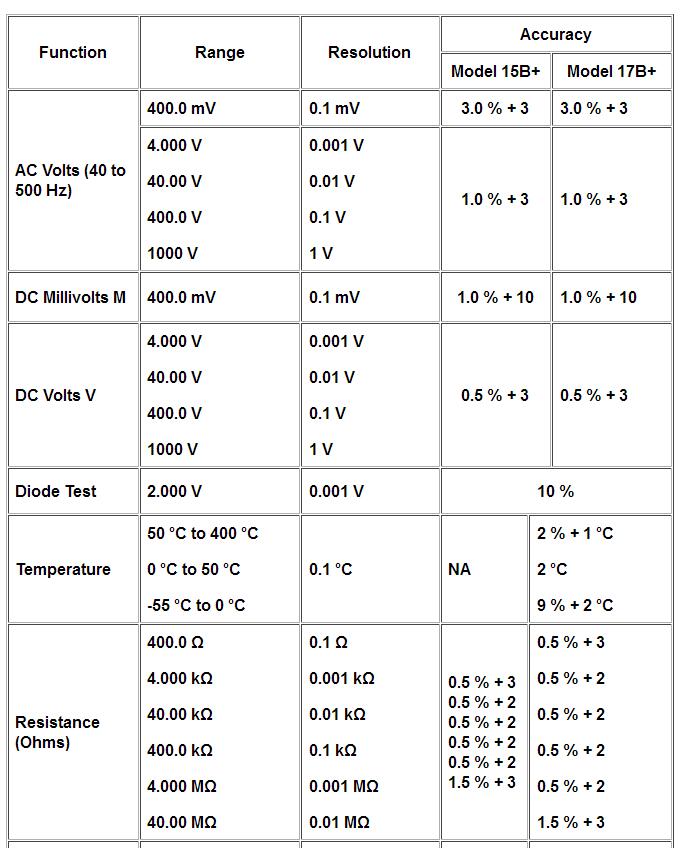

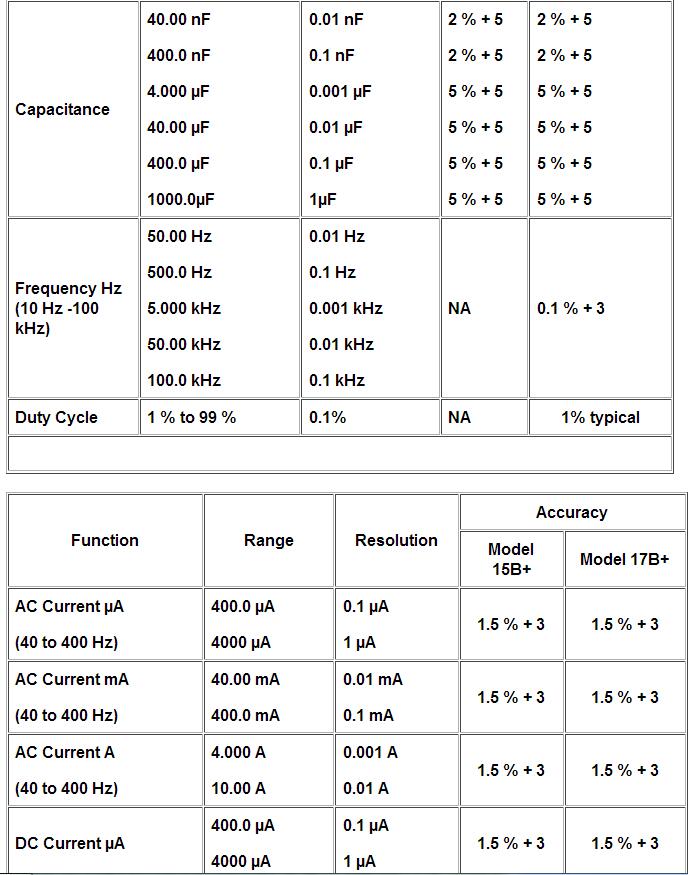

Accuracy Specification:
- Accuracy is specified for one year after calibration, at operating temperatures of 18℃ to 28℃, relative humidity at 0 % to 75 %.
- Accuracy specifications take the form of: ±([% of Reading] + [Number of Least Significant Digits])

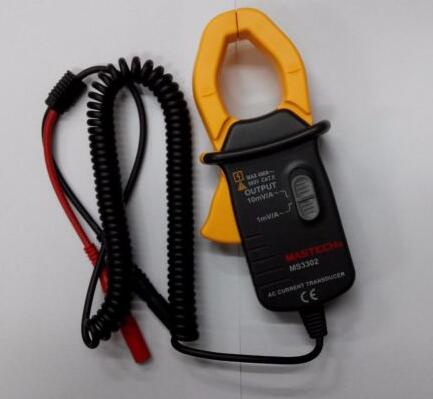

AC Current Transducer Probe 0.1A-400A Clamp Meter True RMS MASTECH MS3302

Features:
- Professional AC Current Transducer Clamp Meter.
- Design for AC Current.
- Safe and easy-to-use.
- Small and compact size.
- With a packed bag, design for easy carrying.
- It is designed according to IEC1010-1 CAT III 600V concerning safety requirements.

Specifications:
- Current range: 0.1A - 400A a.c. RMS
- Output voltage levels: 10mV/A: 1mV a.c. per 0.1 Amp a.c.; 1mV/A:  1mV a.c. per 1 Amp a.c.
- Working voltage: 600V CAT.? per IEC 1010 - 1
- Type of sensing: induction coil sensing for AC current
- Max. output impedance: 45 Ohm
- Max. jaw  opening: 29mm
- Max. conductor size: 28mm
- Item dimensions: 14.5 x 6.5 x 2.5cm
- Package size: 16.5 x 11.7 x 5.7cm

Note:
- This meter is made by FLUKE manufacturer in China.
- Now China Fluke manufacturers doesn't provide printed English user manual.

English user manual:Click here

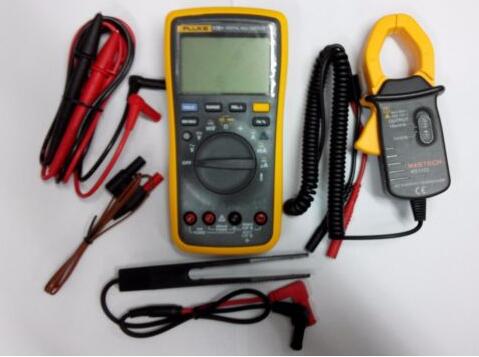

Package List:

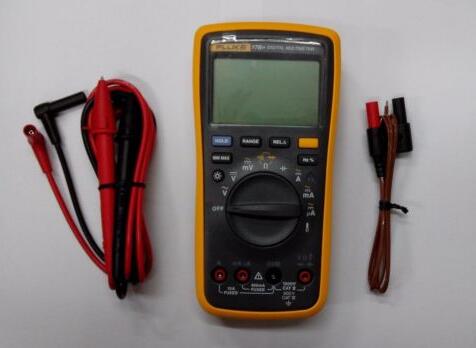

- 1 x FLUKE “F17B+”multimeter set (meter,test leads,thermocouple)
- 1 x AC Current Transducer

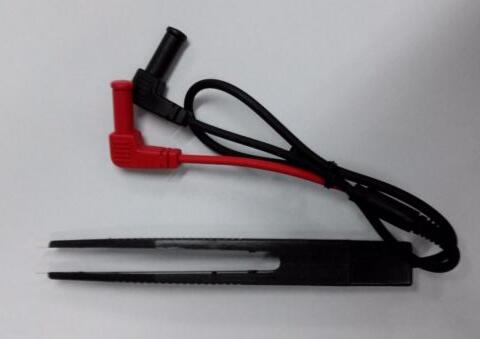

- 1 x SMD Test Clip
