Tags: FLUKE 302+
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $94.03 | $92.11 | $89.23 | $85.40 | Contact US |

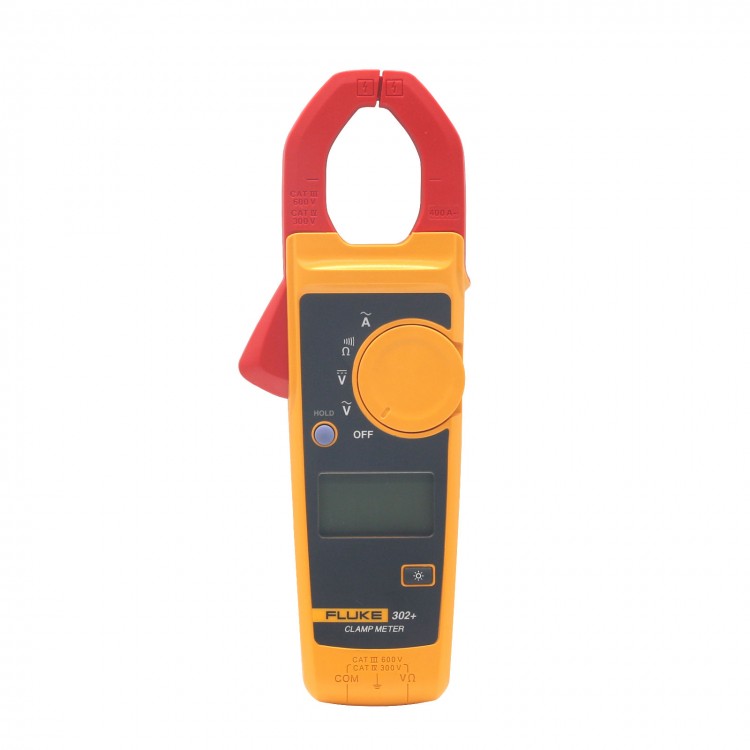

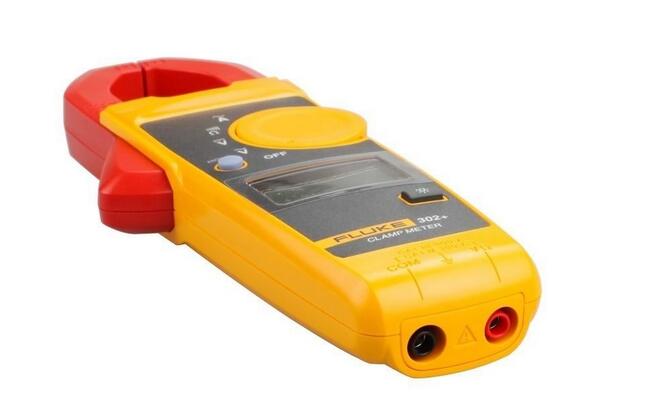

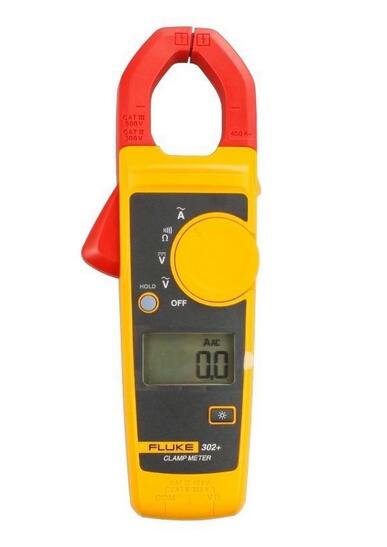

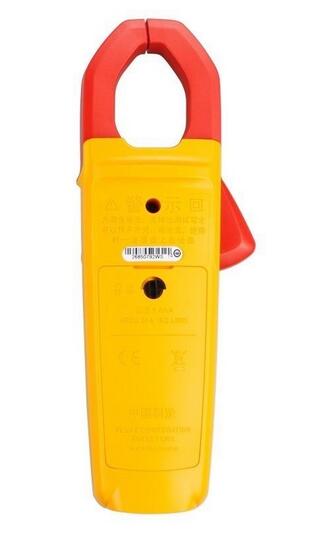

FLUKE 302+ Clamp Meter Handheld Digital Multimeter Tester Wireless AC DC Volt F302
Product Description:
- 100% Brand New And High Quality
- New smaller size fits easily into tight places
- Precise measurements with 1.8% basic accuracy
- Resolution up to 0.01A and 0.1 V
- Measures AC current to 400 A
- Measures AC volts to 600 V
- Measures DC volts to 600 V (Fluke 322 only)
- Resistance measurement to 400 Ω
- Continuity for quick checking of shorts
- Automatic low battery indicator
- Display hold function

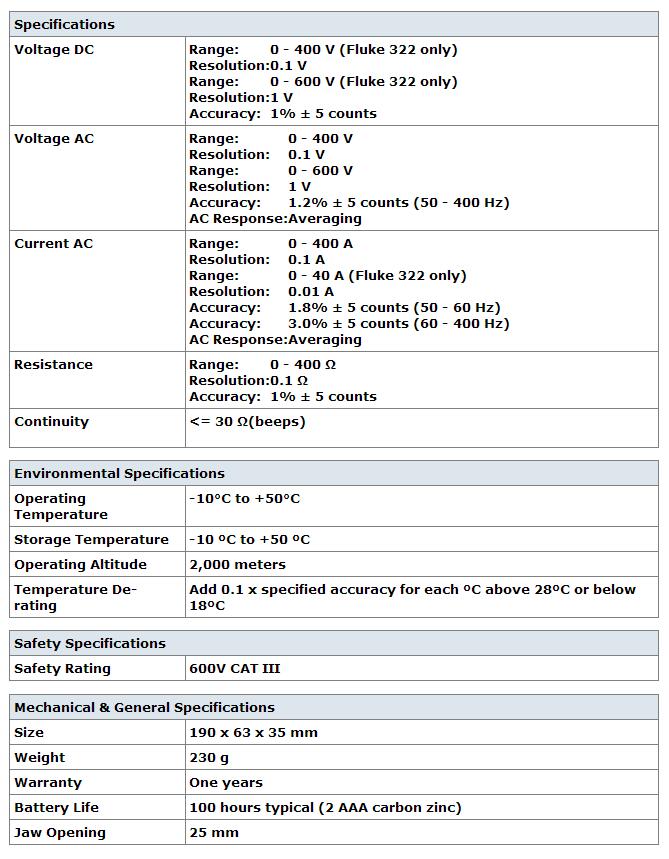

Specifications:
- Voltage DC:
Range:0 - 400 V (Fluke 322 only)
Resolution:0.1 V
Range:0 - 600 V (Fluke 322 only)
Resolution:1 V
Accuracy: 1% ± 5 counts
- Voltage AC:
Range:0 - 400 V
Resolution:0.1 V
Range:0 - 600 V
Resolution:1 V
Accuracy:1.2% ± 5 counts (50 - 400 Hz)
AC Response:Averaging
- Current AC:
Range:0 - 400 A
Resolution:0.1 A
Range:0 - 40 A (Fluke 322 only)
Resolution:0.01 A
Accuracy:1.8% ± 5 counts (50 - 60 Hz)
Accuracy:3.0% ± 5 counts (60 - 400 Hz)
AC Response:Averaging
- Resistance:
Range:0 - 400 Ω
Resolution:0.1 Ω
Accuracy:1% ± 5 counts
- Continuity:<= 30 Ω(beeps)
Environmental Specifications:
1.- Operating Temperature:-10°C to +50°C
Storage Temperature:-10 ºC to +50 ºC
Operating Altitude:2,000 meters
Temperature De-rating:Add 0.1 x specified accuracy for each ºC above 28ºC or below 18ºC
2.Safety Specifications:
- Safety Rating:600V CAT III
3.Mechanical & General Specifications
Size:190 x 63 x 35 mm
Weight:230 g
Warranty:One years
Battery Life:100 hours typical (2 AAA carbon zinc)
Jaw Opening:25 mm

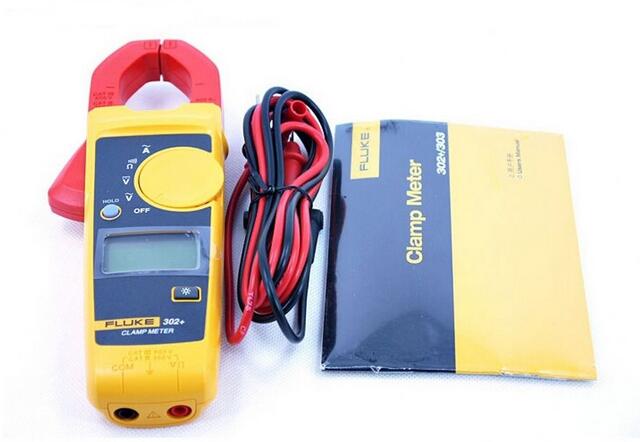

Package includes:
- 1 x Fluke 302 Clamp Meter

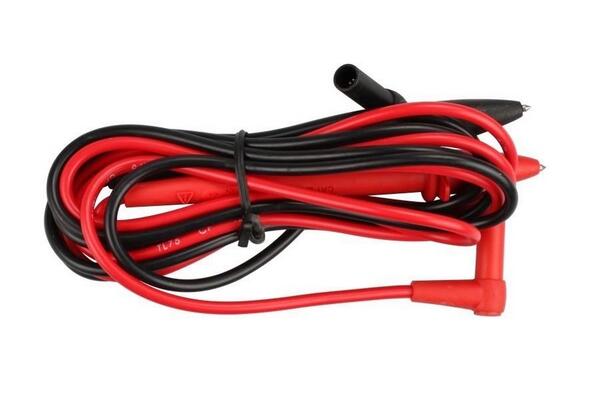

- 2 x Test leads
- Because of the airspace controls not include battery1 x Fluke 302 Clamp Meter
- 2 x Test leads
Note:Because of the airspace controls not include battery
