Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $189.95 | $186.08 | $180.26 | $172.51 | Contact US |

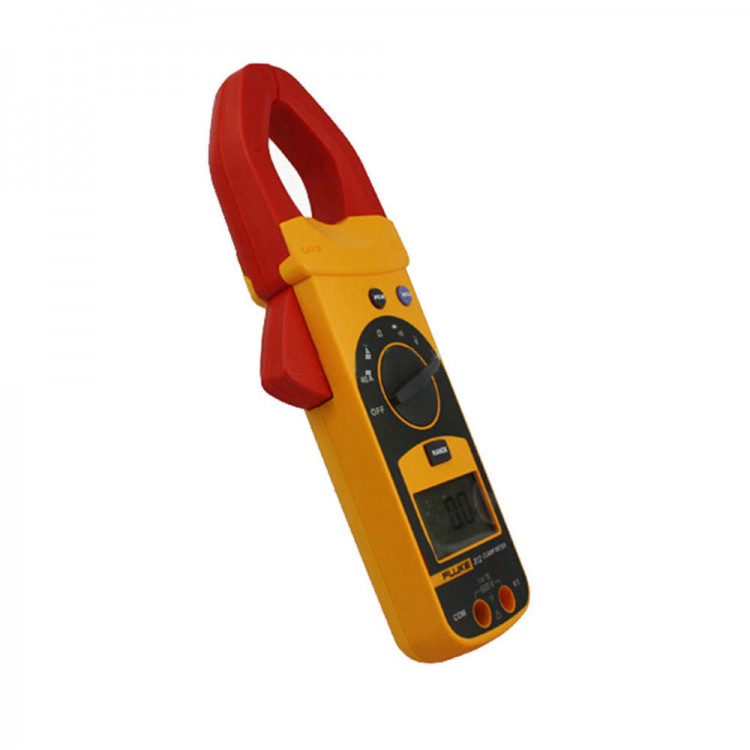

FLUKE F317 Digital Clamp Meter Multimeter Tester 36MM AC DC Ammeter Voltmeter
Description:
- Display: 6000 Resolution
- Battery: 3xAAA IEC LR03 (not included)
- Jaw opening: 1.45 in (37 mm)
- Dimension (LXWXH): 6.39 in x 2.29 in x 1.20 in(162.4 mm x 58.25 mm x 30.5 mm)
- Weight: 384g (Include battery)
- Auto range: Ohms
- Safety rating: CE/ EN/IEC 61010-1 and IEC 610102032/ CATIII, 600V
- Operating temperature: 14°F to 122°F (-10 °C to 50 °C)
- Storage temperature: -40 °F to 140 °F (-40 °C to 60 °C)
- Operating humidity: non-condensing (< 50 F) (< 10 deg C)
90 % RH (50 F to 86 F) (10 to 30 deg C)
75 % RH (86 F to 104 F) (30 to 40 deg C)
45 % RH (104 F to 122 F) (40 to 50 deg C); non-condensing
- Operating altitude: 2000 meter
- Storage altitude: 12,000 meter
- IP Rating: IP40
- Vibration: Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis
- Drop test requirements: 1 meter
- EMI, RFI, EMC: not appoint EMC >= 0.1 V/m
- Temperature coefficients: 0.1x (reading accuracy)/ °C (<64 °F or > 82° F) (<18 °C or > 28 °C)
- Fluke F317 Digital Clamp Meter Technical Specification:
Specification:
- Model Fluke 317 F317
- Current AC Rang 40.00 A, 600.0 A
- Resolution 0.01 A, 0.1 A
- Accuracy:
1.6% ± 6 (50-60 Hz) 40 A
2.5% ± 8 (60-500 Hz) 40 A
1.5% ± 5 (50-60 Hz) 600 A
2.5% ± 5 (60-500 Hz) 600A
- AC response true-rms
- Current DC Range 40.00 A, 600.0 A
- Resolution 0.01 A, 0.1 A
- Accuracy:1.6% ± 6 (40 A);1.5% ± 5 (600 A)
- Voltage AC Range 600.0 V
- Resolution 0.1 V
- Accuracy 1.5% ± 5 (20-500Hz)
- AC Response true-rms
- Voltage DC Range 600.0 V
- Resolution 0.1 V
- Accuracy 1% ± 4
- Resolution Range 400.0 Ω, 4000 Ω
- Resolution 0.1 Ohm, 1 Ohm
- Accuracy 1% ± 5
- Continuity ≤ 30 Ohm
Package included:
- 1 x Clamp meter
- 1 x Case
- 1 pair of test lead
- 1 xManual
