FLUKE Wireless Clamp Meter Current Probe 376 FC 1000A AC DC True RMS W IFLEX

FLUKE Wireless Clamp Meter Current Probe 376 FC 1000A AC DC True RMS W IFLEX



Product Details:
- The Fluke 376 FC is part of the Fluke Connect family of wireless test tools.
- Log and trend measurements to pinpoint intermittent faults
- Transmit results wirelessly via Fluke Connect® Measurements app
- Create and send reports right from the field
- Stay safely away from the arc flash zone through Bluetooth connectivity to Apple and - Android devices
- The Fluke 376 FC is the direct replacement for the Fluke 376 Clamp Meter.

Features:
- Connect your meter to your smartphone with Fluke Connect Measurements
- Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your phone and the Cloud
- Collect intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC
- Create and share reports from the field via email, or converse in real-time with ShareLive™ video calls
- iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces (included)
- TPAK magnetic hanging strap (included)
- Integrated VFD low pass filter for accurate motor drive measurements
- Proprietary inrush measurement technology to filter out noise and collect motor starting current exactly as the circuit protection sees it
- CAT IV 600 V, CAT III 1000 V safety rating
- Three-year warranty
- Soft carrying case

Measurement Capability:
- 1000 A ac and dc current measurement
- 2500 A ac current measurement with iFlex flexible current probe
- 1000 V ac and dc voltage measurement
- True-rms voltage and current for accurate measurements on non-linear signals
- Frequency measurement to 500 Hz with body jaw and iFlex
- Resistance measurement to 60 kΩ with continuity detection
- Min, max, average, and inrush recording to collect variations automatically
- 500 mV dc measurement range to interface with other accessories
- 1000 μF capacitance measurement

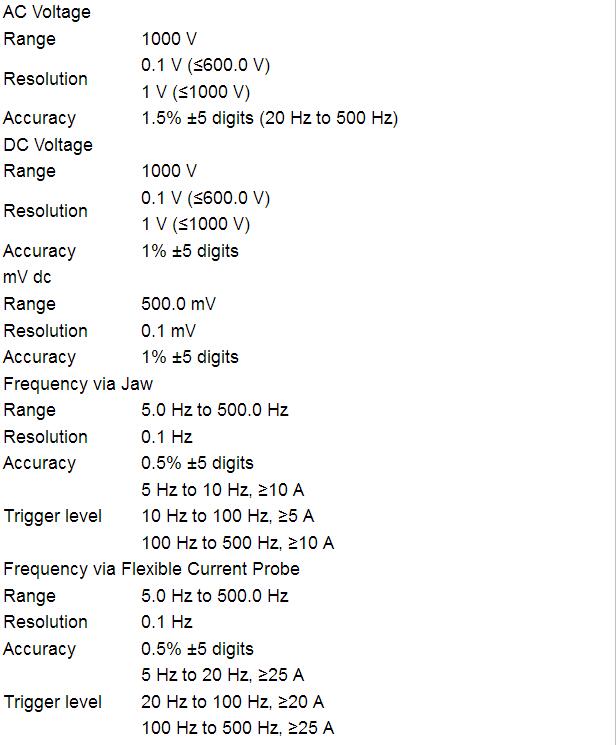

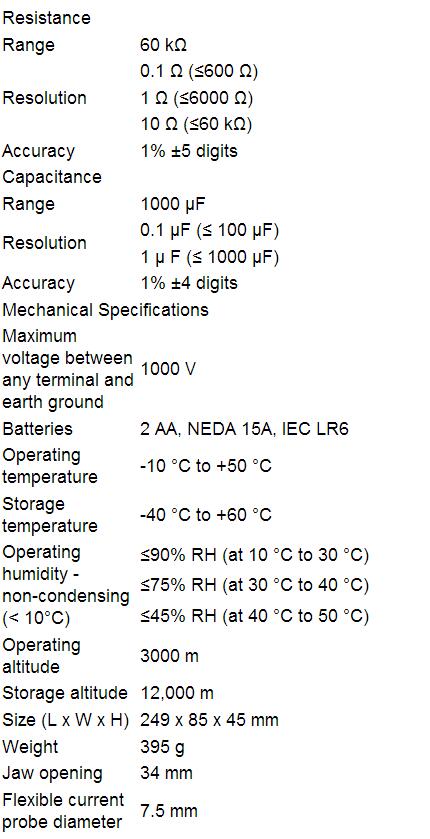

General Specifications:
AC Current via Jaw
- Range:999.9 A
- Resolution:0.1 A
- Accuracy:2% ±5 digits (10 Hz to 100 Hz);2.5% ±5 digits (100-500 Hz)
- Crest Factor (50 Hz/60 Hz):3 @ 500 A;2.5 @ 600 A;Add 2% for C.F. >2

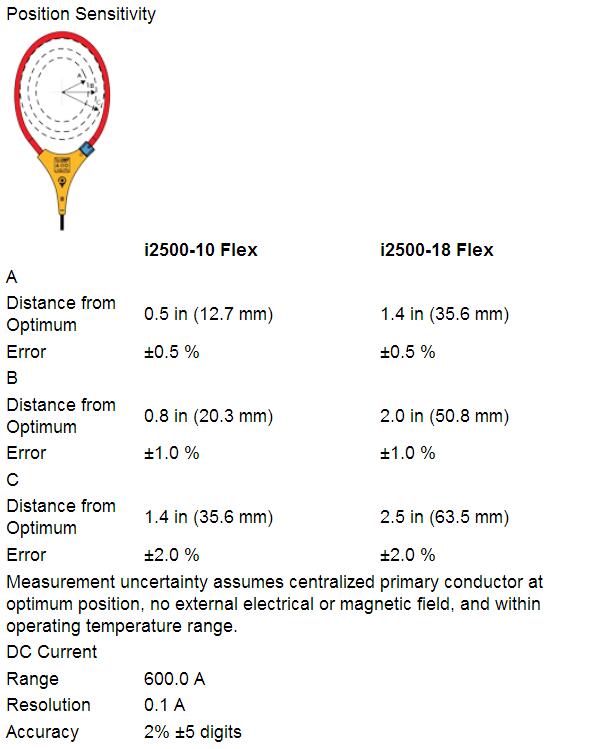

AC Current via Flexible Current Probe
- Range:2500 A
- Resolution:0.1 A (≤ 600 A);1 A (≤ 2500 A)
- Accuracy:3% ±5 digits (5 – 500 Hz);3.0 at 1100 A
- Crest Factor (50/60Hz):2.5 at 1400 A;1.42 at 2500 A;Add 2% for C.F. > 2

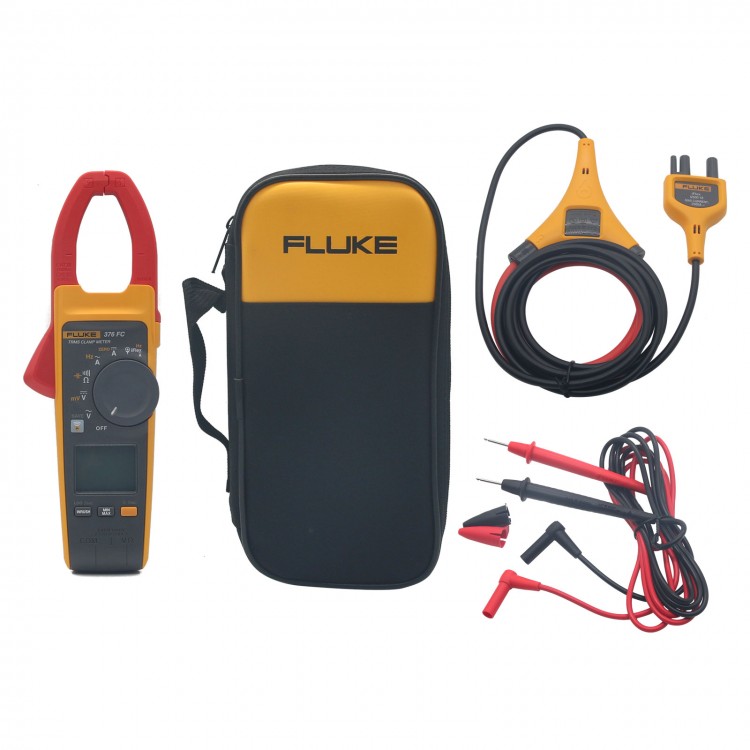

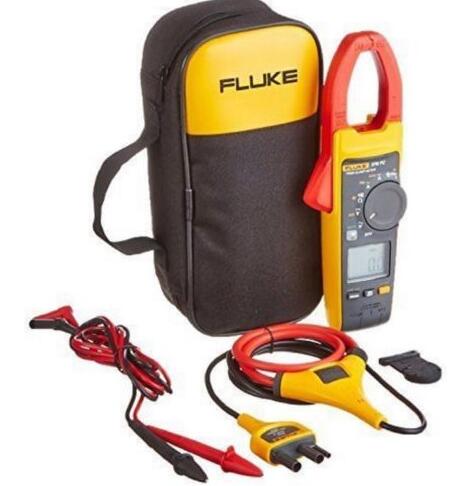

Includes:
- 1 x 18-inch iFlex® Flexible Current Probe
- 1 x TPAK magnetic hanging strap

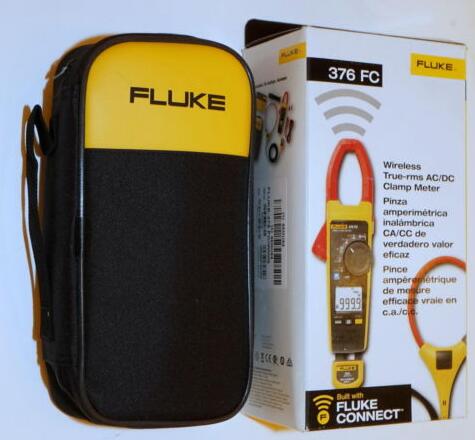

- 1 x Soft carrying case
- 1 x TL75 test leads
- 1 x Coated instruction card
- 1 x Safety information sheet

Note:
- It is recommended to use 2pcs AA Alkaline batteries which are not included.
