KKmulticopter’s Flycam Board is the same way and size as Flaycam Blackboard from www.kkmulticopter.kr ,and different from the Flycam blueboard. KKmulticopter’s board needs special Flycam Blackboard Firmware.

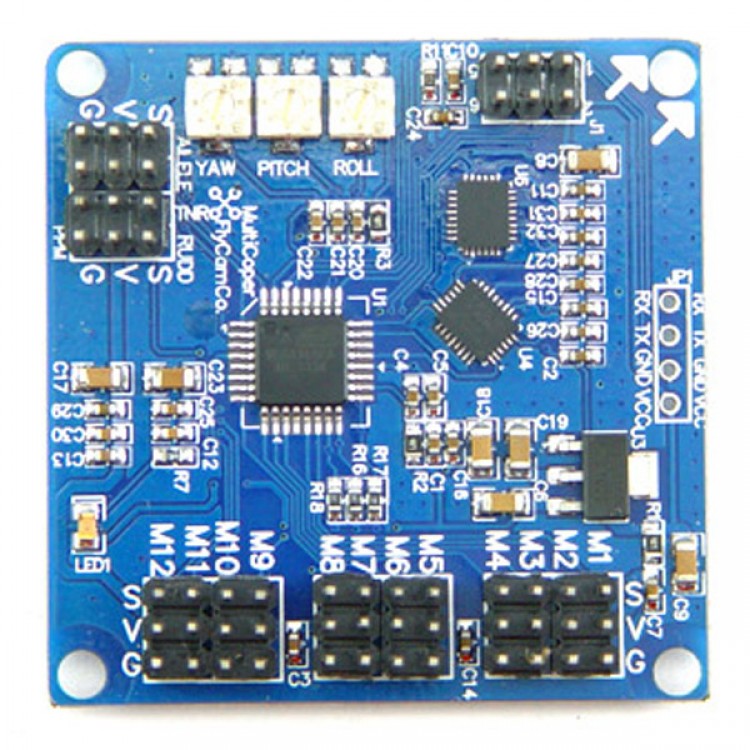

KKmulticopter’s Flycam Board is a new version board of KKmulticopter V5.5 Controller Board.The Flycam Board is a KK flight controller board for remote control multicopters with 2,3,4 and 6 even up to 12 rotors. The Flycam board can be connected to the FlyCam Naviboard and GPS.

Features:
- Can remote control multicopters with up to 12 rotors
- Simple structure, KKmulticopter is easy to Maintain and Debug Control
- With 3 pcs gyros, relying on potentiometer adjust gyro sensitivity.
- Full servo signal output, support normal ESC / analog servo
- Support for single-axis / UFO, Y3 3-axis, Y4-type 3-axis, 4 axis, 6 axis, V22  kk flight controller mode
- Supports 4-axis "+" and "X" kk flight controller mode, support for six-axis "HEXA6" and "Y6"  kk flight controller mode.
- Don't need MK 4-axis PPM decoder board, the receiver can be connected directly  to the Transmitter　

Specifications:
- Gyros: MEMS (2 axis + 1 axis)
- Motor or Servo Output: 12 channels (Support for Butterfly, Octo, X8, Y6T, TwinQuad, TwinHexa, Dodeca, ...)
- MCU: Atmega168
- Hole distance: 45mm, 63.6mm

- Need Flight Controller Protector: 78823
