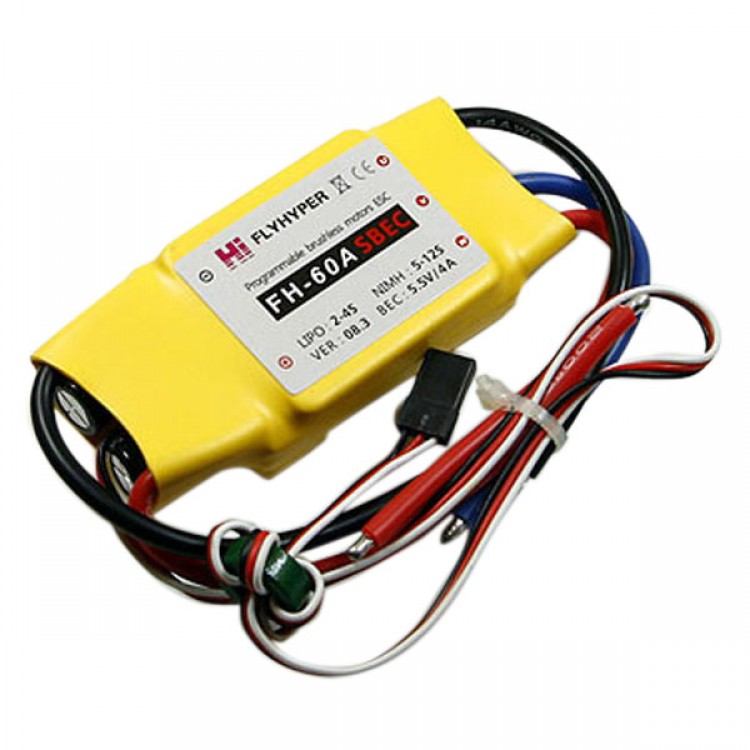

FlyHyper 2-4S 60A Electric Speed Control (ESC) FH-60A 4-Pack
Features:
- With helicopter mode, can be used for both airplane and helicopter.
- Motor steering direction programmable. (change the motor rotating direction by changing the ESC setting)
Specifications:
- Type: FH-60A
- Weight: 70g
- Size: 70x32x17 mm
- Constant Current:60A
- Max Current: 80A (for ten seconds)
- BEC: Yes, 4A / 5.5V SBEC
- Input: 2 to 4 Li-Po, or 5 to 12 Ni-MH/Ni-Cd
- Brake Setting: On/Off, the default is off;
- Setting for battery type: LiPo (lithium) or NiCd/ NiMh (nickel metal hydride / nickel at), the default is LiPo
- Low-voltage protection threshold setting: low / medium / high, the default is medium (3.0v/65%);
- Motor timing setting (increase the efficiency and the start stability of the electronic governor): low/medium/high, the default is medium (3.0v/65%);
- Accelerated startup setting (for precision gearboxes and helicopters): (provide the rapid accelerated startup with linear throttle response), the default is soft;
- Helicopter mode (for helicopters), the default is off;
- Motor steering (clockwise / counterclockwise): forward steering / reverse steering, the default is forward steering;
- PWM operating frequency: 8KHz/ 16kHz, the default is 8KHz;
- Low voltage protection modes (lower power or stop immediately): lower power / immediately stop, the default is lower power.
