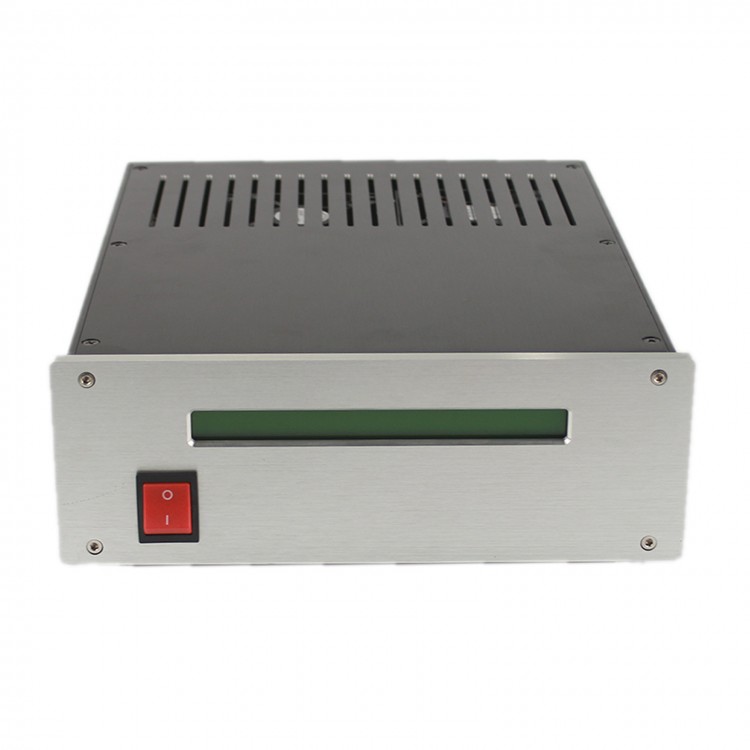

FM Power Amplifier RF Radio Frequency Amplifier FM 87-108MHZ for Rural Campus Broadcasting
Description:
-The main function of FM radio frequency power amplifier is to amplify low power so that small devices have high power and increase the communication distance to make the sound clearer. This product is only suitable for campus broadcasting and rural broadcasting systems.
-To use this equipment, please prepare 1-5W signal source and an antenna that with corresponding frequency and withstand power above 400W.
Specification:
Input power: 1-5W
Transmitting frequency: 87-108MHz
Working mode: FM frequency modulation
Output power: 50-300W
Clutter suppression: <-60DB
Standing wave protection: >2
Load impedance: 50Ω coaxial
Power supply voltage: 220V
Standby current: 200mA
Cooling method: temperature controlled air cooling
Size: 308*260*90mm
Net weight: 4.7kg
Features:
-Adopt all aluminum alloy chassis
-Stable work and long service life
-With standing wave protection function
-Use 220V power supply
Package List:
1 x FM Power Amplifier
Note:
-Do not use without antenna installed.
-Please use an antenna corresponding to the transmitting frequency, standing wave within 2.0, and withstand power above 400W.
-Do not touch the antenna in the transmitting state.
-Do not use in explosive environment (gas station, natural gas, etc.).
-Please follow the national laws and regulations and the local radio management department to use.
