Product Description:
- Designed for U/V FM walkie-talkie debugging,measuring development.
- Signal generator can work in duplex mode,that is measured by placing the transmit does not affect the status of generator operation,it can be used to measure the state of the repeater forwar

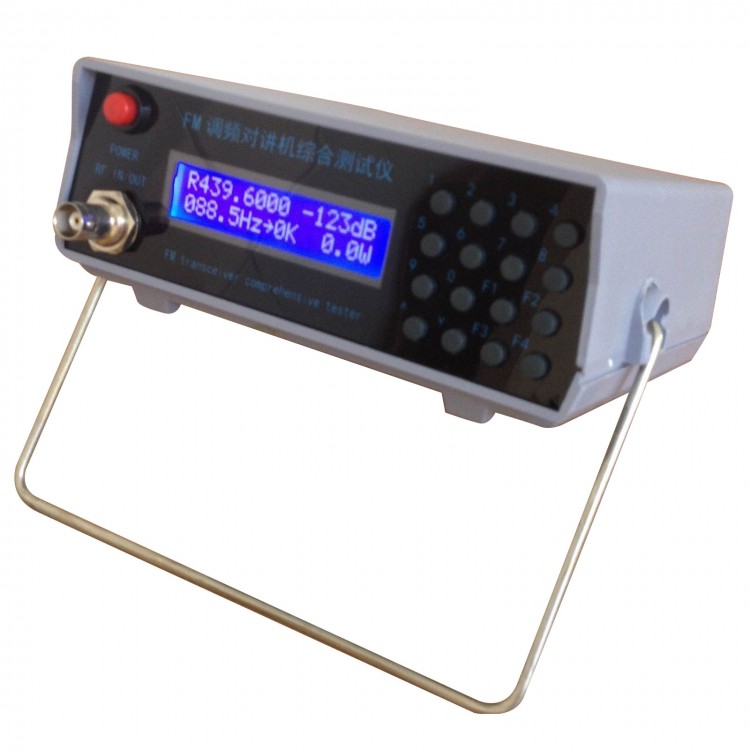

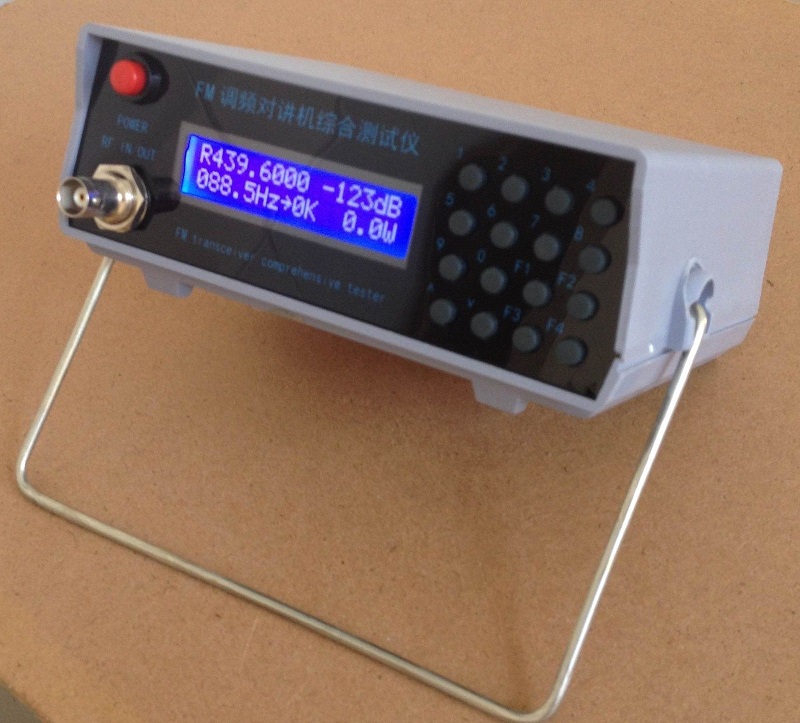

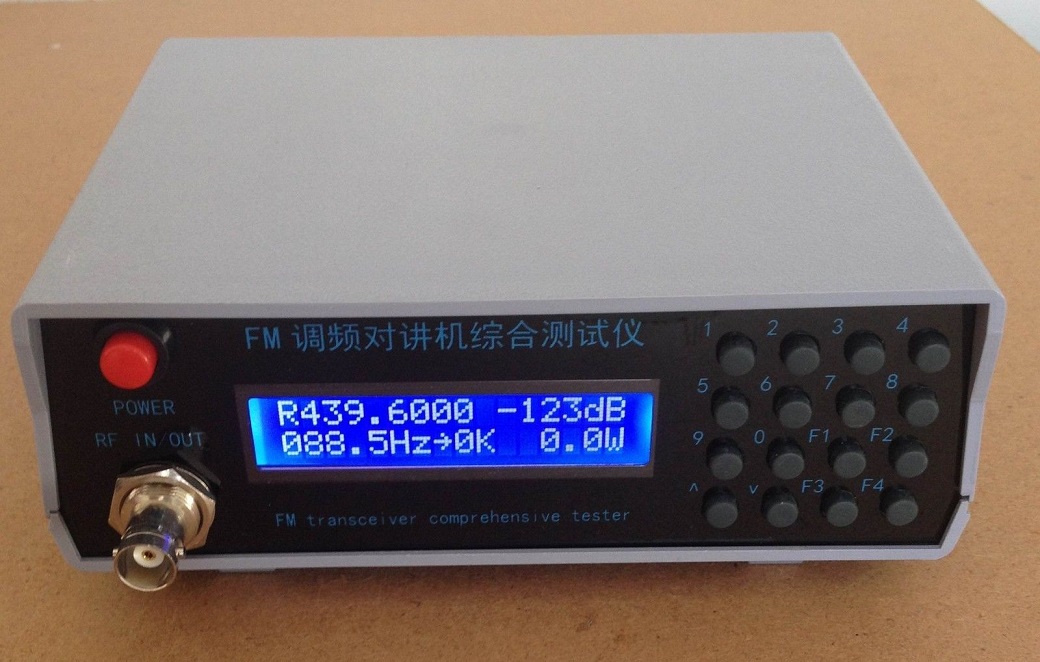

FM walkie-talkie Tester
1.Transmit
- Frequency Measurement: 10M~900M,resolution: 1K or 0.1K
- Power measurement: 0.1W~64W
- CTCSS measurement: 50HZ~260Hz,standard digital and analog CTCSS
2.Receive
- RF signal generator frequency range: 1M~470M,output level: -132dBm~-90dBm
- Tone modulation: 50HZ~260HZ CTCSS
Specification:
- Working current: 8-12V DC
- Working current: 200mA
- Size: 160x160x65mm(LxWxH)
Package List:
- 1 x FM Power CTCSS Frequency Meter
