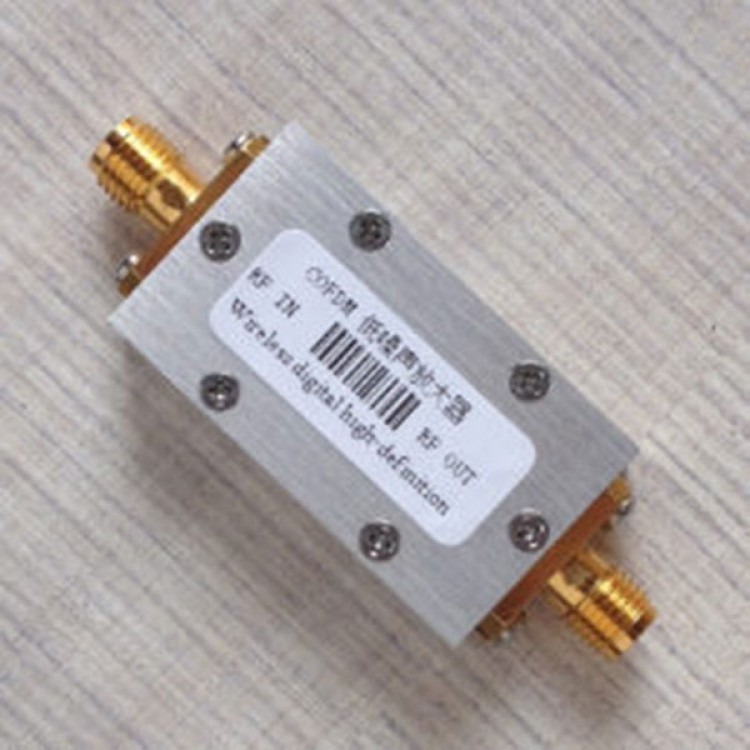

FM Transmission COFDM Transmitter Amplifier UAV DVB-T DTMB RF Low Noise Amplifier 30dB
Note: the module uses the receiver antenna interface as power supply, and can customize the 5, 6, 8, 9, 12V operating voltages according to the customer's requirements when order more than 10pcs,Default is 5V
This Amplifier suitable for short wave, FM broadcasting, 315, 433MHz data transmission, 0.3-0.5 and 1.2GHz unmanned aerial vehicle (UAV), TV signal and so on in 1.2GHz.
Specification:
- Gain: 30dB@30 MHz
- 30dB@100 MHz
- 28.5dB@500 MHz
- 26dB@1000 MHz
- 25dB@1200 MHz
- Noise coefficient: 1.7dB@30 MHz
- 1.8dB@100 MHz
- 1.9dB@500 MHz
- 2.1dB@1000 MHz
- 2.2dB@1200 MHz
- Output power: 8 + 1 dBm
- Cable feed: DC 5-12V (default 5V,please contact us for customize service when you ordre more than 10pcs)
- Working current: 30 + 5 mA
- Module size: 35 * 20 * 9 mm without connectors
- Radio frequency joint: SMA-K
- Impedance: 50 ohm
