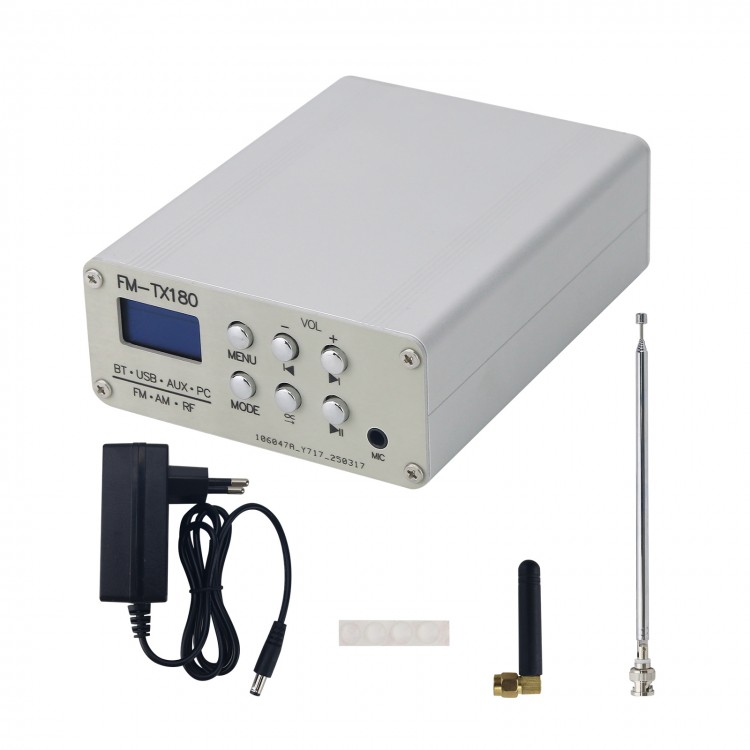

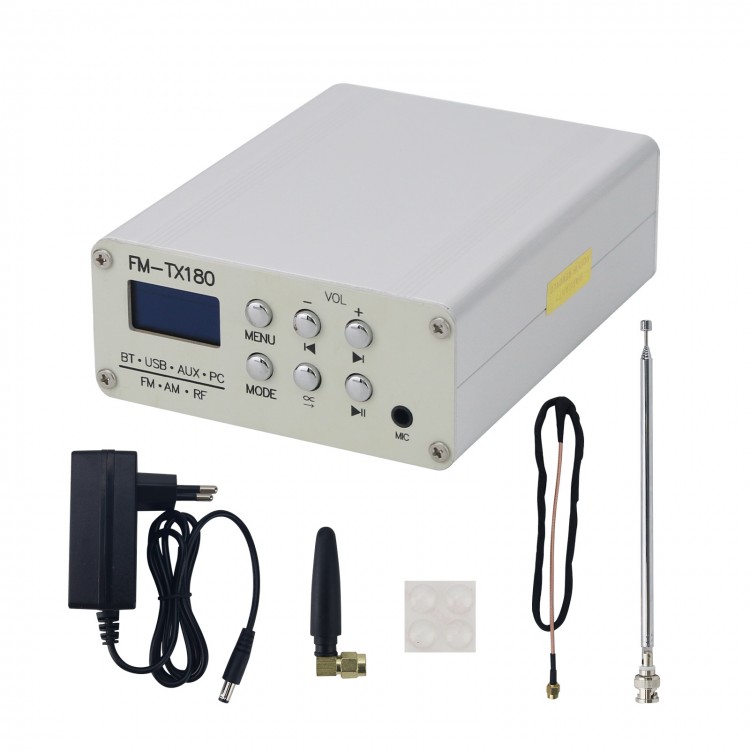

FM-TX180 75MHz-108MHz Bluetooth Stereo FM Radio Transmitter with 0.96-inch OLED Screen AM Shortwave Signal Transmitter

FM-TX180 75MHz-108MHz Bluetooth Stereo FM Radio Transmitter with 0.96-inch OLED Screen AM Shortwave Signal Transmitter

Description:
- FM-TX180 is a multifunctional high fidelity stereo audio decoding transmitter that integrates Bluetooth audio decoding, USB music file decoding, computer USB sound card, AUX, FM transmission, and AM signal modulation transmission. This board adopts a 0.96-inch OLED display screen for displaying playback status and related information. Supports decoding file formats MP3/WAV/WMA/FLAC/APE when playing USB flash drives in USB music mode. In Bluetooth mode, it supports SBC/AAC audio transmission protocol. In AUX mode, it supports stereo line audio input. In USB sound card mode, a USB cable can be directly inserted into a computer USB port as a sound card to obtain higher quality audio digital signals. The microphone input can only be input in AUX mode and can be used for more expansion. The panel of this product is made of aluminum alloy material.

Key Features:
- FM transmitting
- AM modulation signal
- Support for capacitive microphone
- Multi-media player
- Support multiple signal source input
- Connect PC sound card to computer USB port to achieving higher sound quality
- Multiple format USB flash drive audio files
- AUX audio input
- Audio Bluetooth

Specification:
- Power supply: DC12V
- FM transmission distance: 1000 meters for a car radio and over 500 meters for a regular radio.
- Transmitting frequency: 75MHz - 108MHz
- AM signal: firstly, in order to obtain high-quality and clear sound, it is output as a modulation signal. Within a distance of 3 meters, the signal is relatively clear, clean, and of better quality than some radio stations. It can be used as a modulation signal and for testing purposes, with a smaller actual transmission distance.
- Modulation frequency: 0.1Hz - 15MHz

Precaution:
- Capacitive microphone input can only take effect in AUX mode. In other modes, the microphone has no sound and the volume is set according to the AUX mode. It does not interfere with AUX signal input. After inputting the microphone, AUX will no longer be a stereo signal. After unplugging the microphone, AUX input will be stereo, and the microphone signal can be output with FM, AM, AudioOUT.
- When the multimedia decoding player is connected to the amplifier for use, FM and AM signal transmission can be turned off, and FM and AM transmission also can be turned on simultaneously without affecting it.

Package Included:
- 1 x Transmitter
