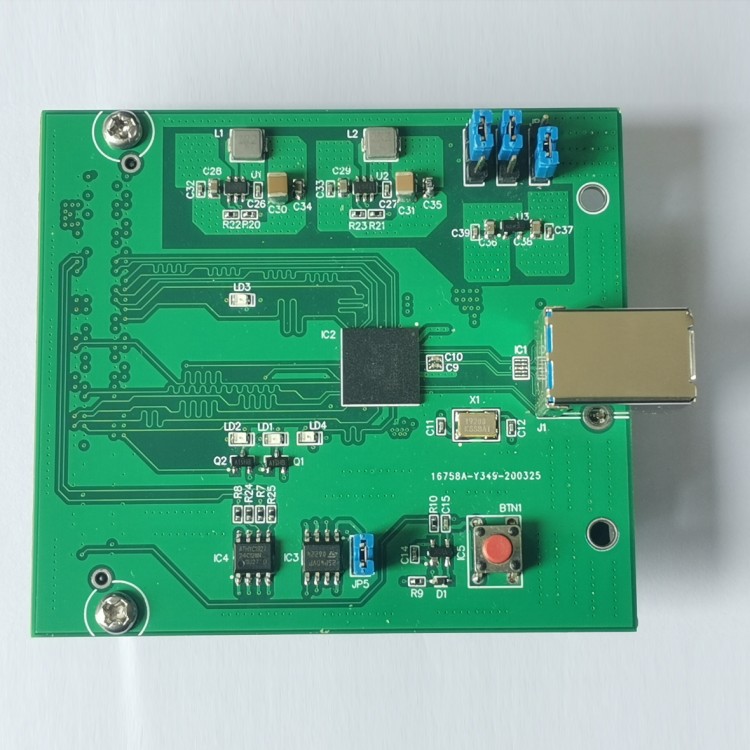

FMC Interface USB3.0 Development Board CYUSB3014 Board for ZEDBOARD ZC706 ZCU102 Motherboard
Description:
-The board is suitable for customers who already have FMC interface motherboards (carrier boards) such as ZEDBOARD, ZC706, ZCU102, etc., and expand the USB 3.0 SLAVE interface to realize high-speed USB communication with PC.
-We not only provide this product, but also provide complete development tutorials and all source code, as well as technical support.
-The chip used is CYUSB3014. Standard LPC FMC interface, the interface voltage is 1.8V or 2.5V, can be easily connected to any LPC or HPC standard FMC interface.
Features:
1. Provide PDF schematic diagram, PCB package.
2. Provide an official development environment and introduce how to use it.
3. Provide FPGA source code and project files.
4. Provide PC WINDLL driver and host computer program source code.
5. Demo example of source code actually collected.
Package List:
1 x Development Board
