FNIRSI DS215H Advanced Version Handheld 50MHz 2-Channel Oscilloscope High Precision Digital Signal Generator with 2 P6100 Probes

FNIRSI DS215H Advanced Version Handheld 50MHz 2-Channel Oscilloscope High Precision Digital Signal Generator with 2 P6100 Probes

Description:

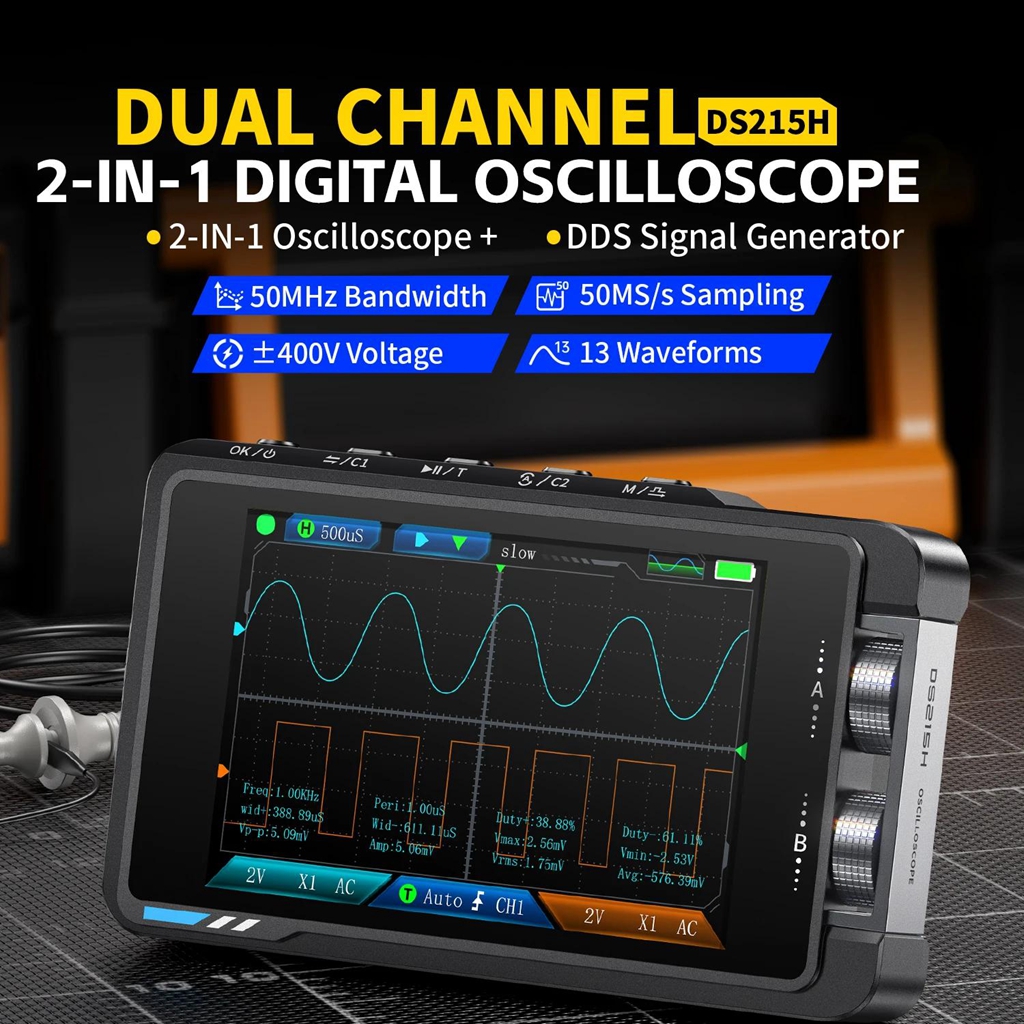

- DS215H is a comprehensive and practical two-in-one dual-channel digital test instrument, designed for the maintenance and R&D industries.

Key Features:
- High-precision measurement: The FNIRSI-DS215H offers high precision with a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, ensuring accurate measurements for various applications.
- Wide voltage protection: Supports peak voltage measurements up to ±400V, offering reliable and safe performance in high-voltage scenarios.
- Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.
- Signal generator functionality: It features 13 waveform outputs with a frequency range of 0-50KHz, adjustable by a 1Hz step. The output parameters, including frequency, amplitude, and duty cycle, are fully adjustable to meet various needs.

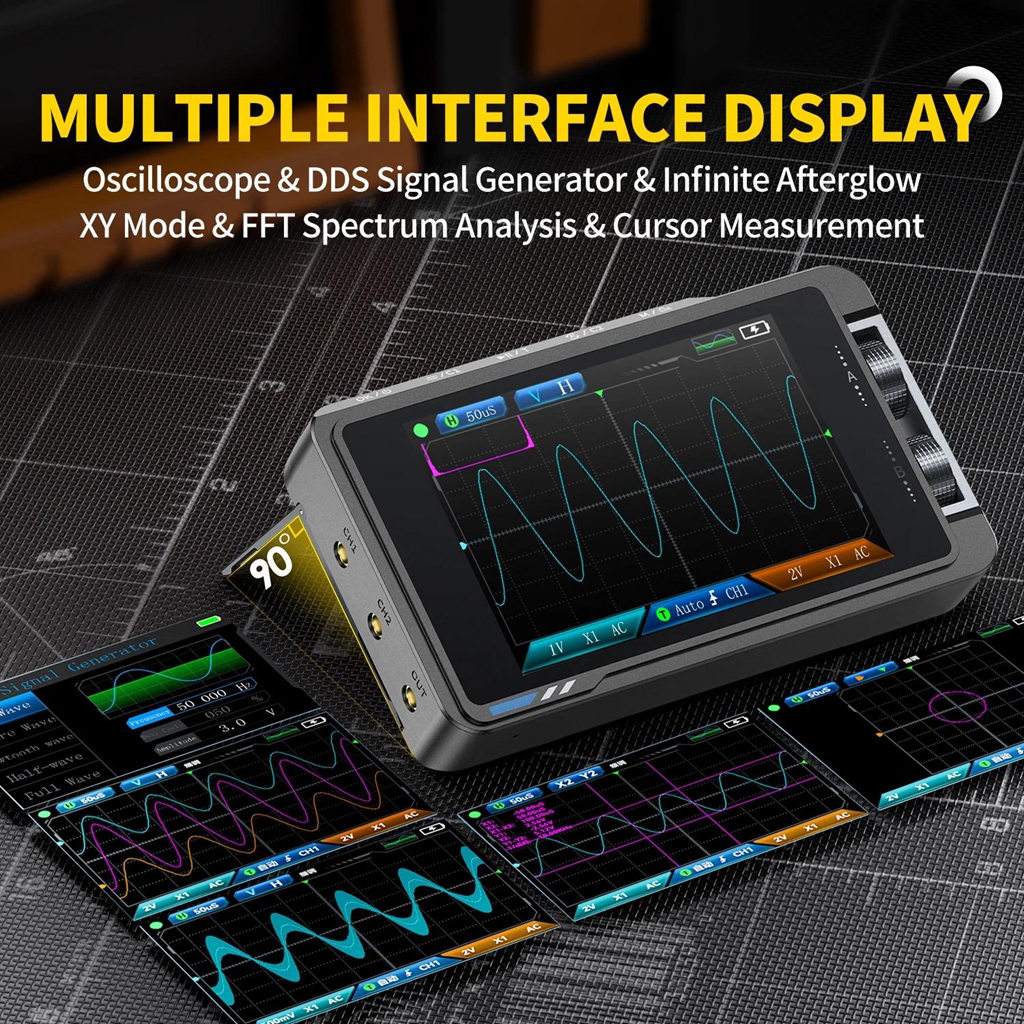

- Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) for clear and intuitive visuals. Its compact and lightweight design makes it ideal for mobile use.
- Long battery life: Powered by a 1500mAh rechargeable lithium battery, it supports up to 4 hours of continuous operation, ensuring long-lasting performance for on-the-go use.
- Ideal for professionals: The FNIRSI-DS215H is designed to provide powerful and flexible features, offering users a portable and efficient tool for maintenance, R&D, and testing tasks.

Specification:
Basic Parameter:
- Display: 3.5-inch IPS high-definition color screen
- Backlight: brightness adjustable
- Power supply: TYPE-C (5V/1A)
- Battery: 1500mAh
- Languages: 中文, English, русский, 日本語, Español, Português, Deutsch, 한국어
- Product size: about 66 x 110 x 19.5mm
- Bare weight: about 138g

Oscilloscope Parameter:

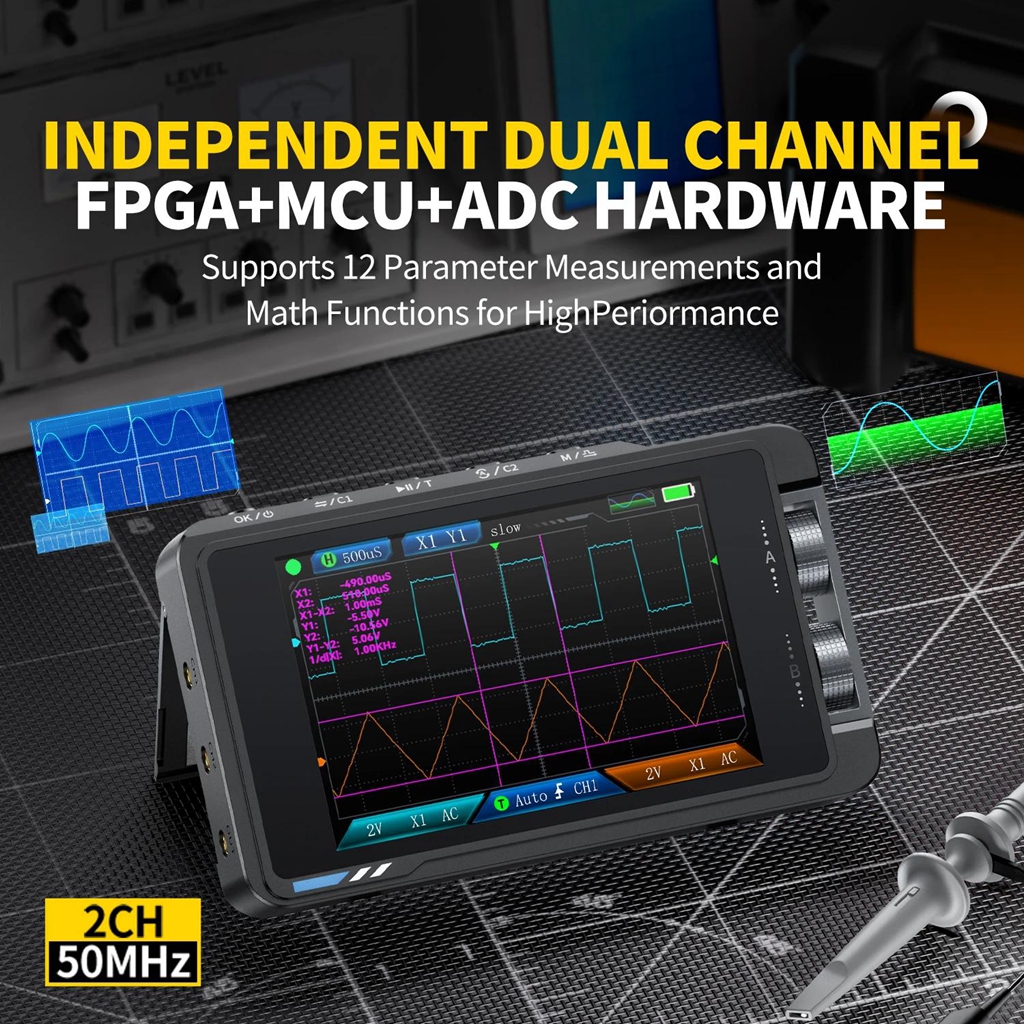

- Channel: dual channel
- Bandwidth: 50MHz
- Real-time sampling rate: 250MSa/s
- Storage space: 14M
- Time base range: 20ns/div - 20s/div
- Vertical sensitivity: 10mV/div - 10V/div
- Waveform display mode: YT/XY/scroll
- Vertical resolution: 8 bits
- Input impedance: 1ΜΩ
- Measurement data: cycle, freq, Vpp, max, min, avg, RMS, amp, duty cycle, pulse width
- Probe attenuation factor: 1x / 10x
- Input coupling: AC / DC
- Trigger type: rising edge / falling edge
- Peak voltage: ±400V
- Trigger level range: 8 grids (positive and negative)
- Trigger mode: Auto / Normal / Single

Signal Generator:
- Output waveform: Supports multiple waveform outputs
- Waveform frequency: 0-50kHz
- Square wave duty cycle: 0-100%
- Waveform amplitude: 0.1V - 3.0V

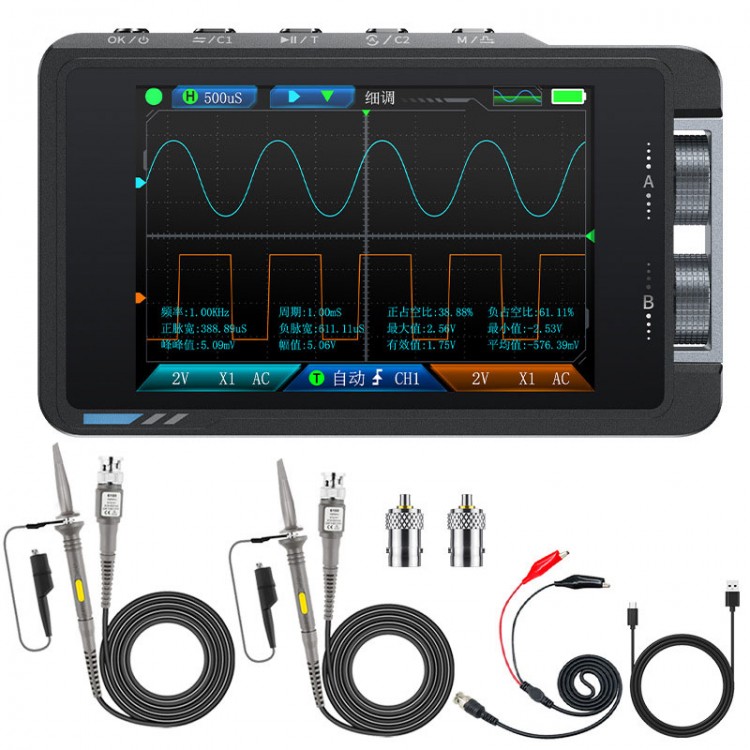

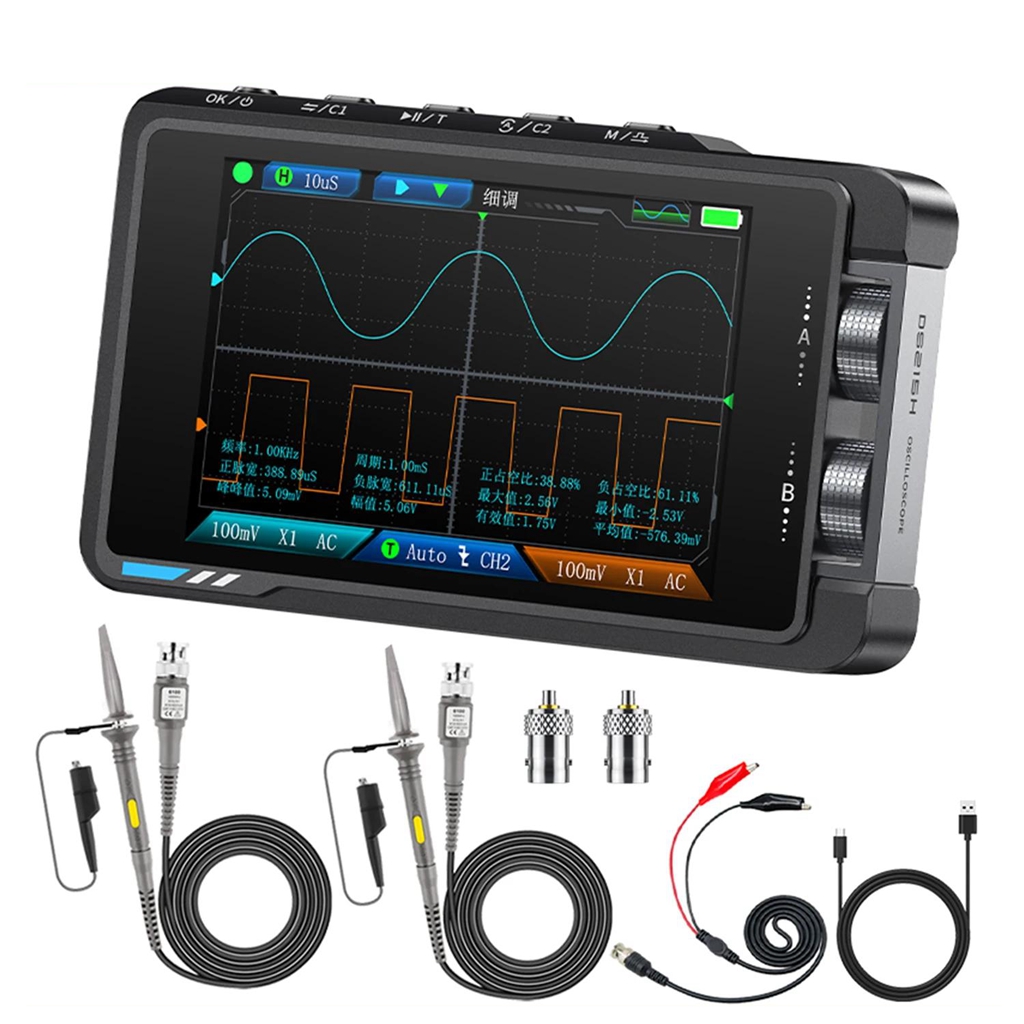

Package Included:
- 1 x Host
- 2 x P6100 High Voltage Probes
- 2 x Adapters
- 1 x Alligator Clip Probe
- 1 x Charging Cable
- 1 x User Manual
