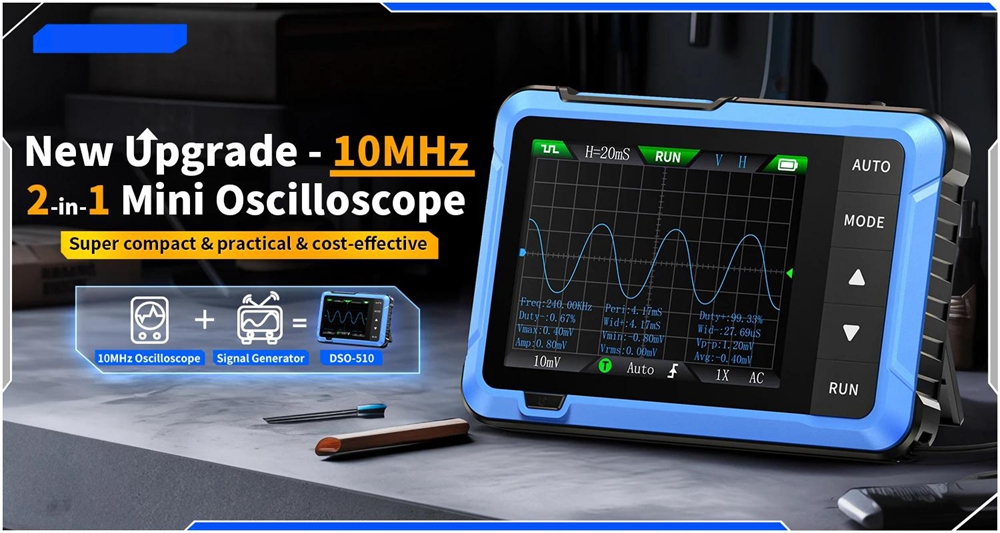

FNIRSI DSO510 10MHz Handheld Portable Digital Oscillator 48MS/s Sampling Rate High Performance Signal Generator

FNIRSI DSO510 10MHz Handheld Portable Digital Oscillator 48MS/s Sampling Rate High Performance Signal Generator

Description:
- The DSO510 is a powerful oscilloscope, offering advanced performance suitable for complex signal testing, research, and development. This model is an excellent choice for professionals handling intricate repairs or education environments requiring precise measurements.
- Real-time sampling rate: 48MS/s
- Bandwidth: 10MHz

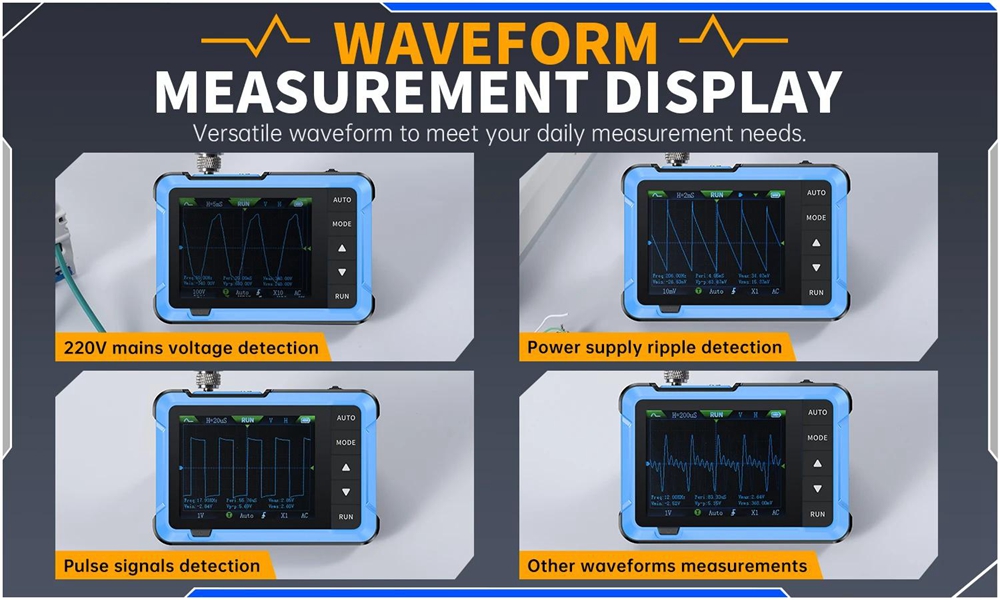

- Signal type support: periodic analog signals and non-periodic digital signals
- Trigger modes: single, normal, auto
- Voltage measurement range: ±400V
- Signal generator: 50KHz

Key Features:

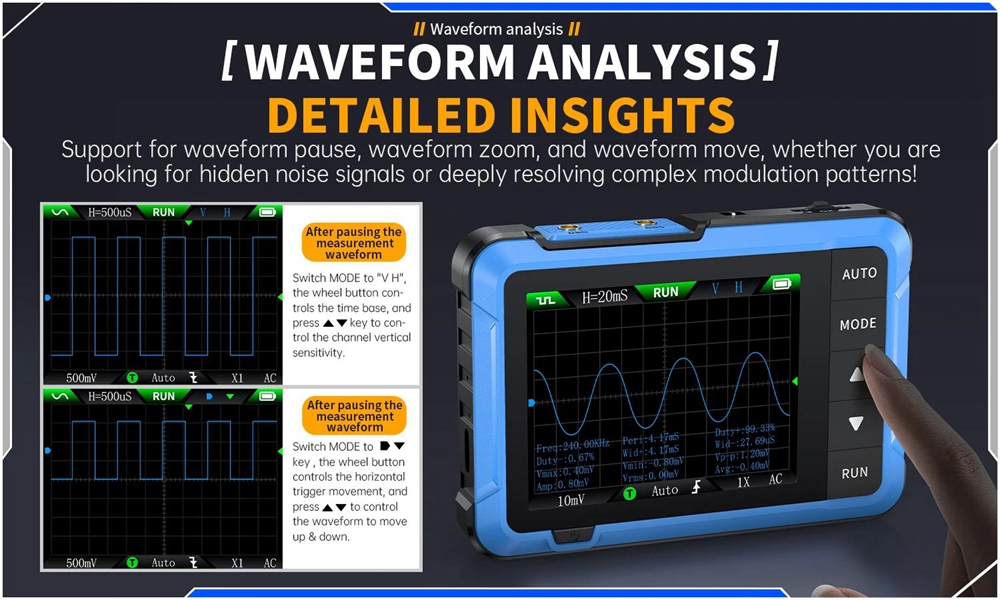

- One-click AUTO mode: Displays waveforms instantly without complex adjustments.
- HD LCD screen: 2.8-inch display with 320x240 resolution.
- Battery life: Built-in 1000mAh lithium battery supports up to 4 hours of continuous use.
- Recommended use: Ideal for advanced repairs, development, and education projects.

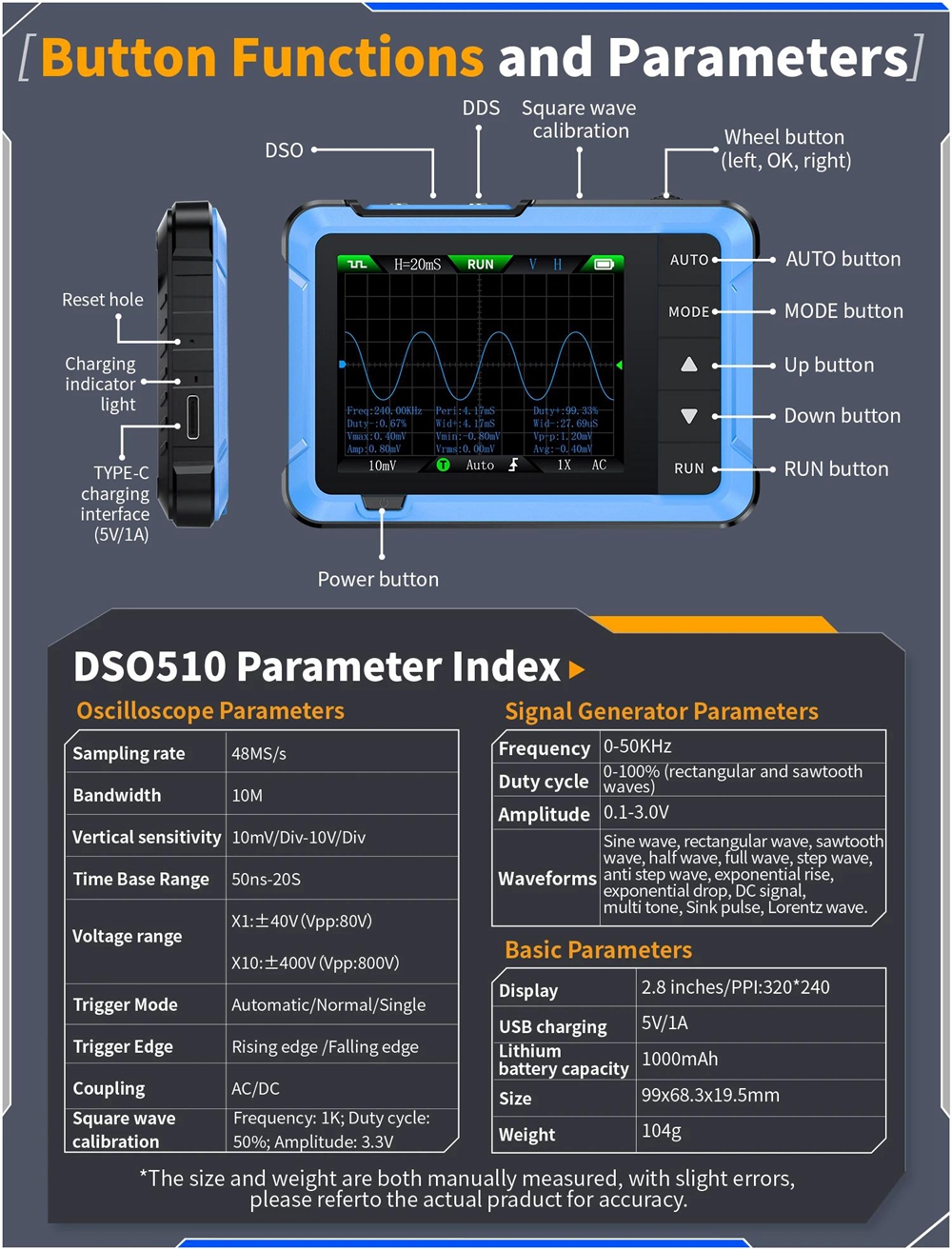

Mini Oscilloscope:
- Channel: 1
- Sampling rate: 48MSa/s
- Vertical sensitivity: 10mV/Div-20V/Div (Progress according to the 1-2-5 way)
- Time base range: 50ns/Div-20s/Div (Progress according to the 1-2-5 way)
- Voltage range: X1: ±40V (Vpp: 80V); X10: ±400V (Vpp: 800V)
- Trigger method: Auto / Normal / Single
- Coupling method: AC/DC

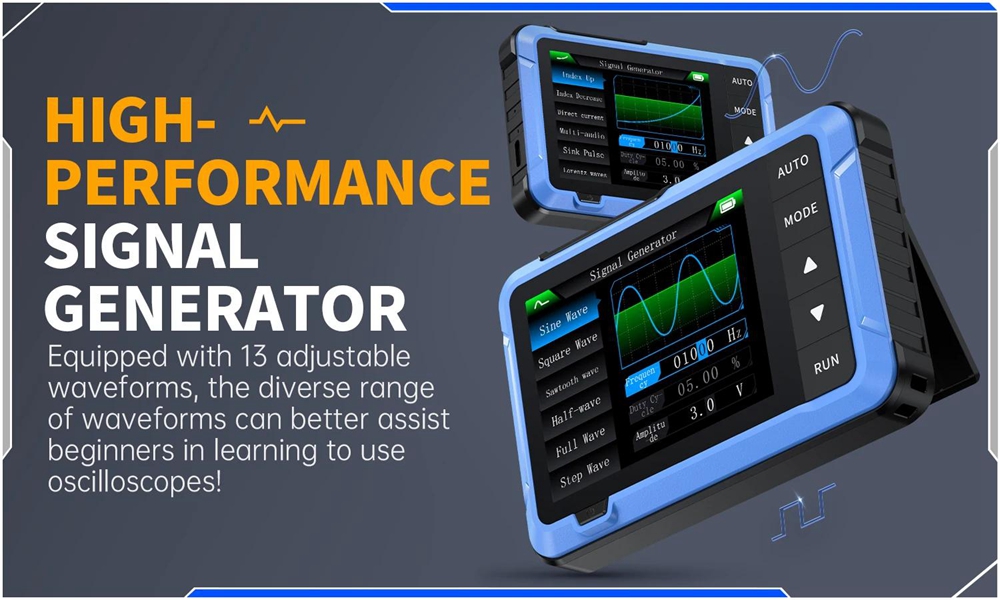

Signal Generator:
- Frequency: 0 - 50KHz
- Duty cycle: 0-100% (rectangular and sawtooth waves)
- Amplitude: 0.1 - 3.0V
- Waveforms: sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.

Other Parameters:
- Display: 2.8 inches/PPI: 320 x 240
- USB charging: 5V/1A
- Lithium battery capacity: 1000mAh
- Size: 99 x 68.3 x 19.5mm
- Weight: 104g

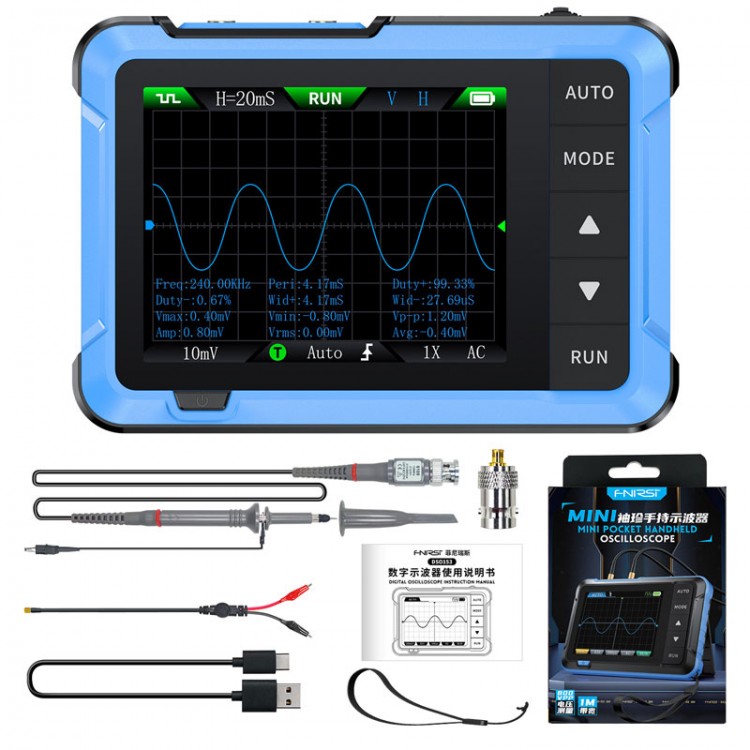

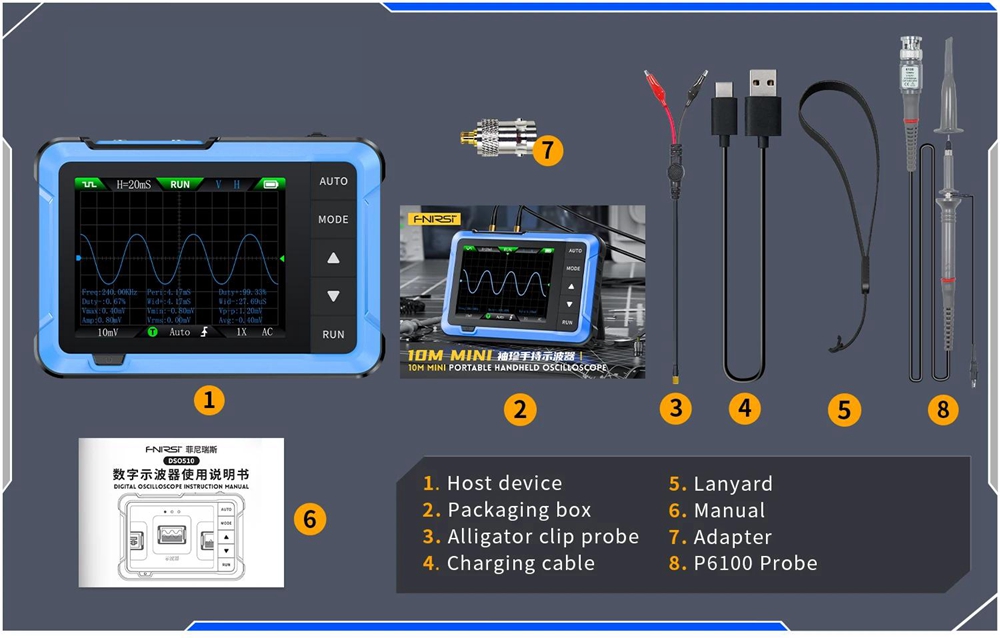

Package Included:
- 1 x Host
- 1 x P6100 High Voltage Probe
- 1 x Adapter
- 1 x Alligator Clip Probe
- 1 x Charging Cable
- 1 x Lanyard
- 1 x User Manual
